1. Well theres 3 welders and a plasma cutter to fit in one place so they can all be used with the minimum of fuss air and power for other tools avalable from trolly, Also thinking of a Plasma table on the side, May be as an addon or folding, Gona use it and see how things pan out first?

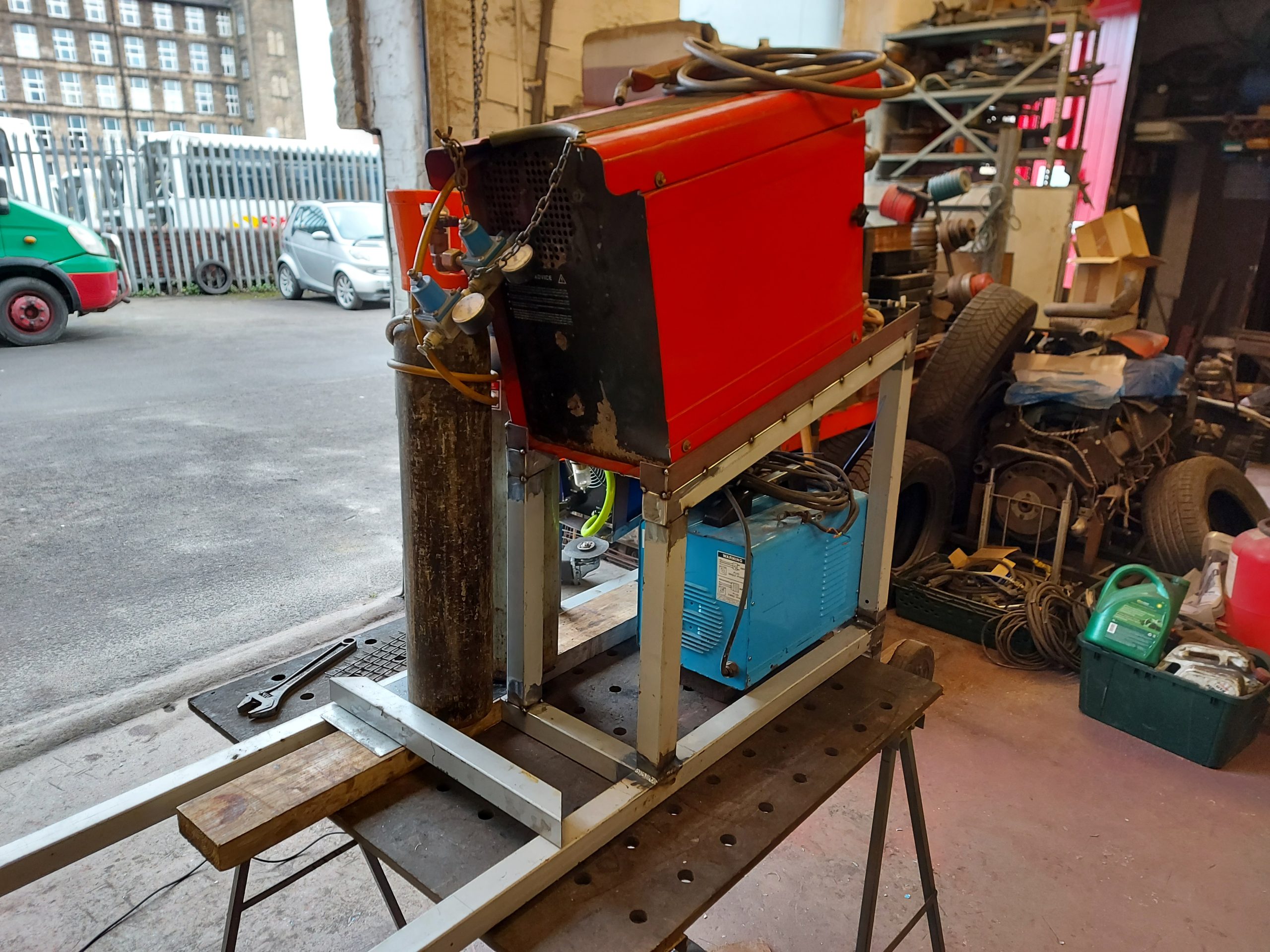

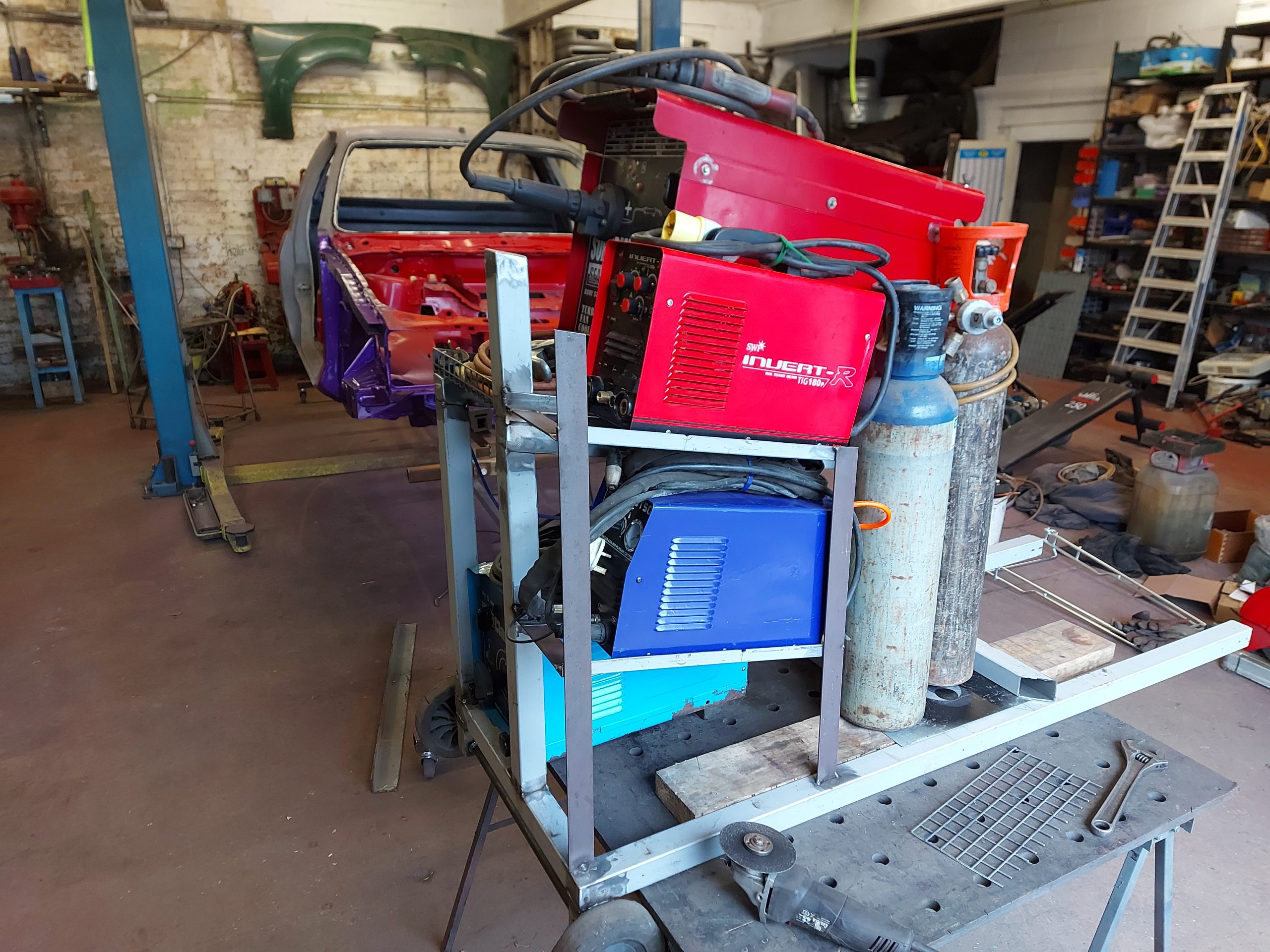

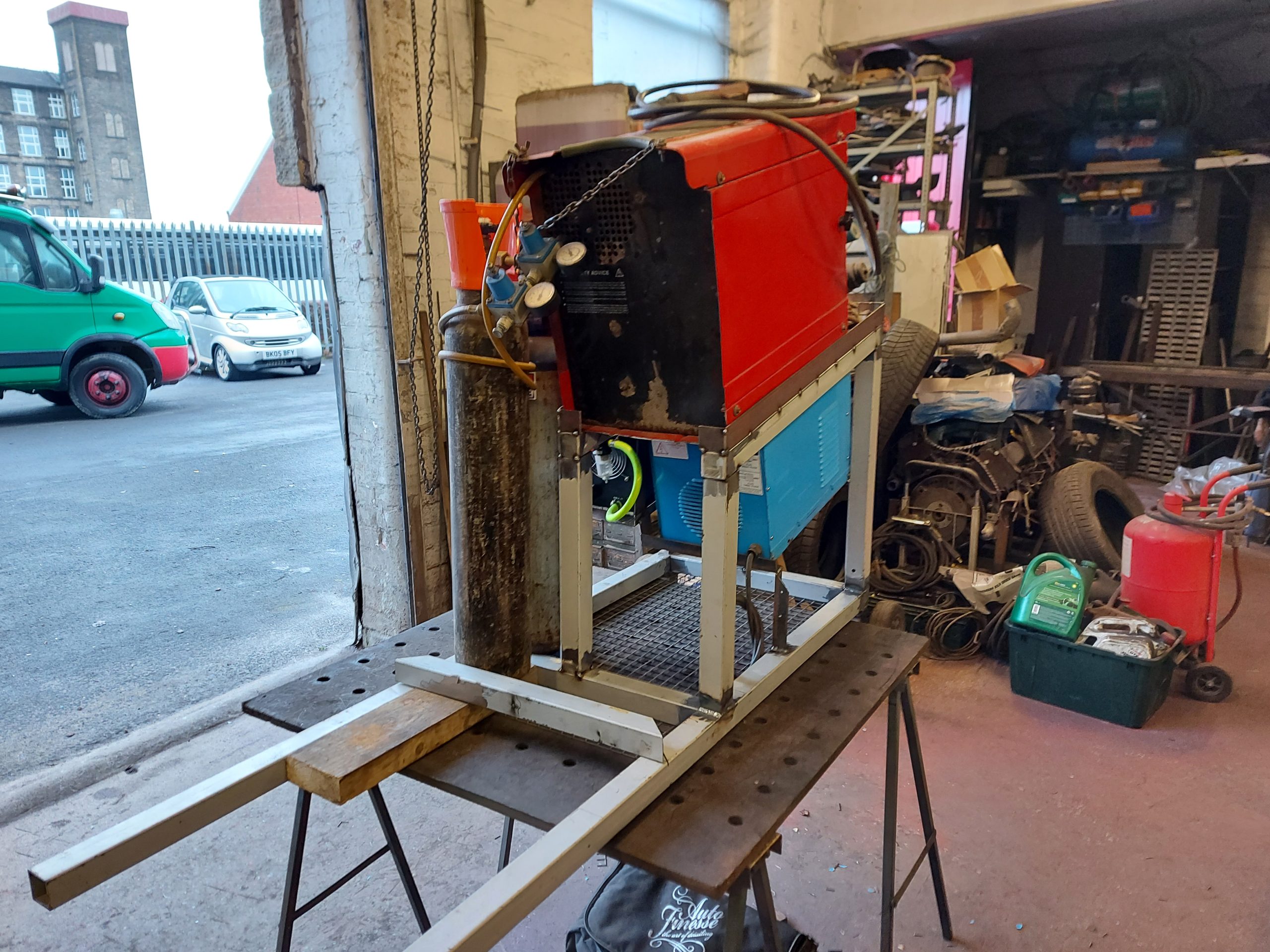

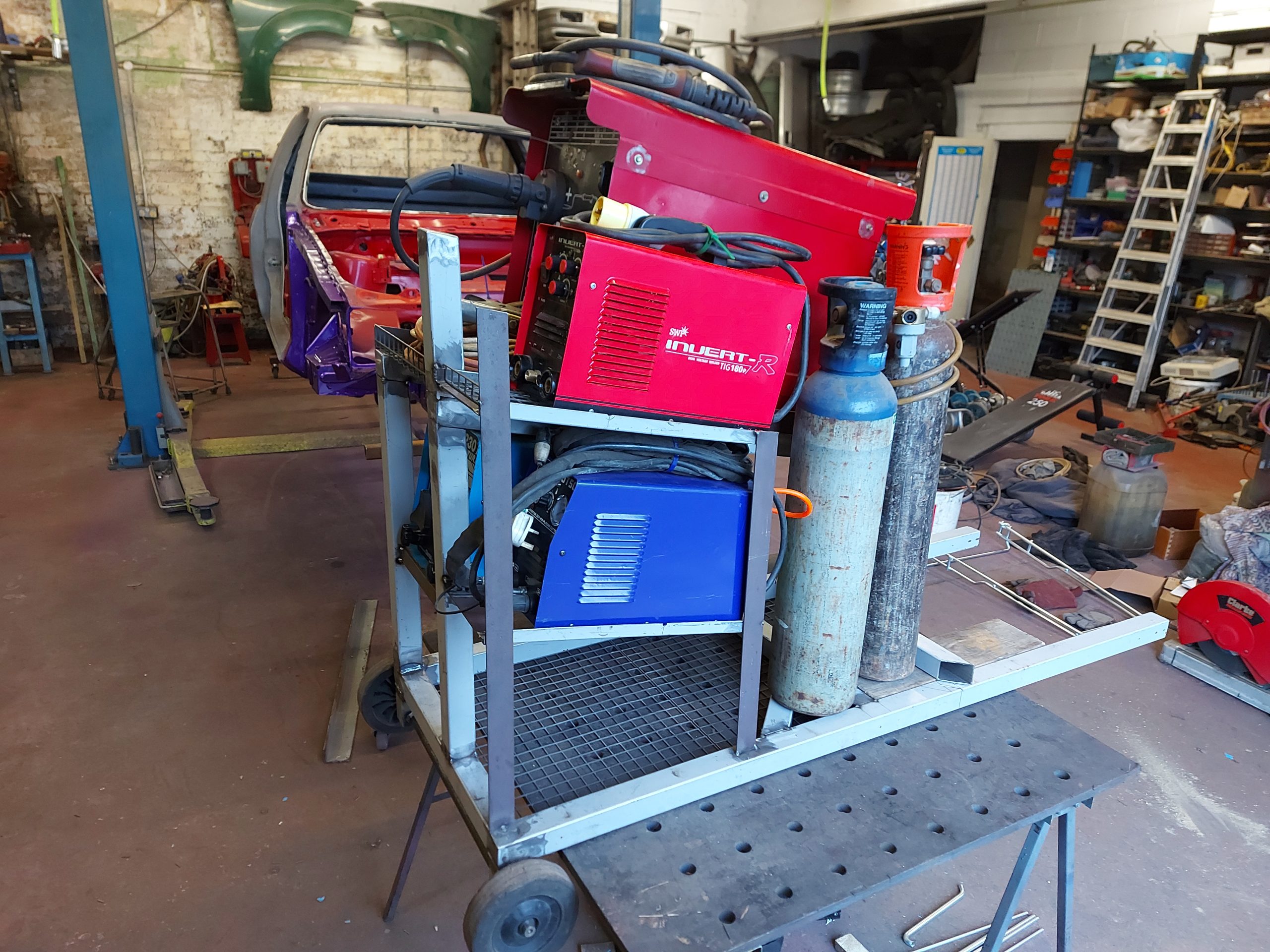

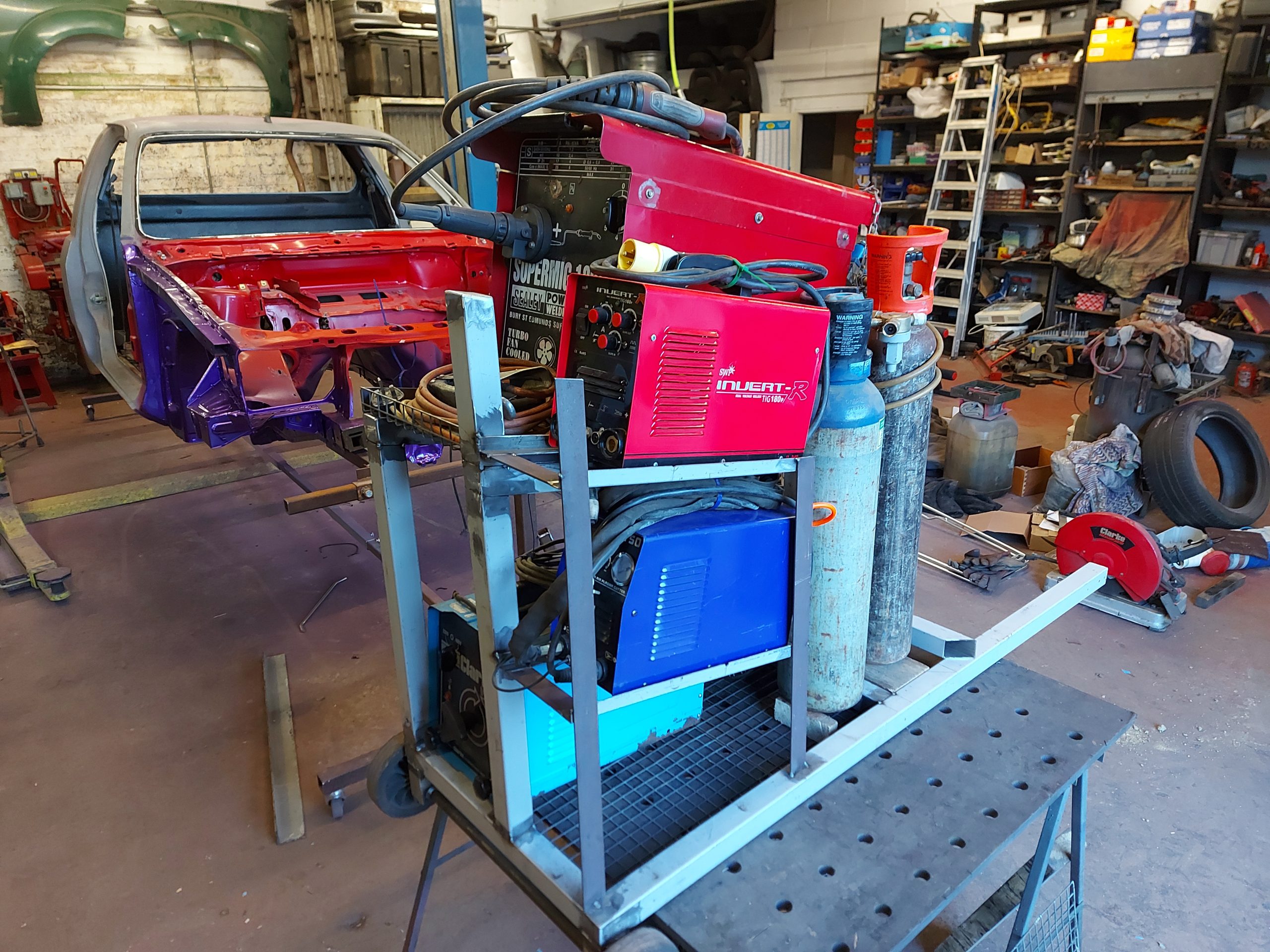

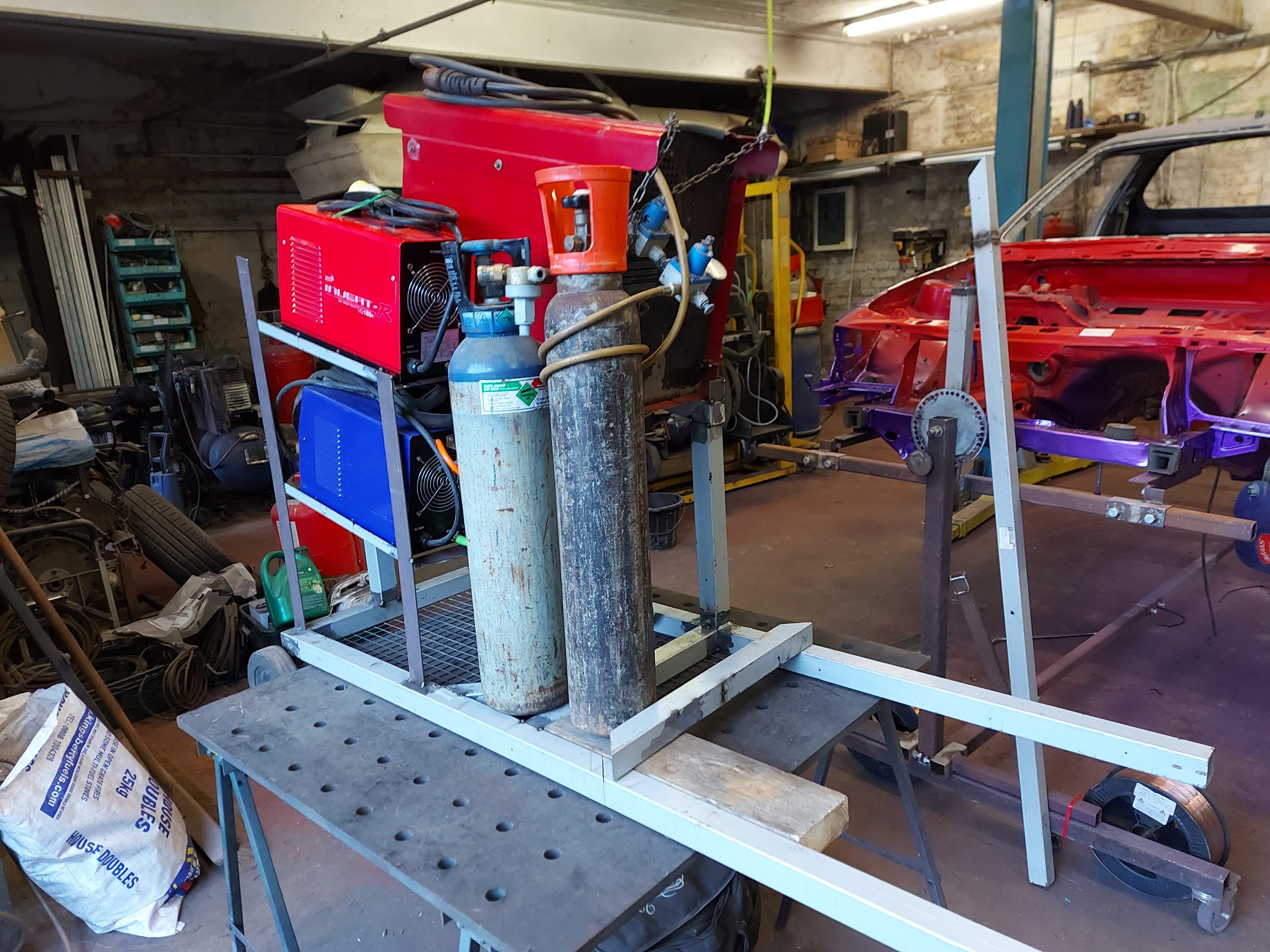

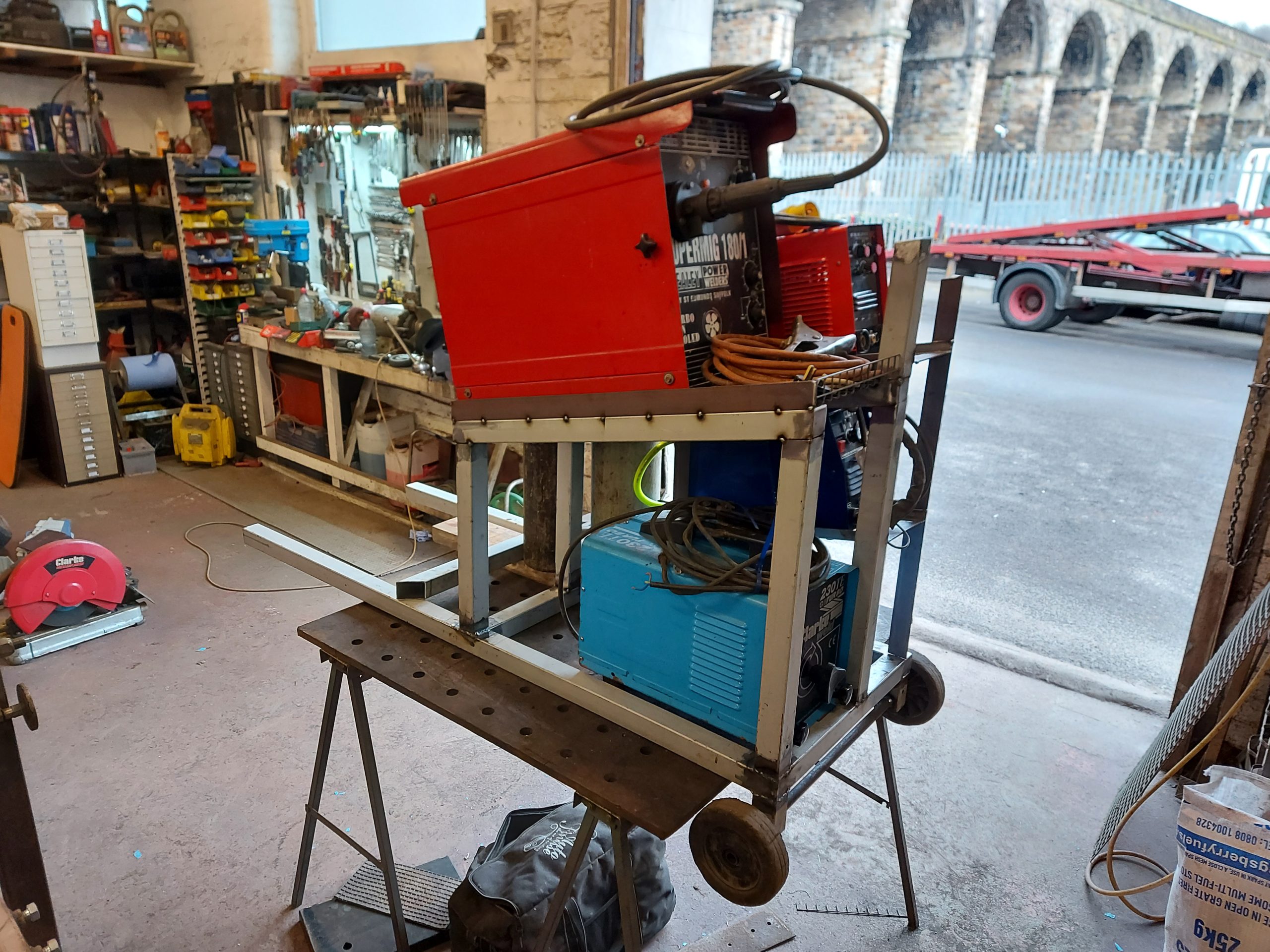

   First Mock up

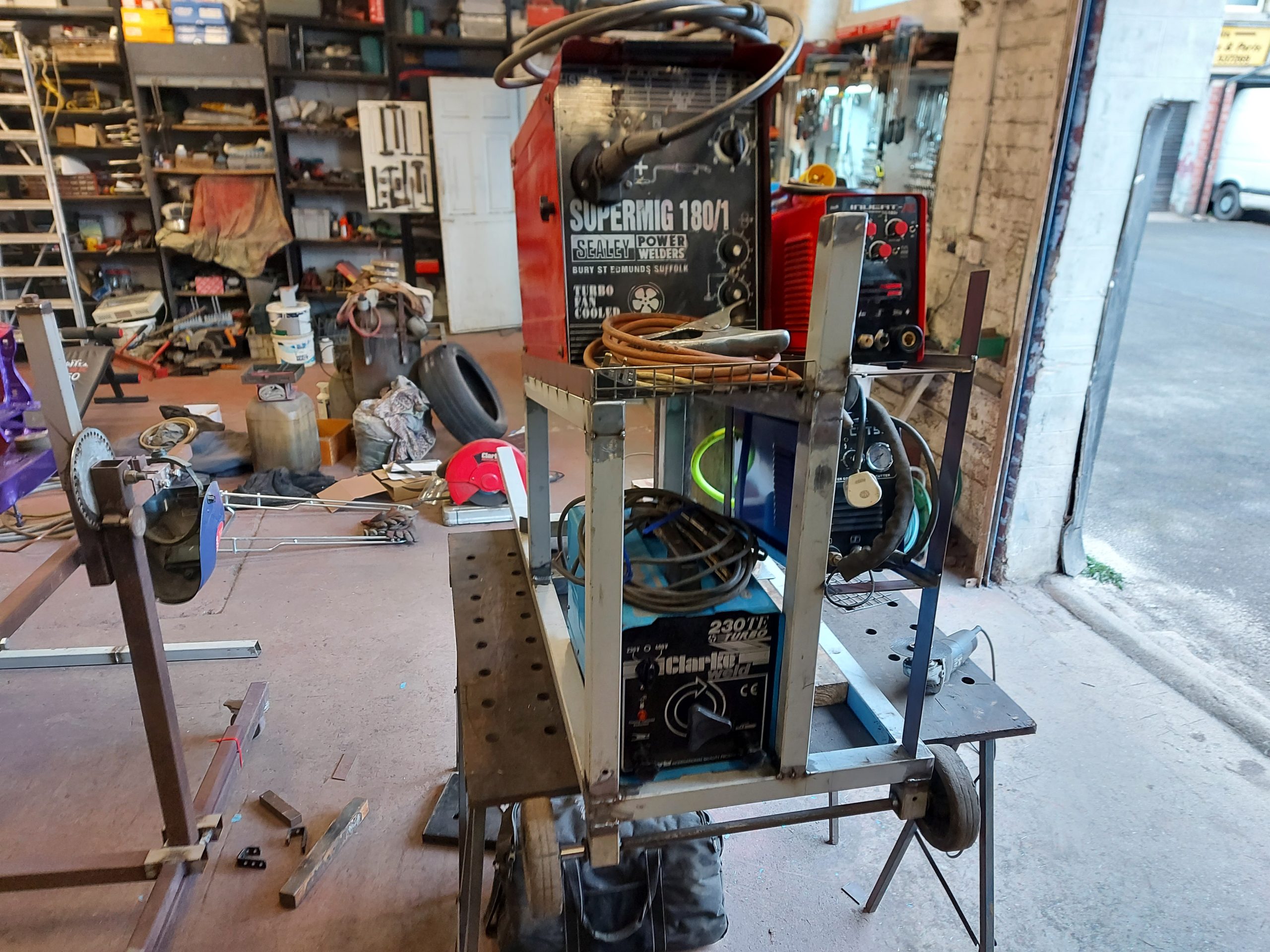

   Added some welded wire netting for storage,

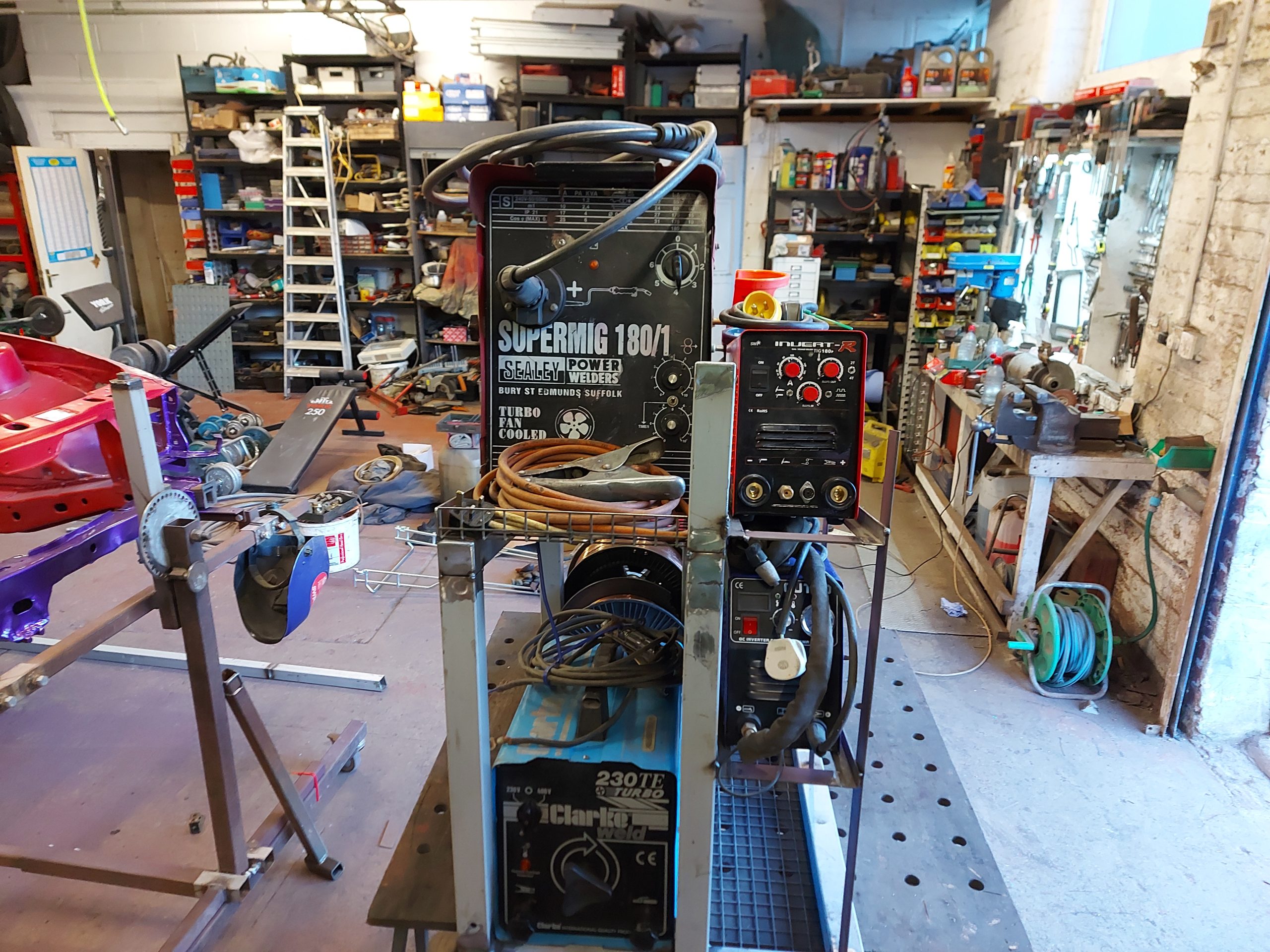

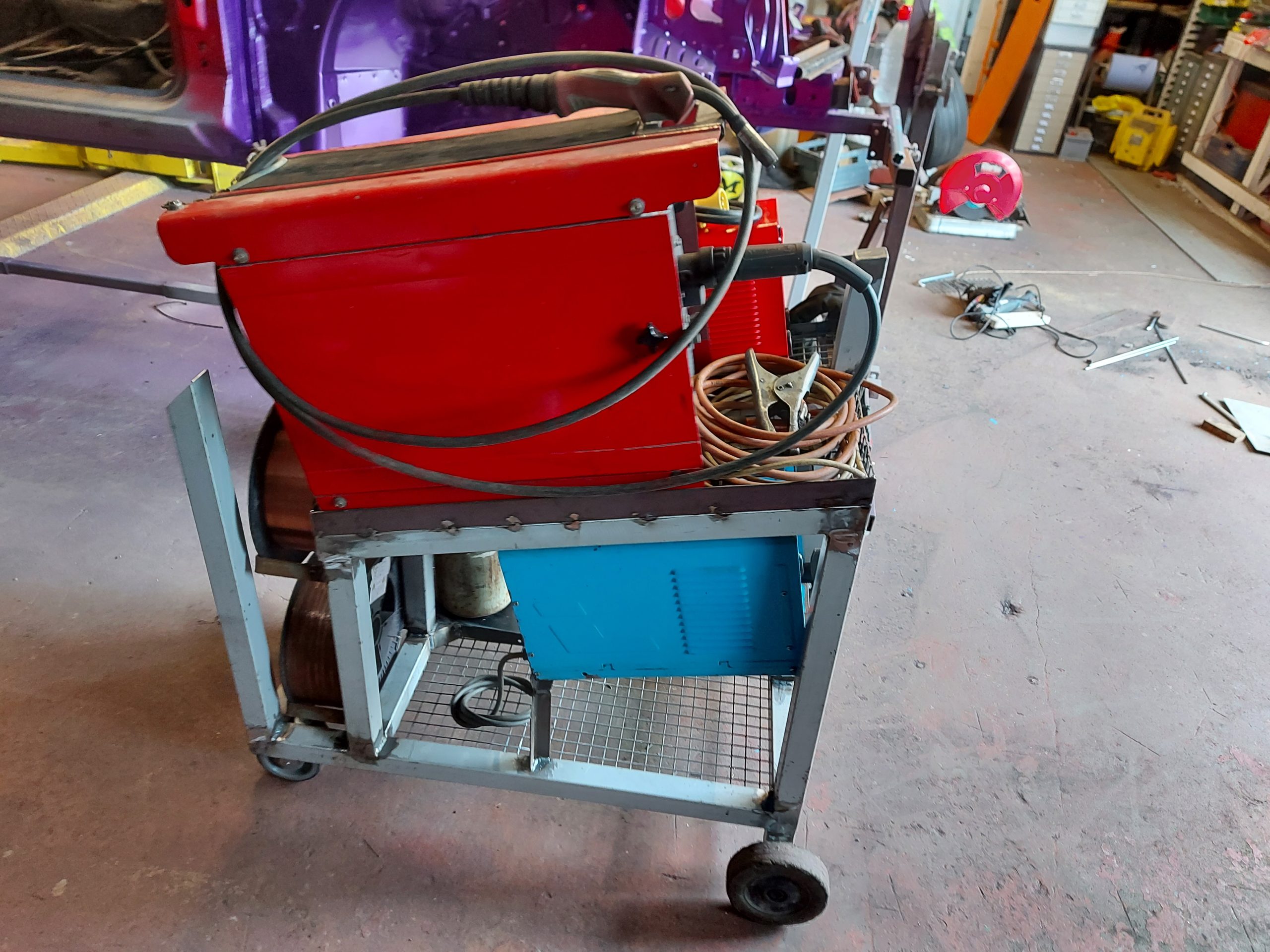

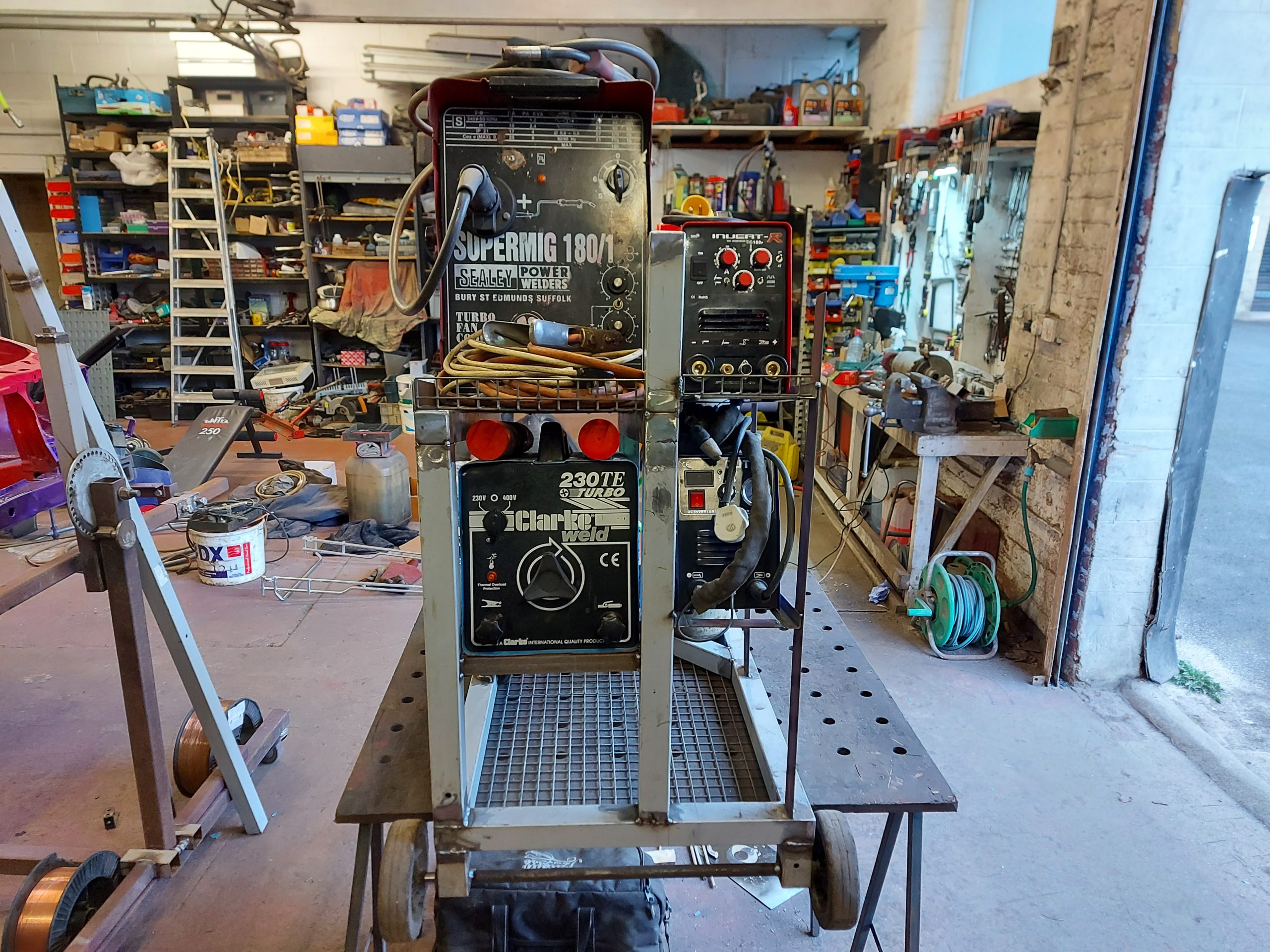

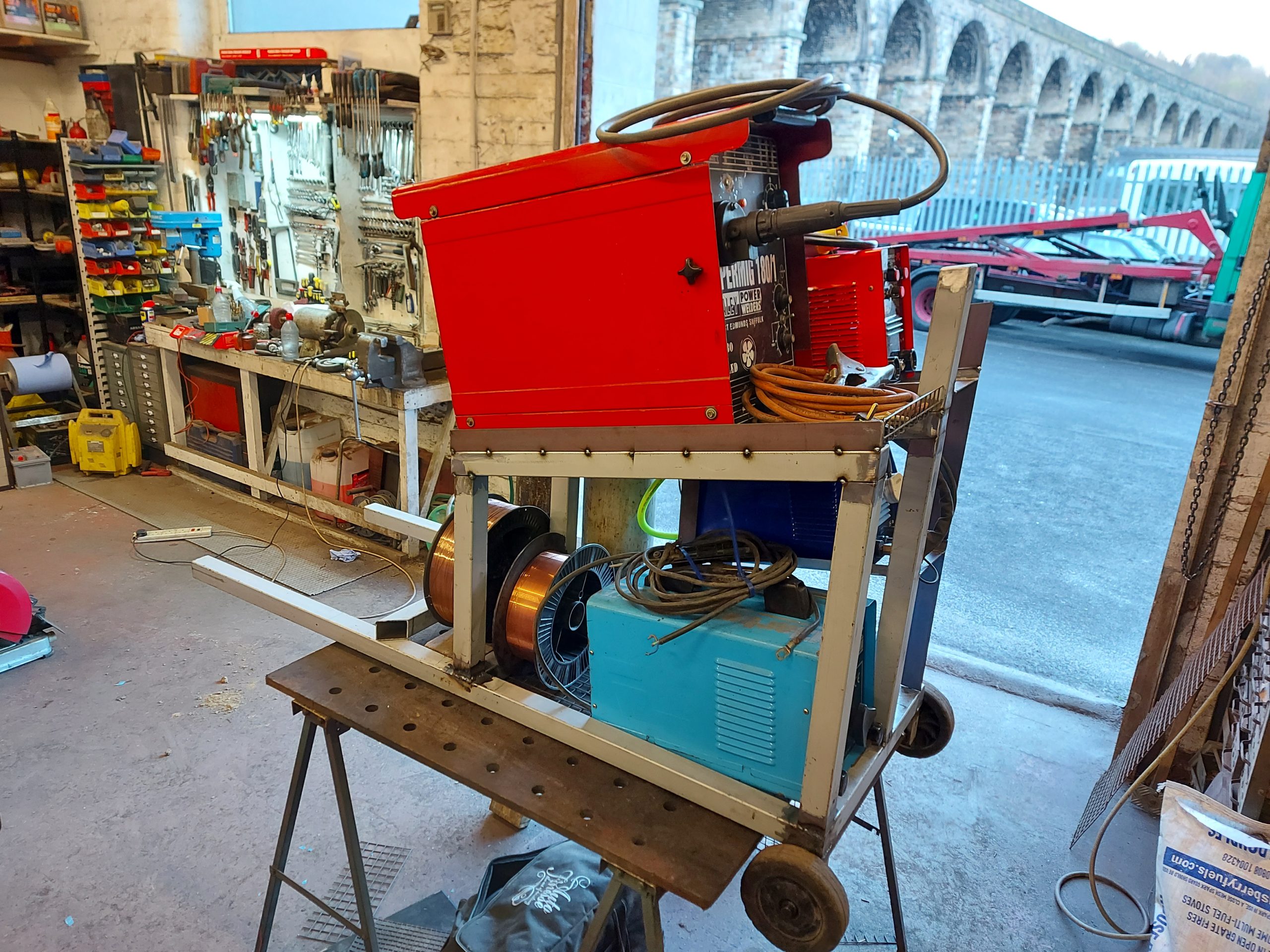

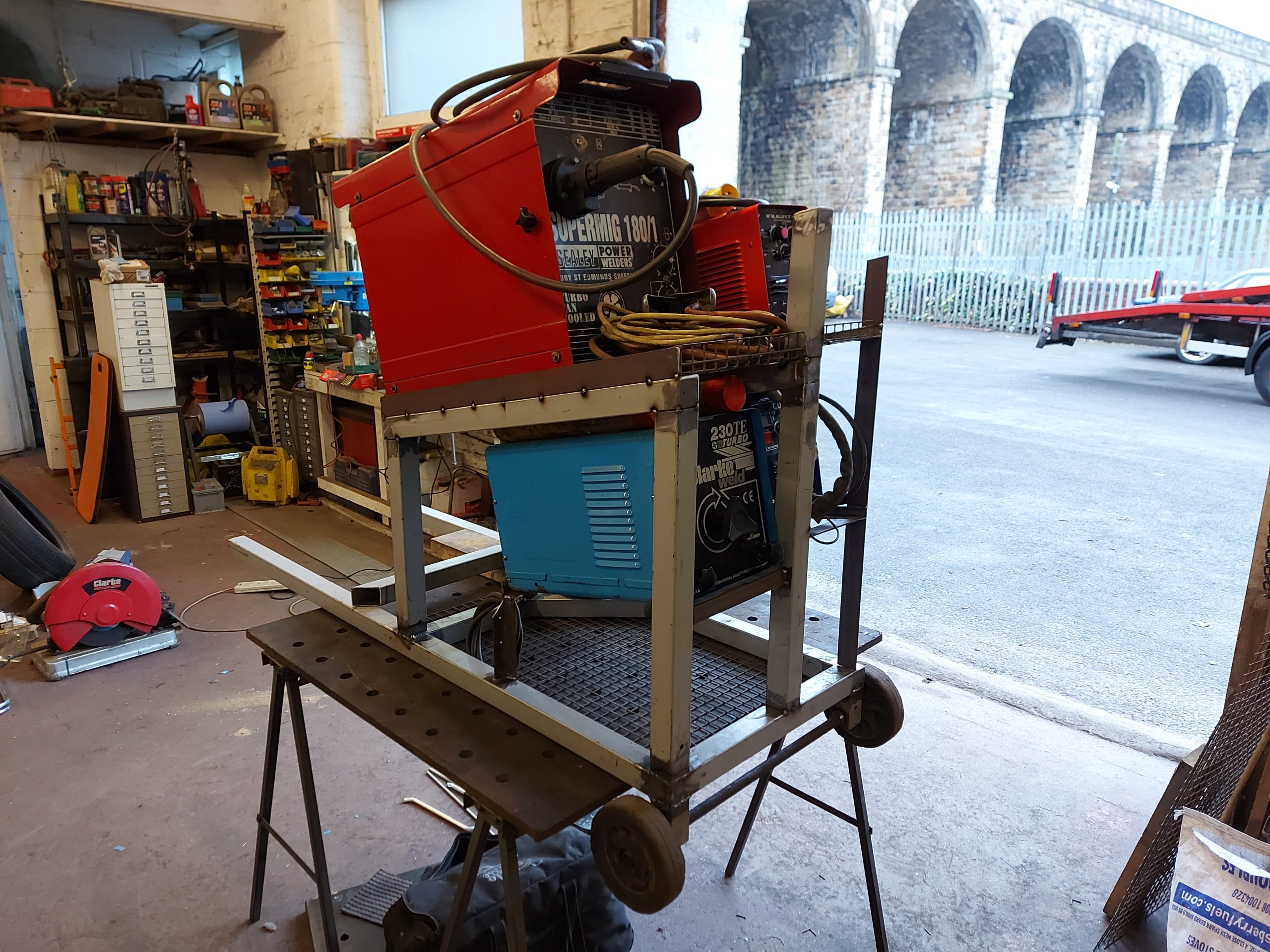

   More thinking about storage moved 230TE up to clear bottom shelf, Nice bit of storage above 230TE

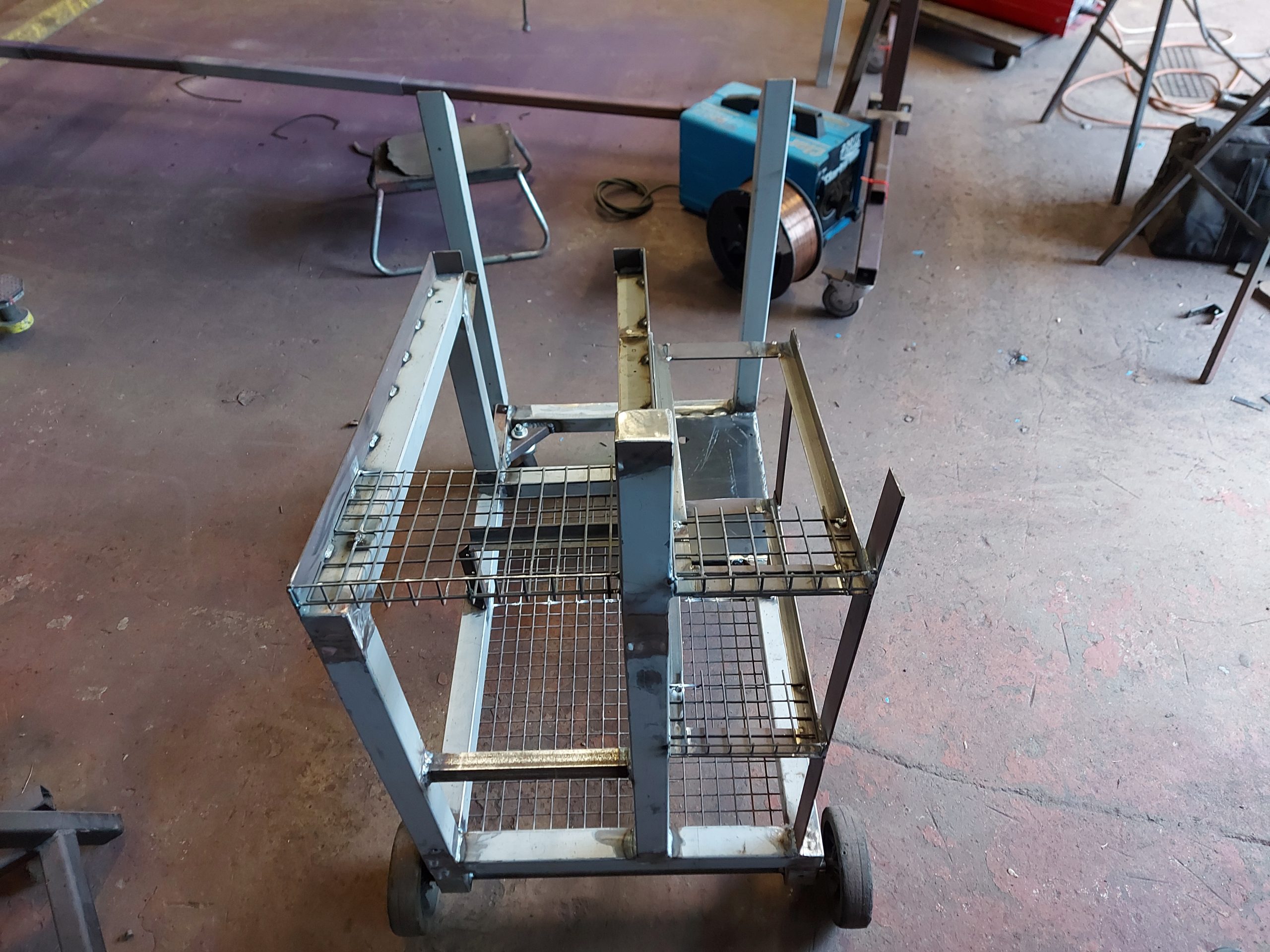

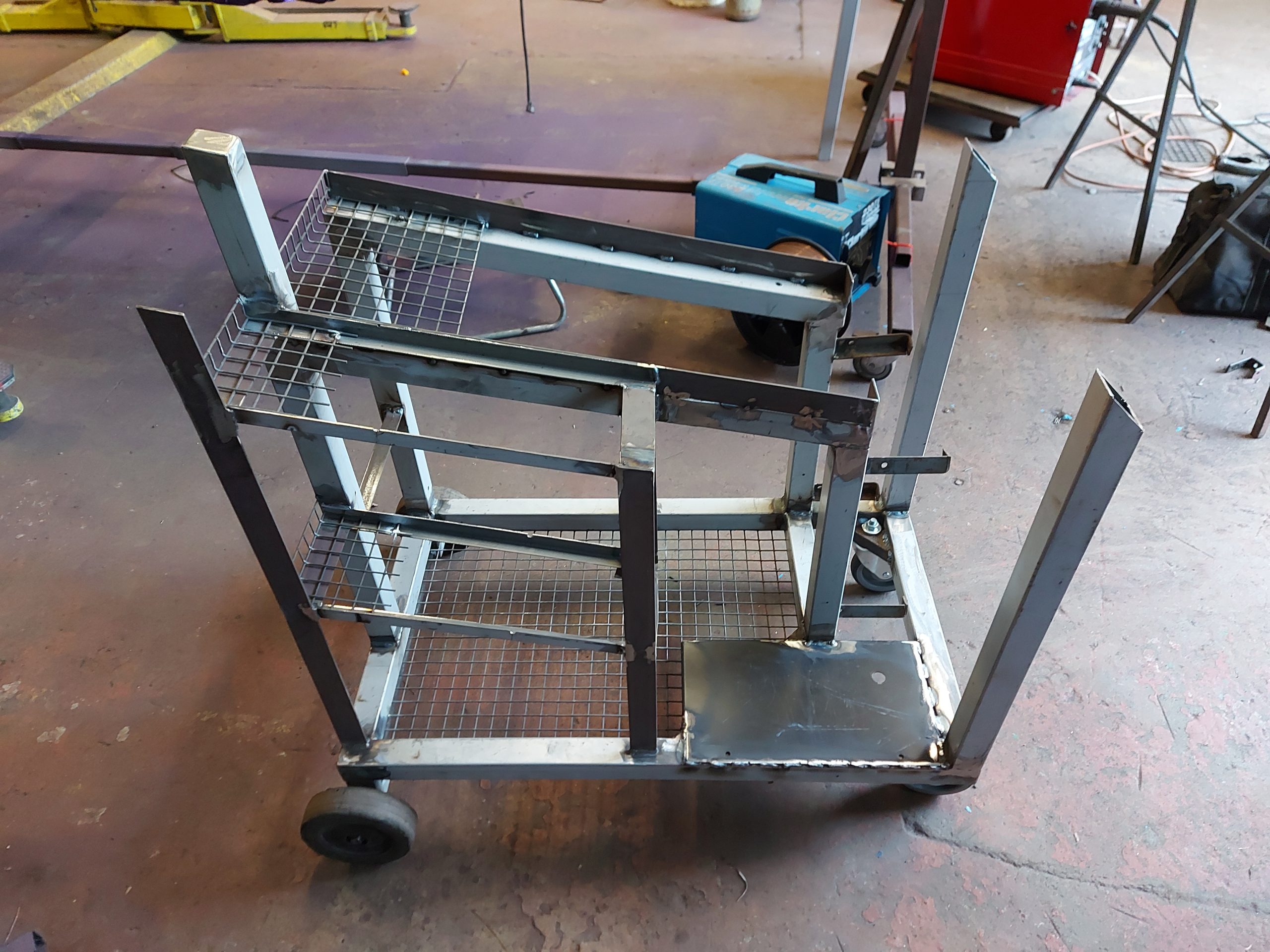

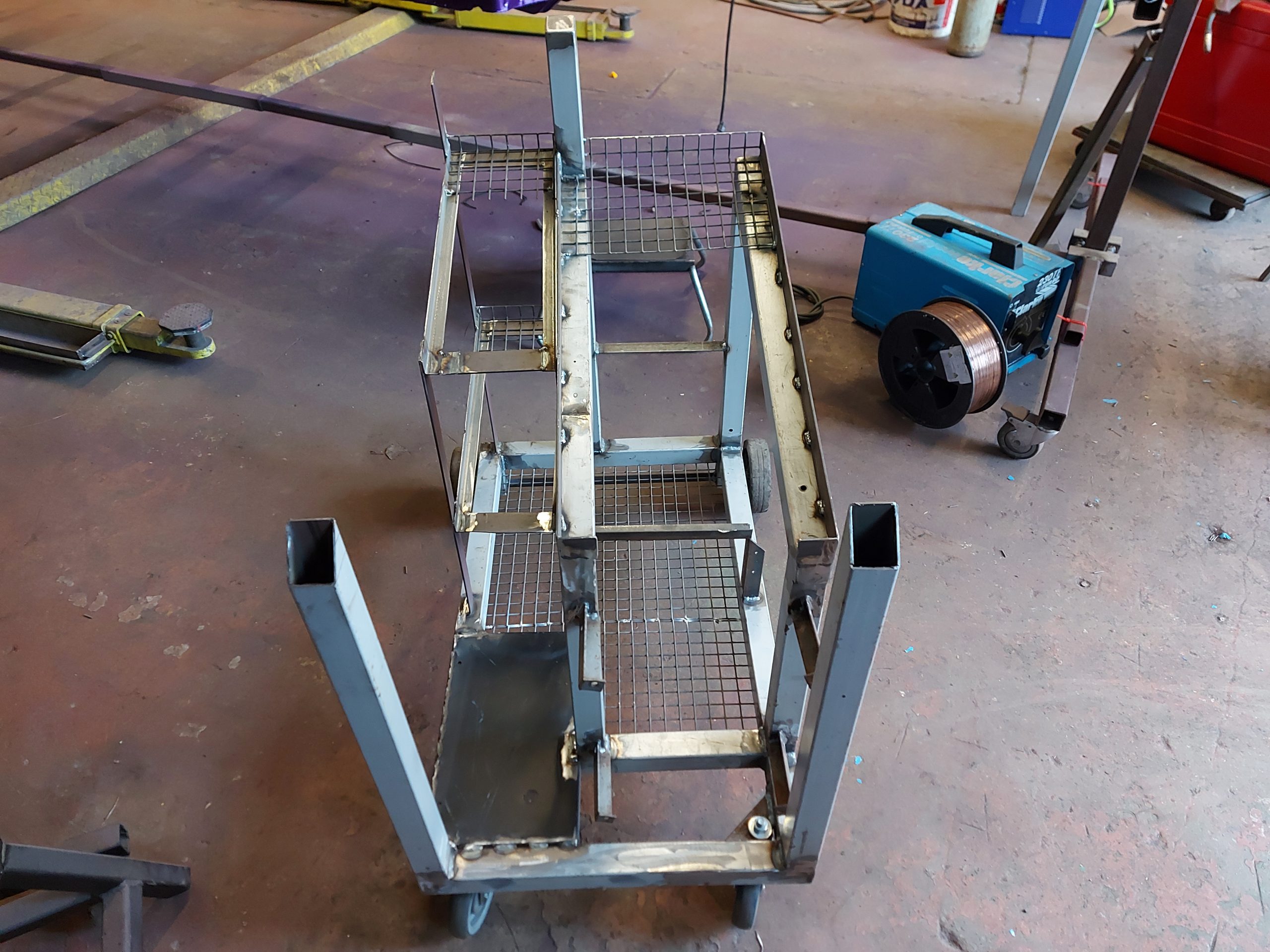

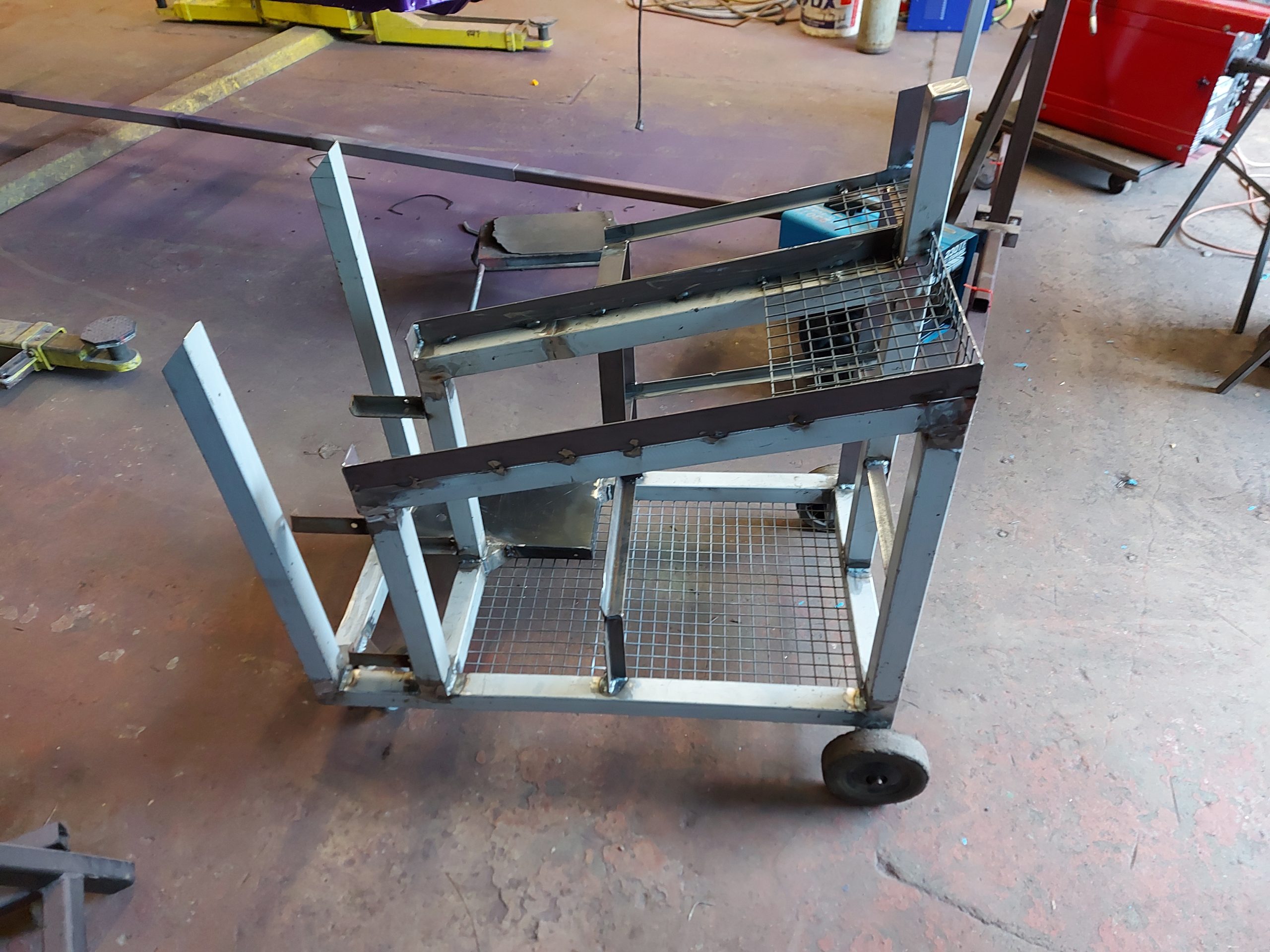

   A quick look at the empty trolly




   All caster on and on the floor, 230TE needs a 16A supply so thats minimum supply for trolly,

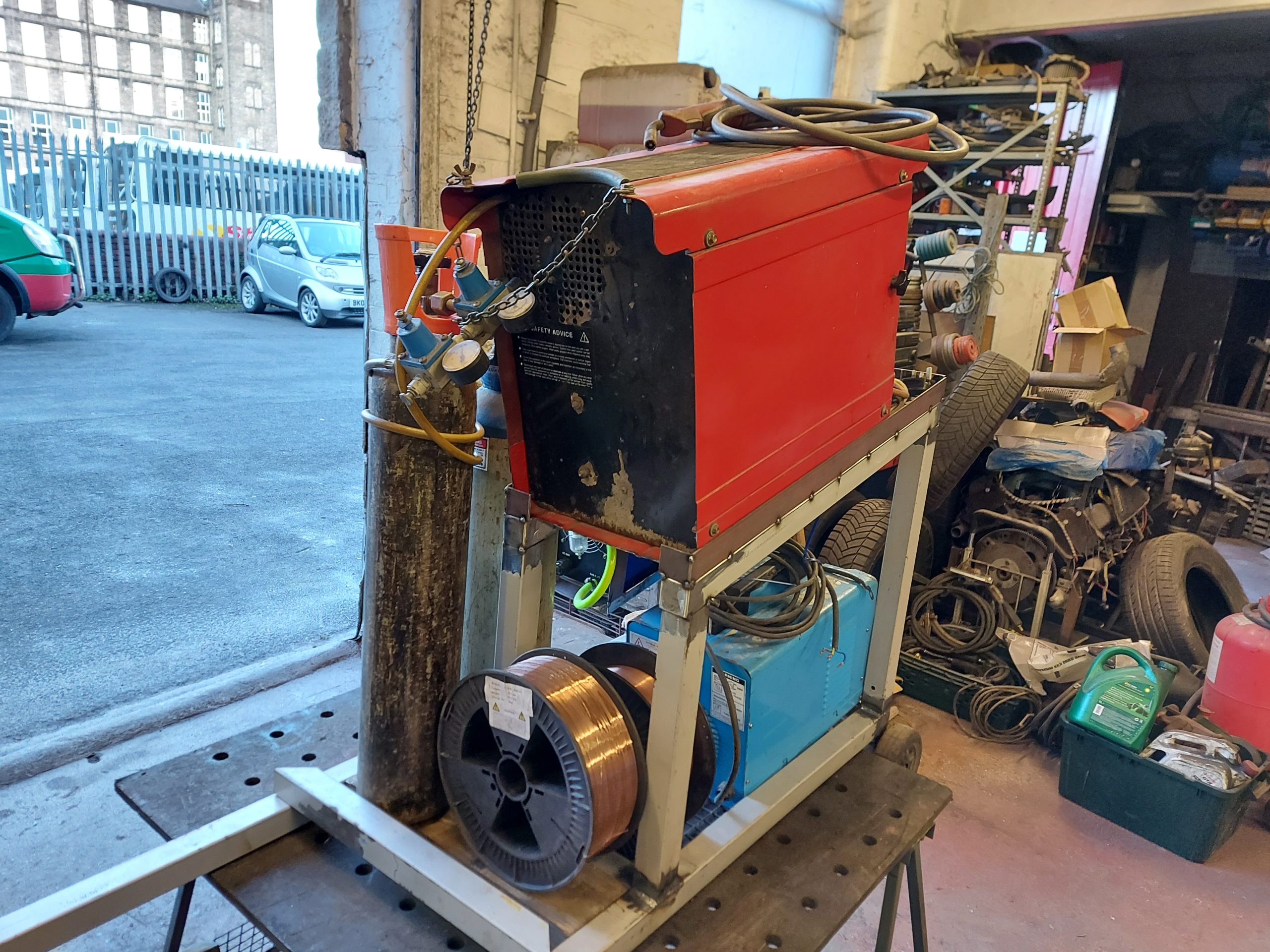

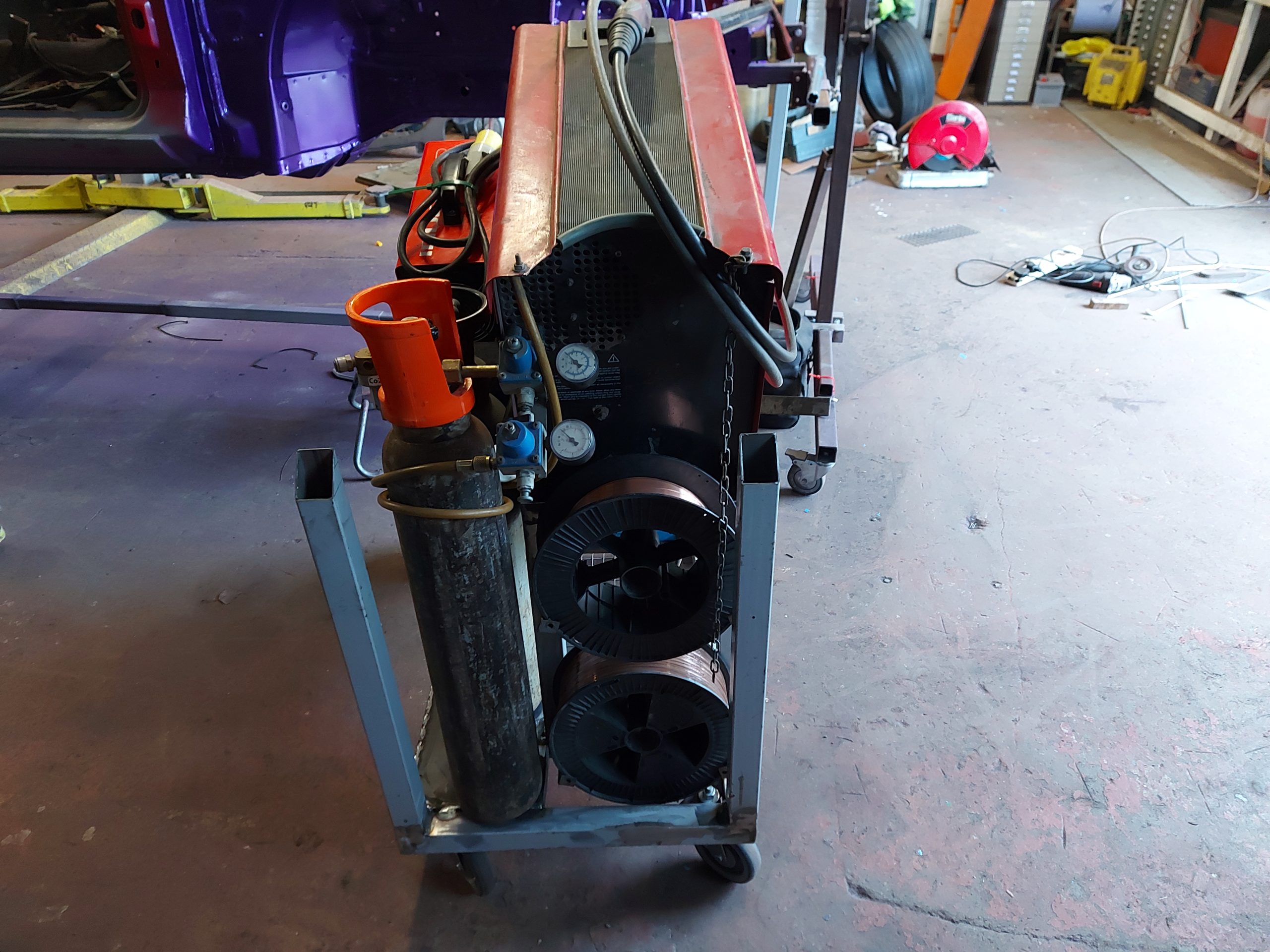

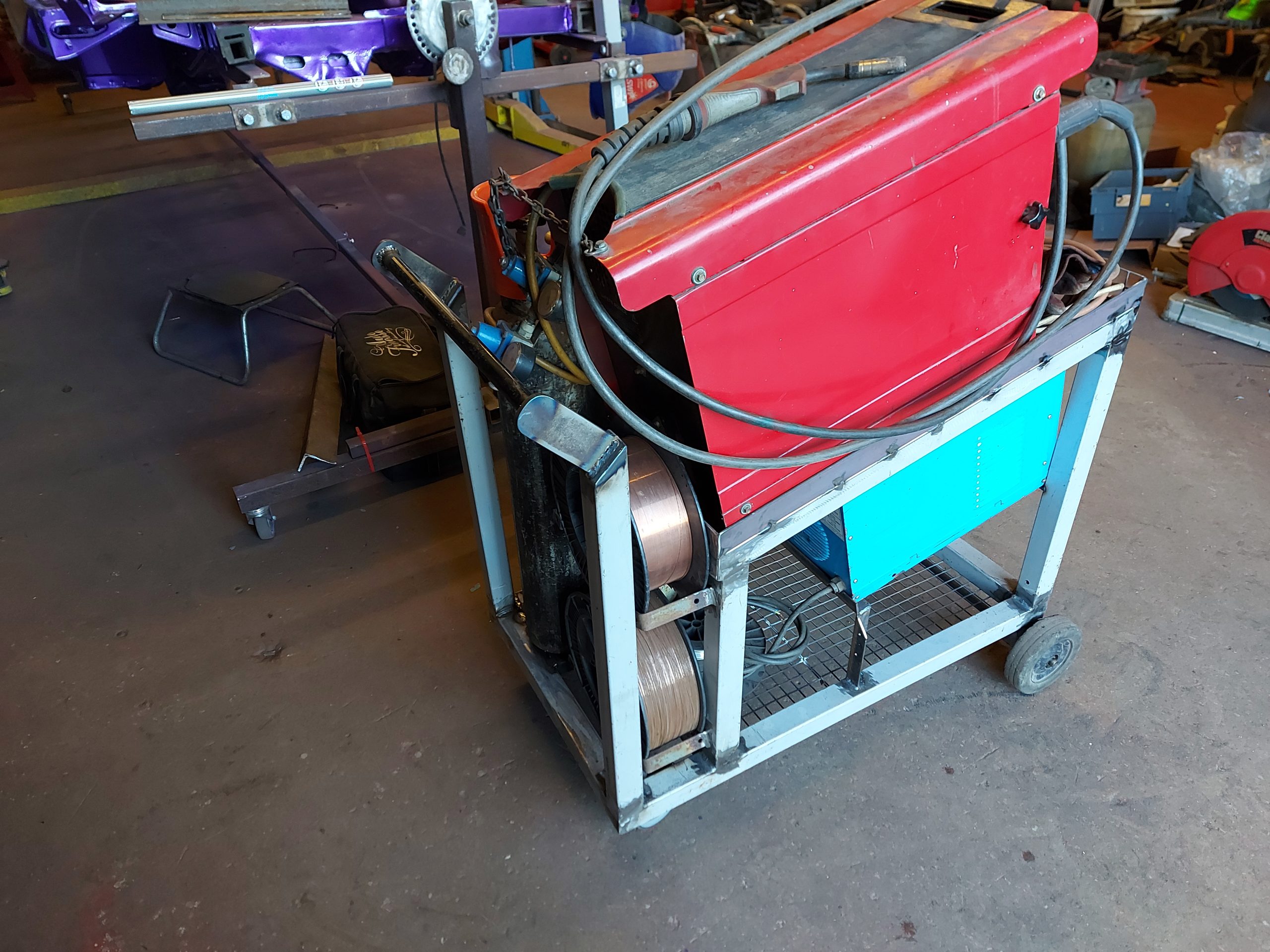

   Mig wire spares mounted

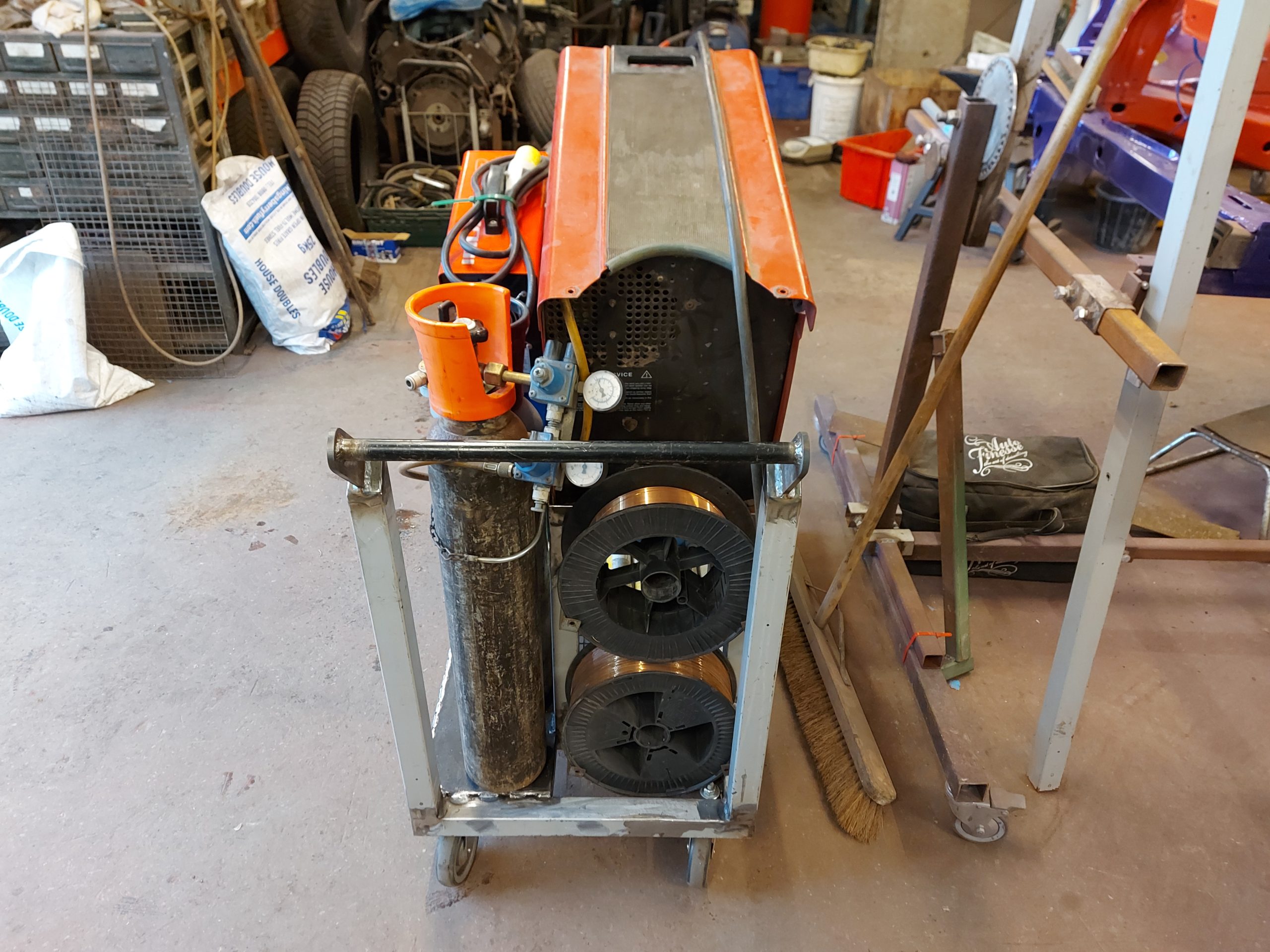

   Handle finished

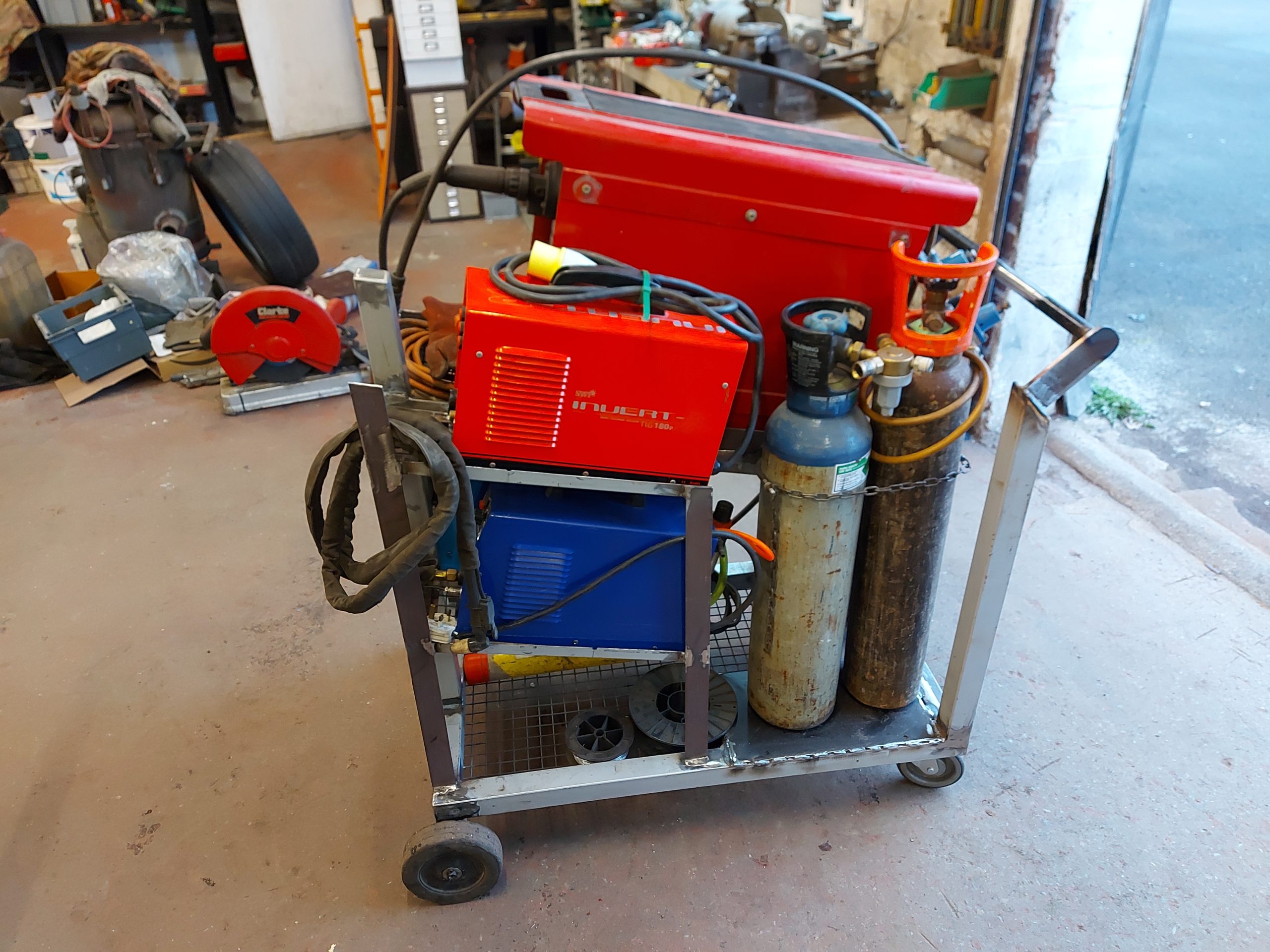

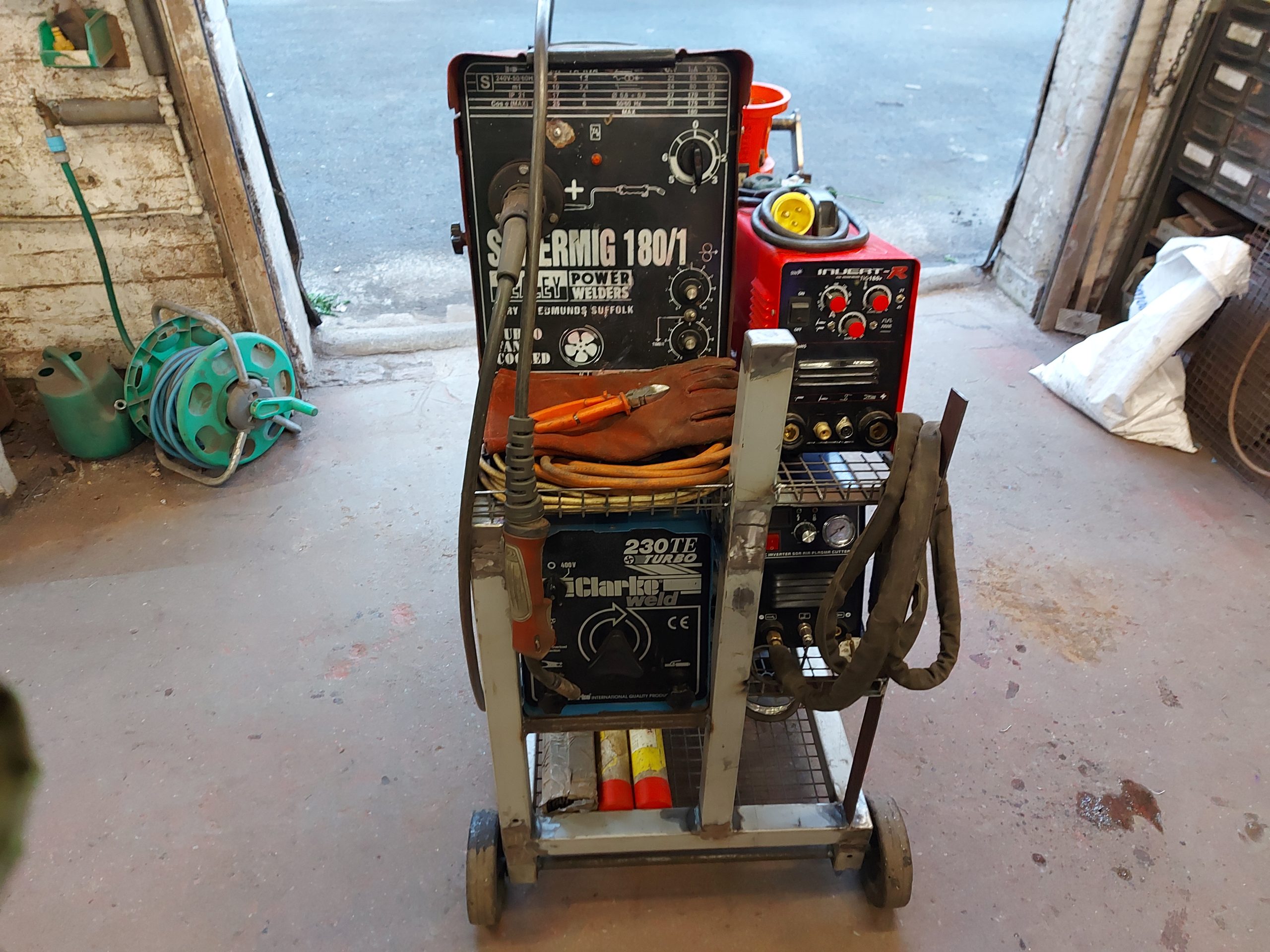

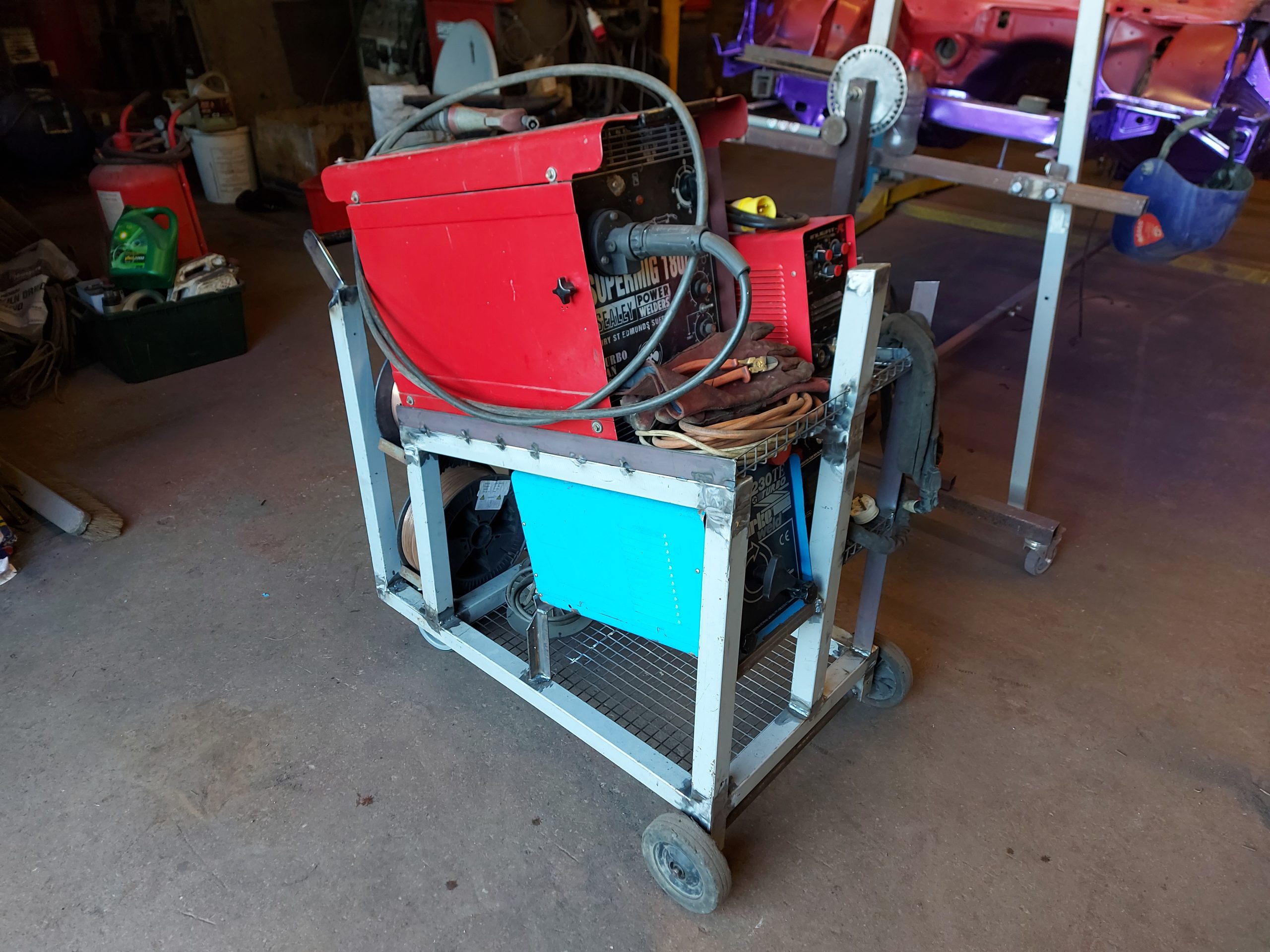

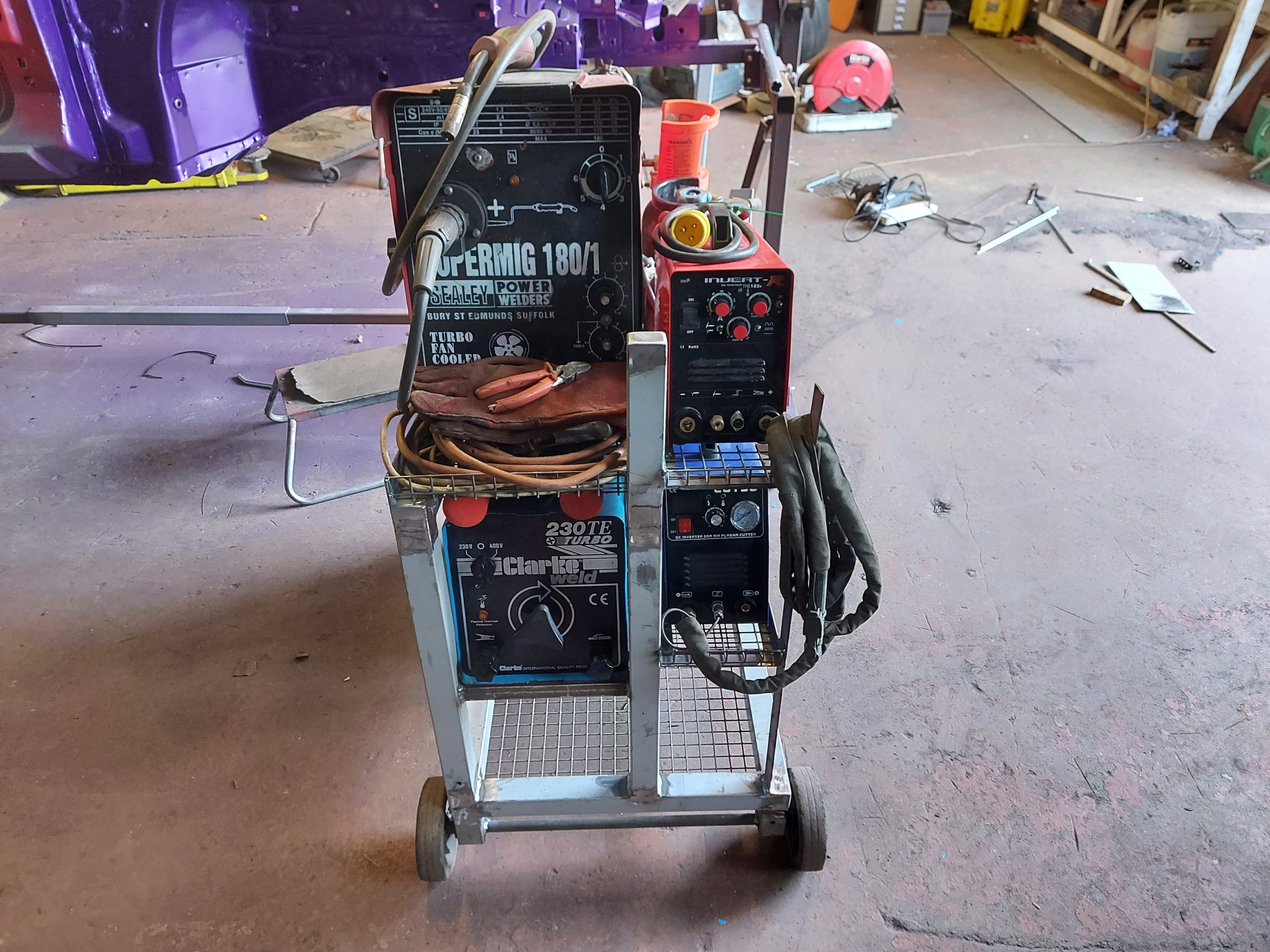

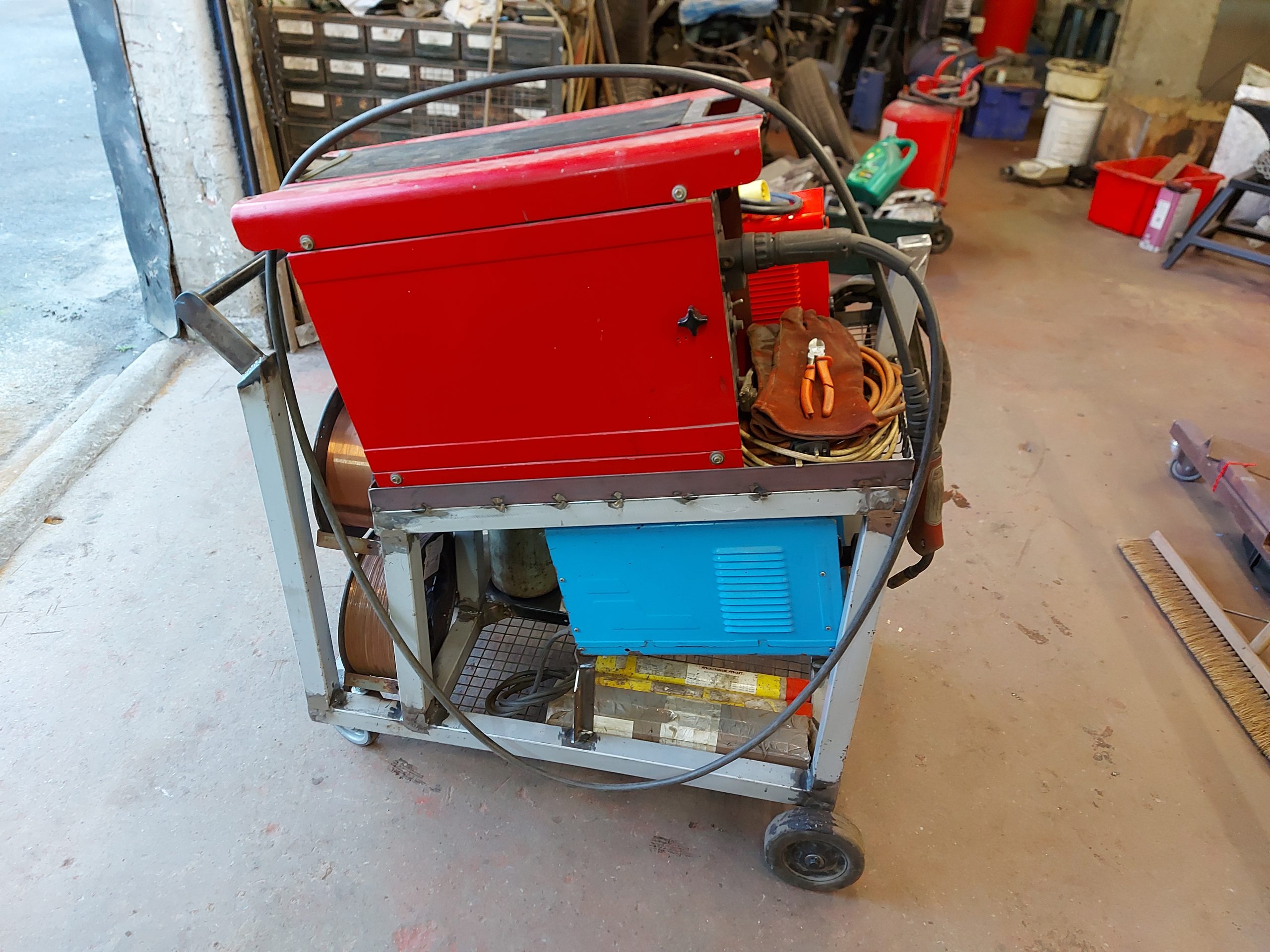

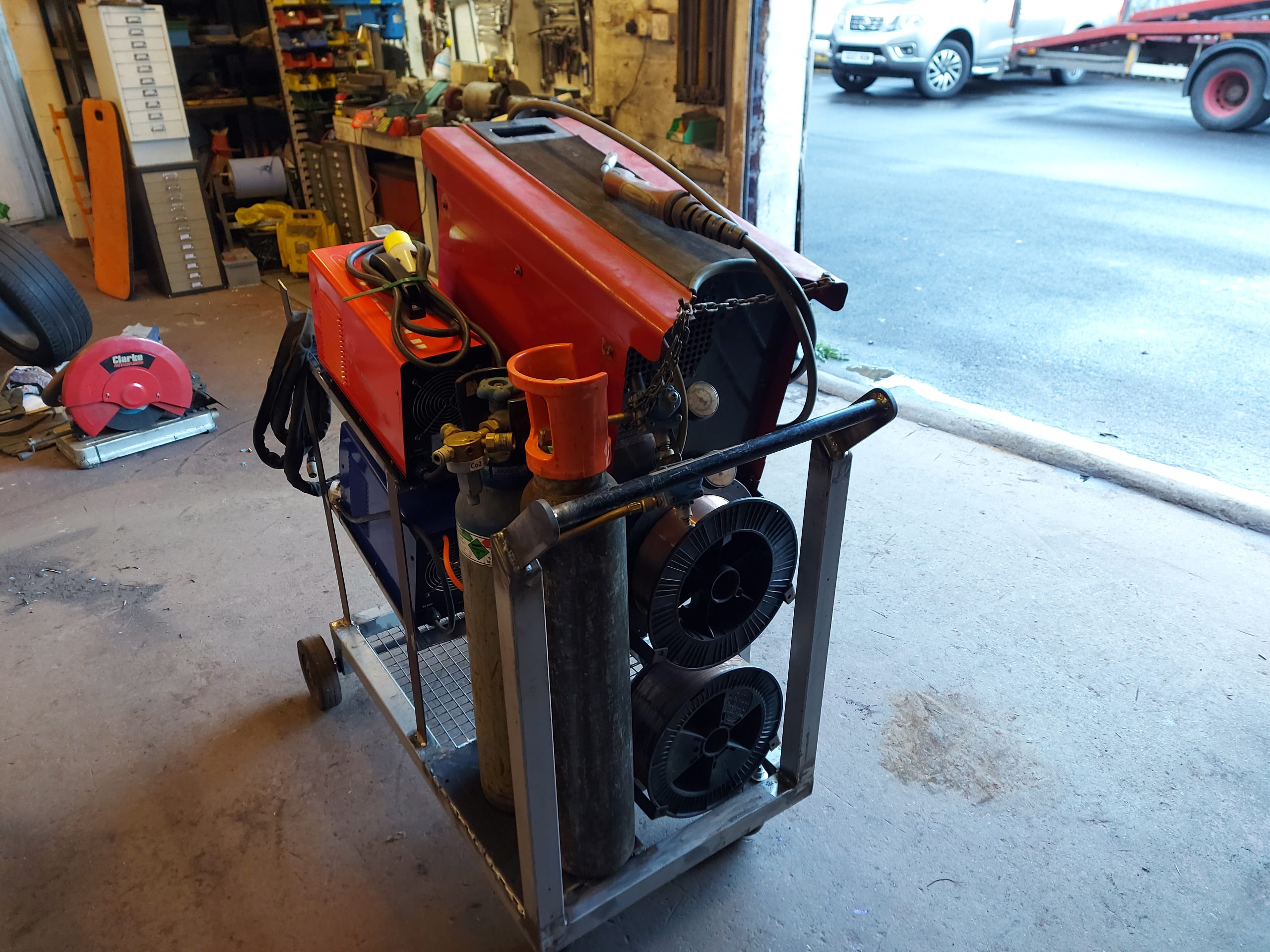

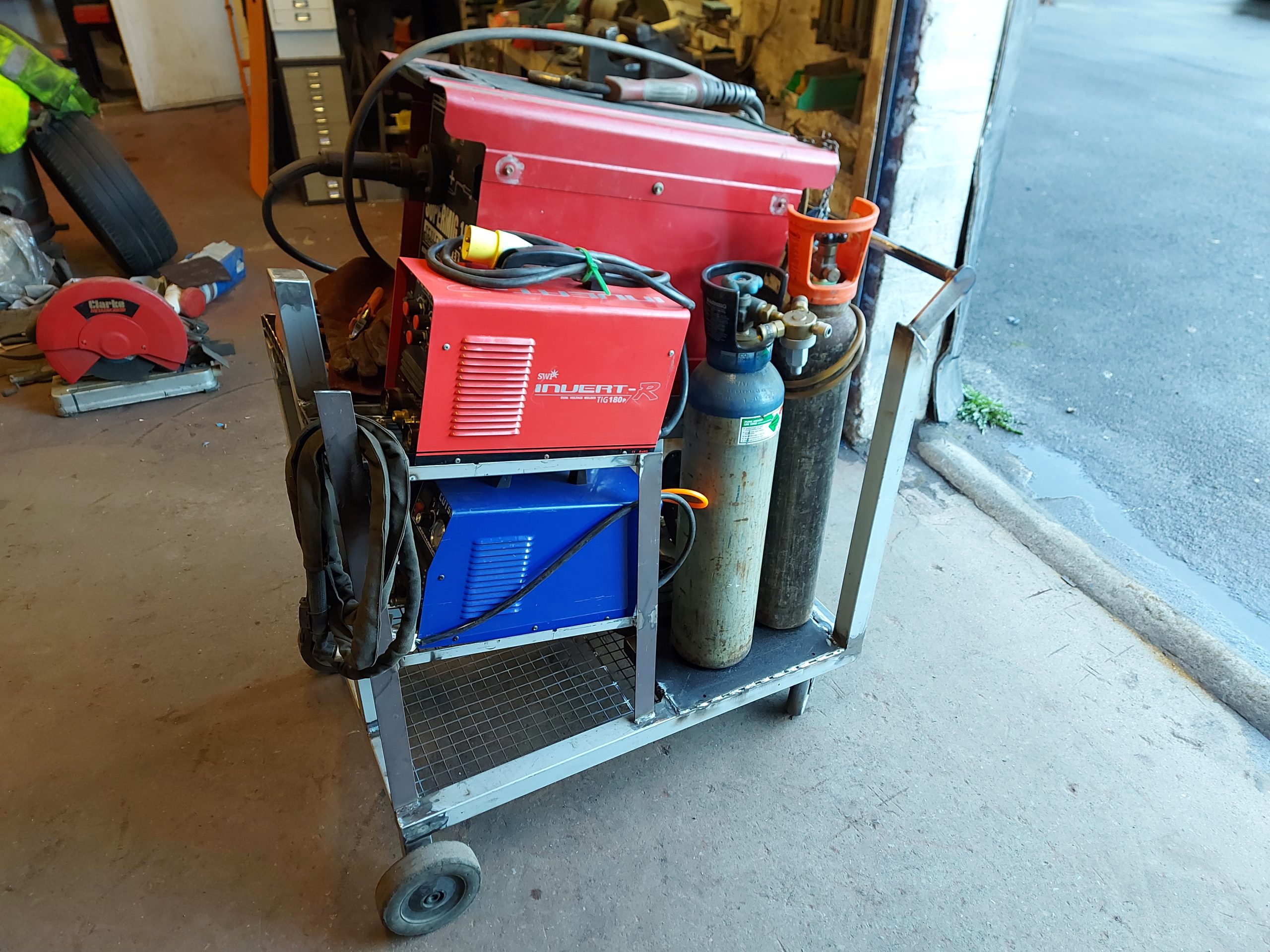

   The Cart so fare

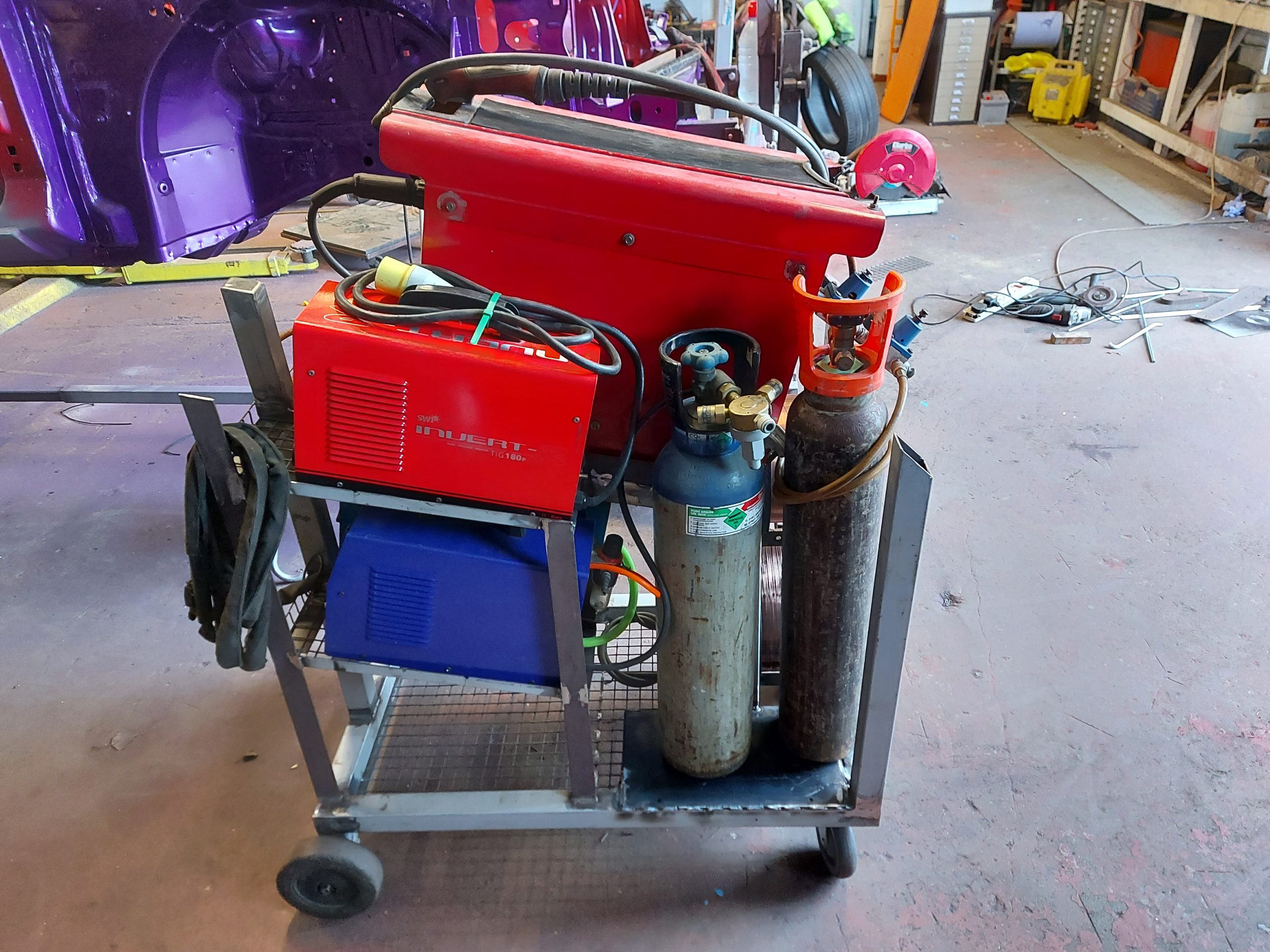

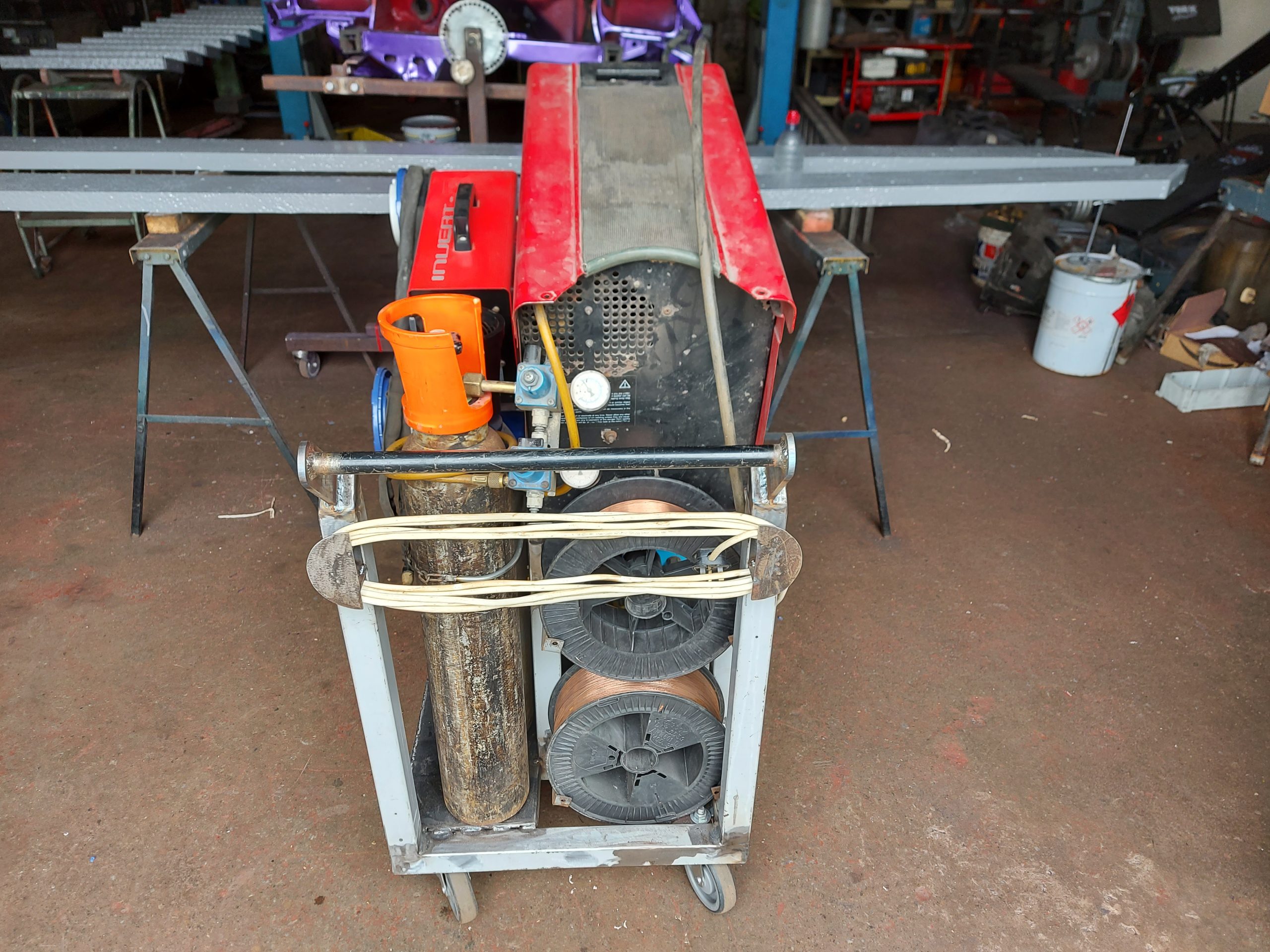

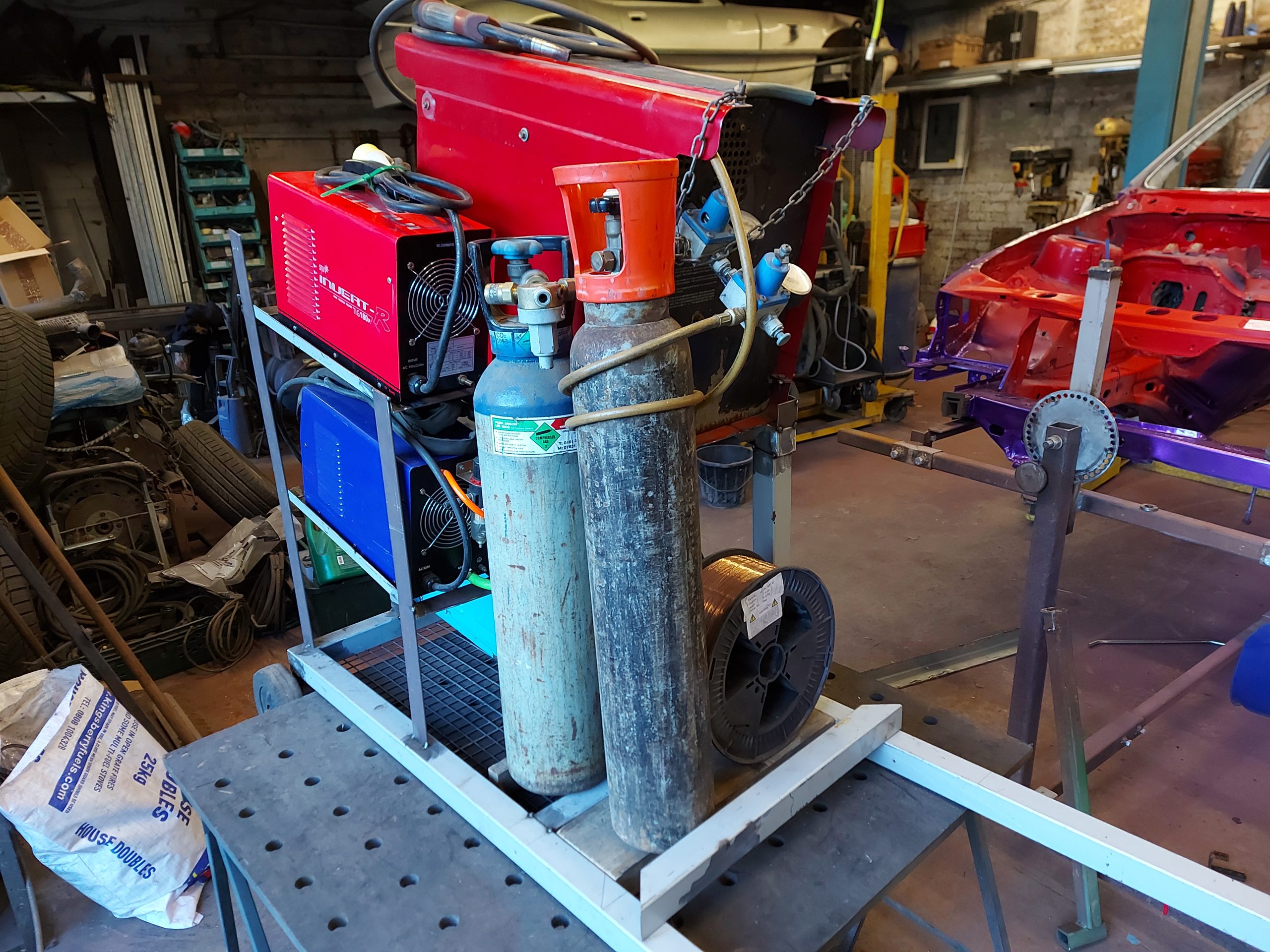

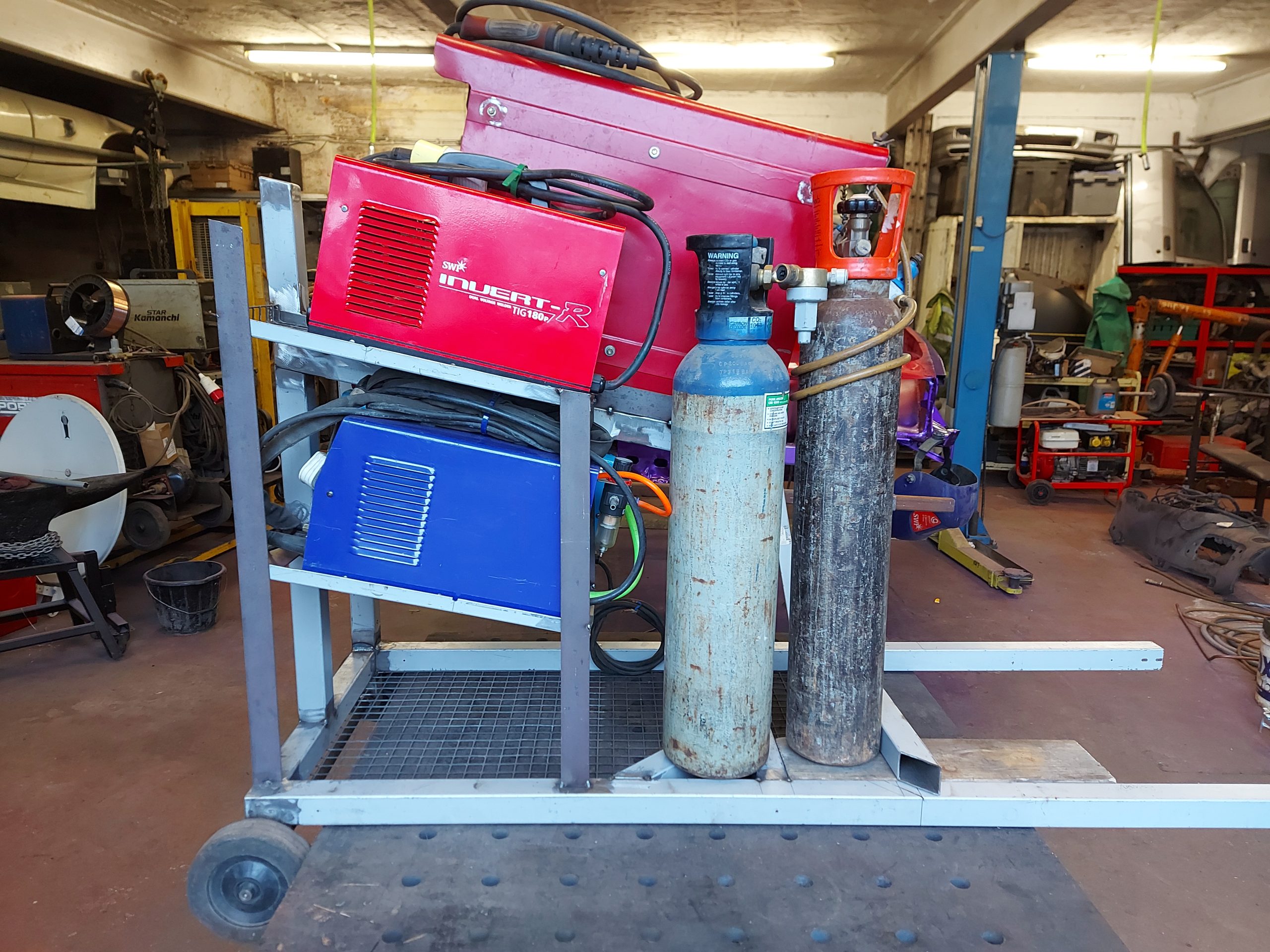

   Bottles secured

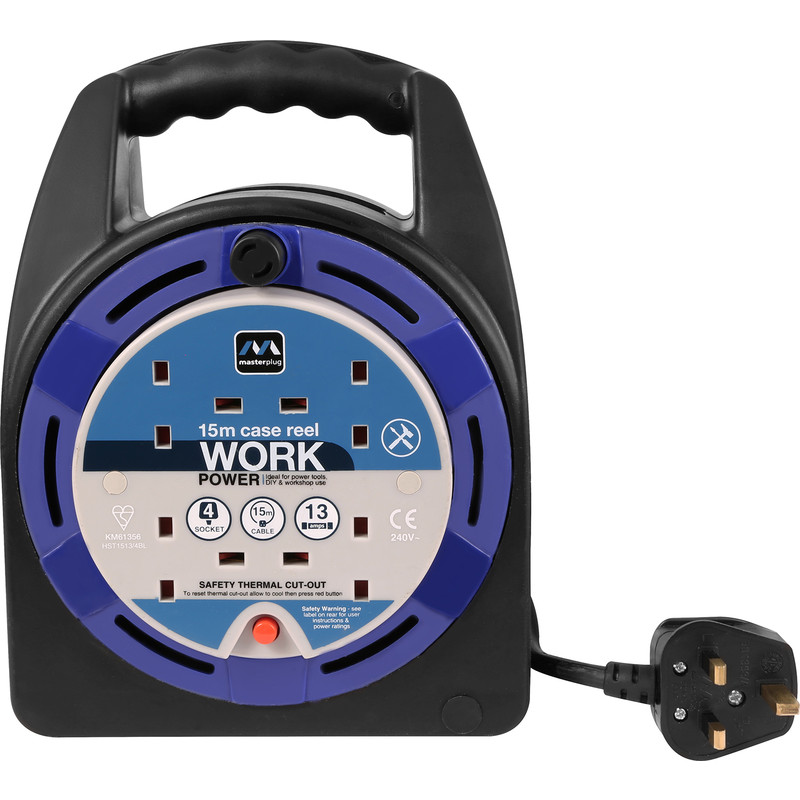

   Got this to split and use as a Cable Tidy and give some power for other things like angle grinders ETC.

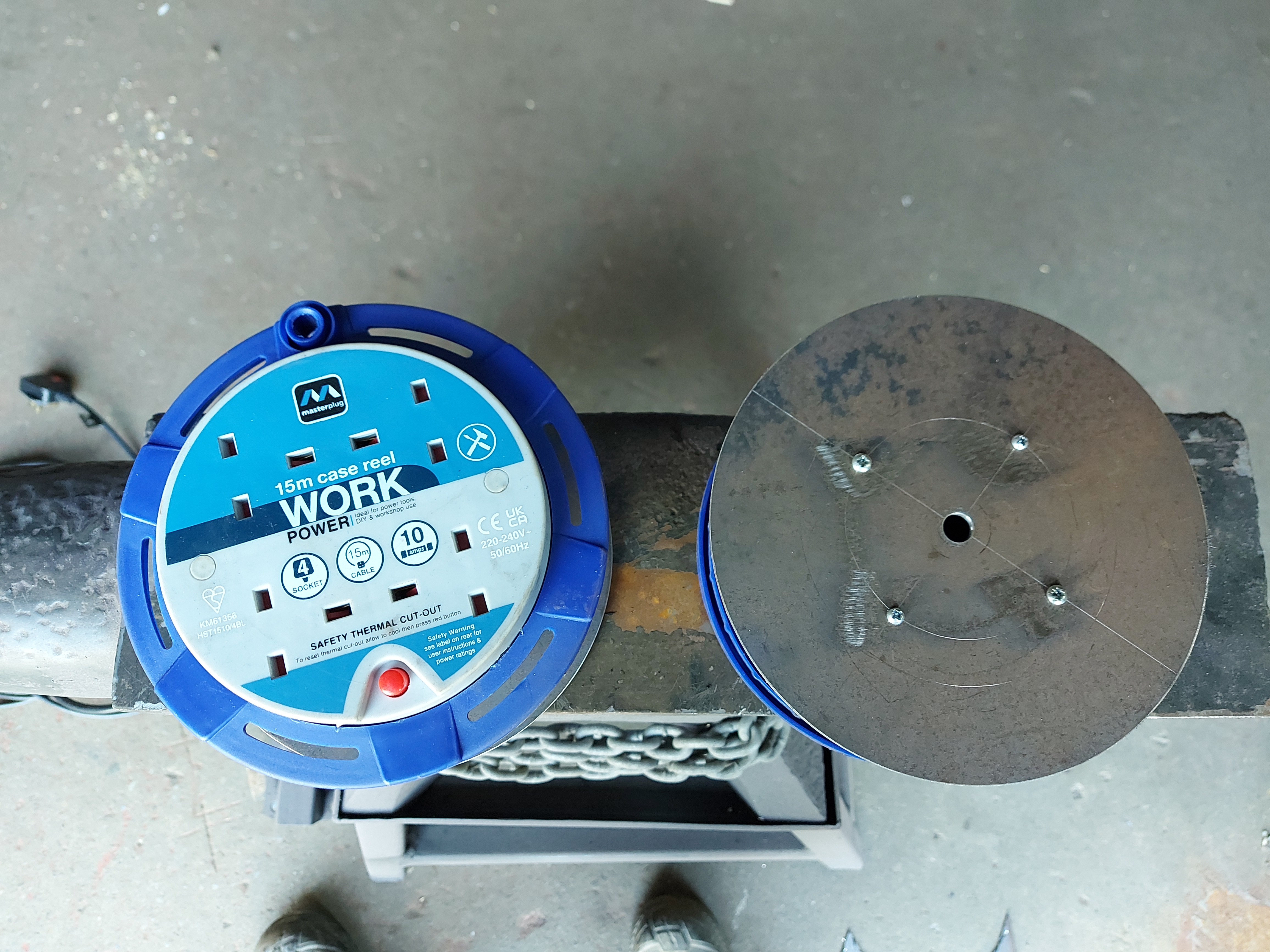

   All broken up and modded ready to fit,


   Fitted just needs wireing up

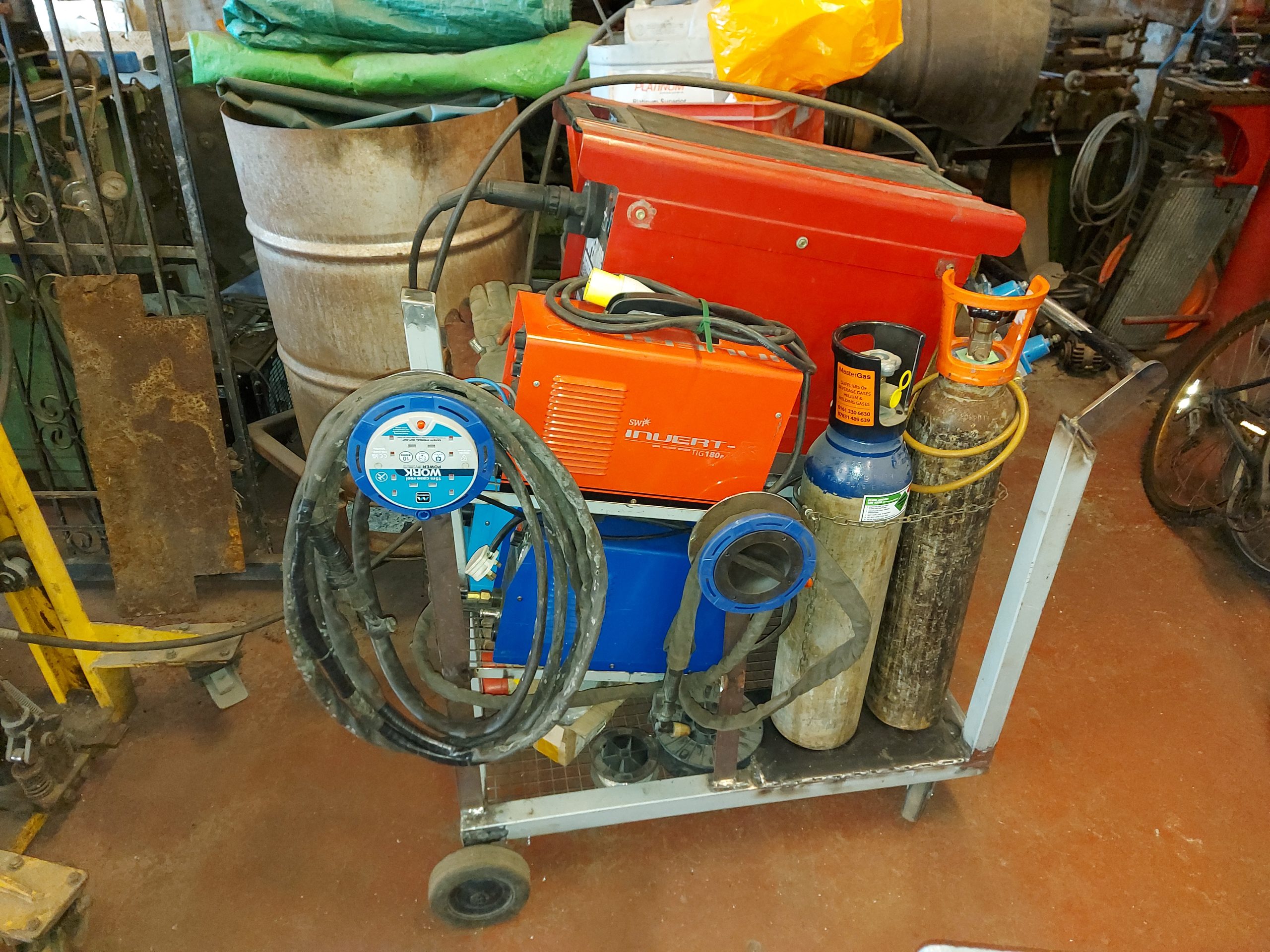

   Cable tidy for main power lead done,


   Earth/Ground socket fitted to Arc welder

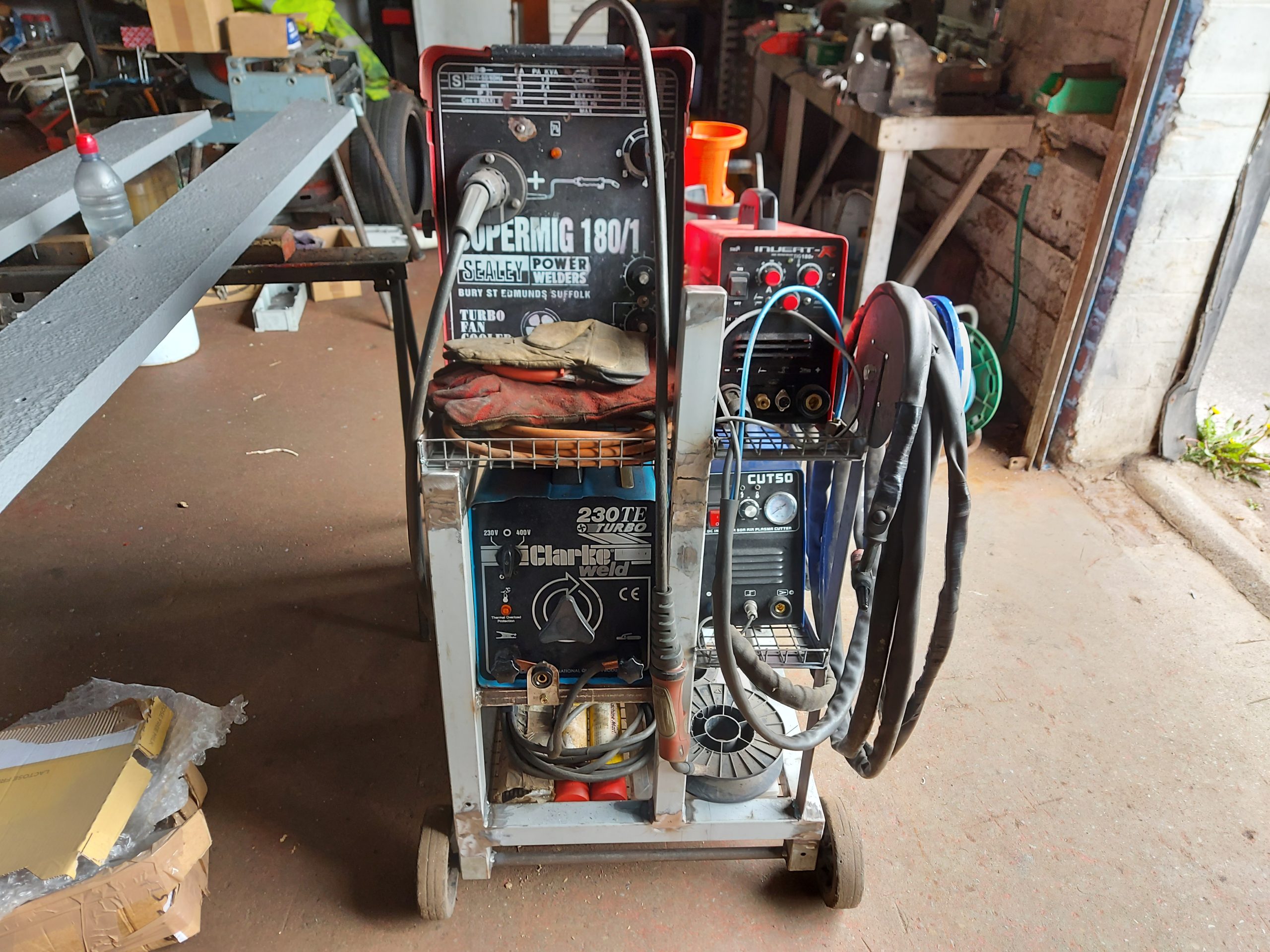

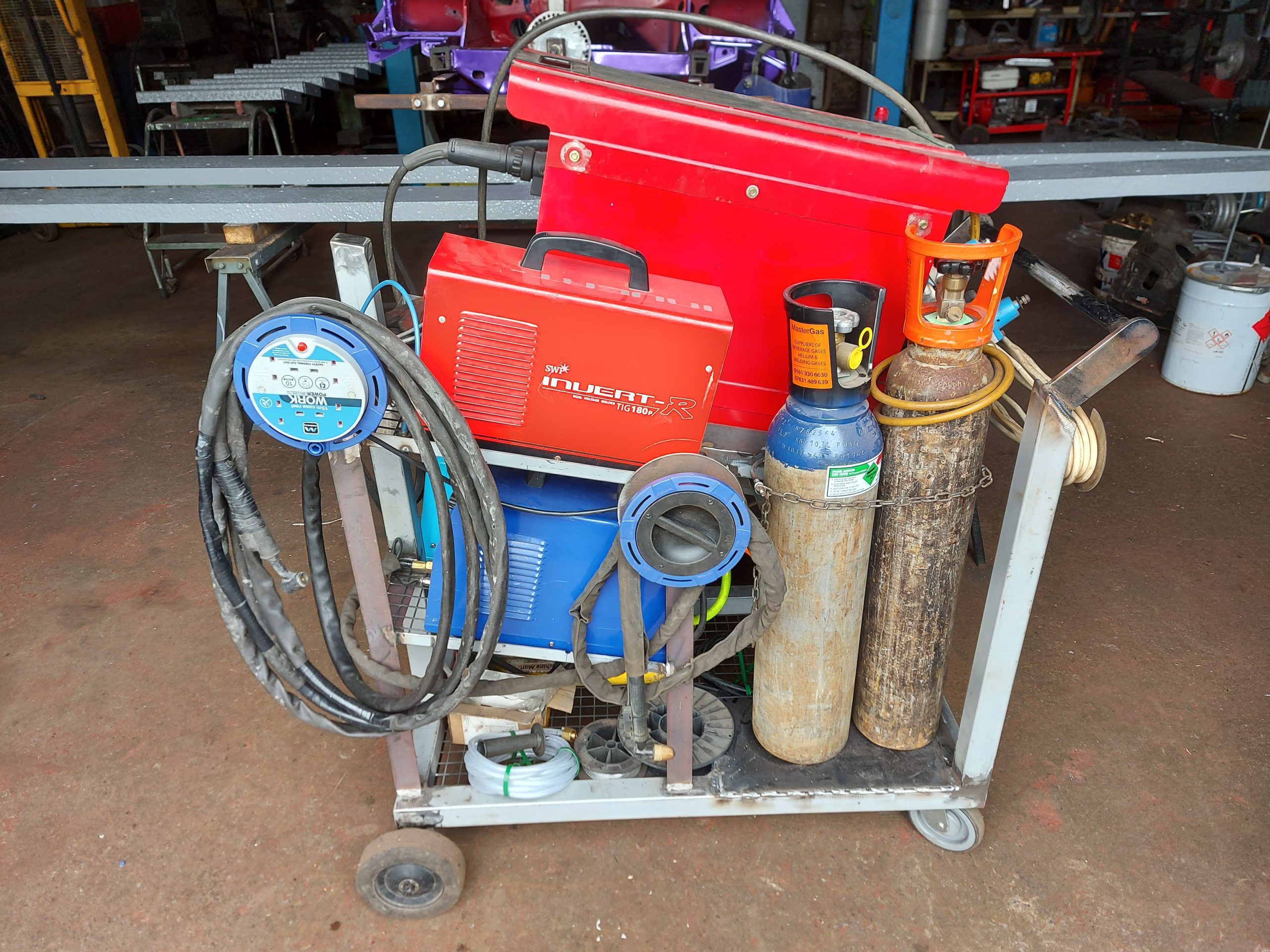

   All power and Ground lead connections sorted, Only 1 ground lead for all 4 pieces of kit

   I’m thinking of mounting 4 angle grinders on side with different discs on ?
