All the main parts are bean collected ready for the Build

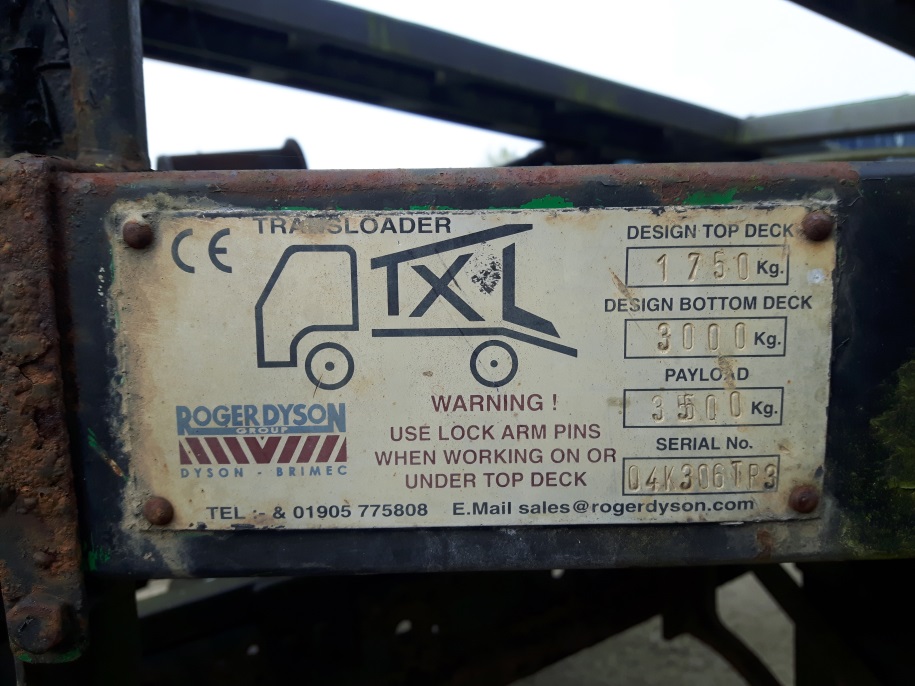

Picked this Isuzu NQR70 up with a Roger Dyson TXL twin deck body, It’s got all the bits with it, Will just need hydraulics pack converting to 12v and the Super Winch replacing,

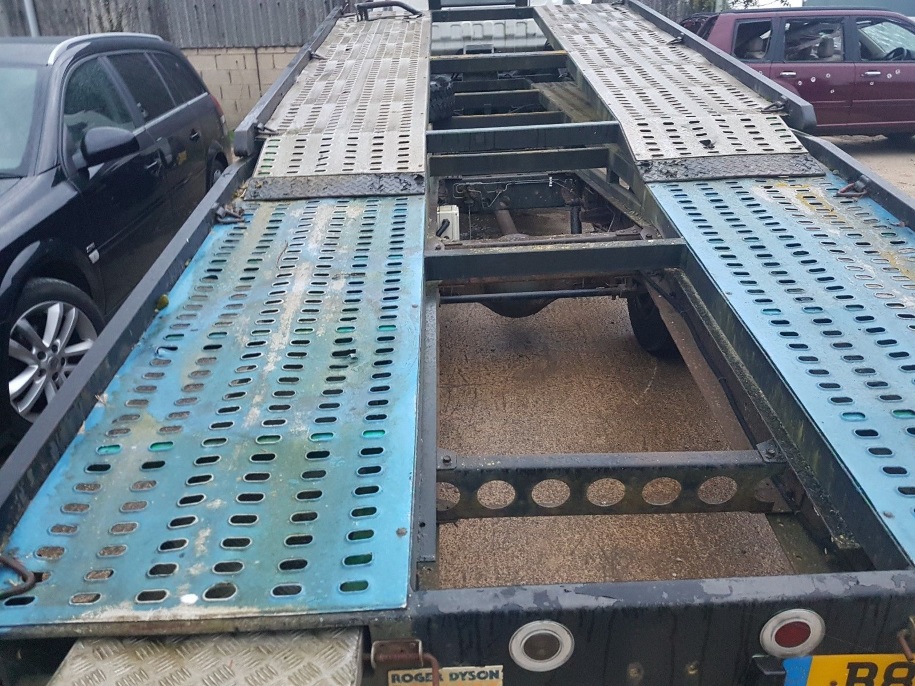

The eBay pictures

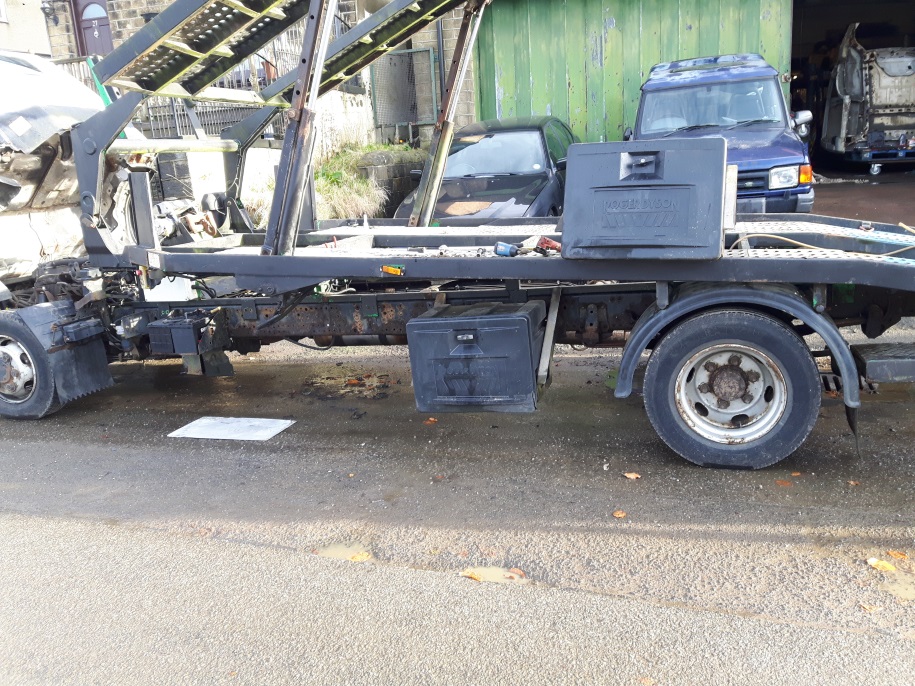

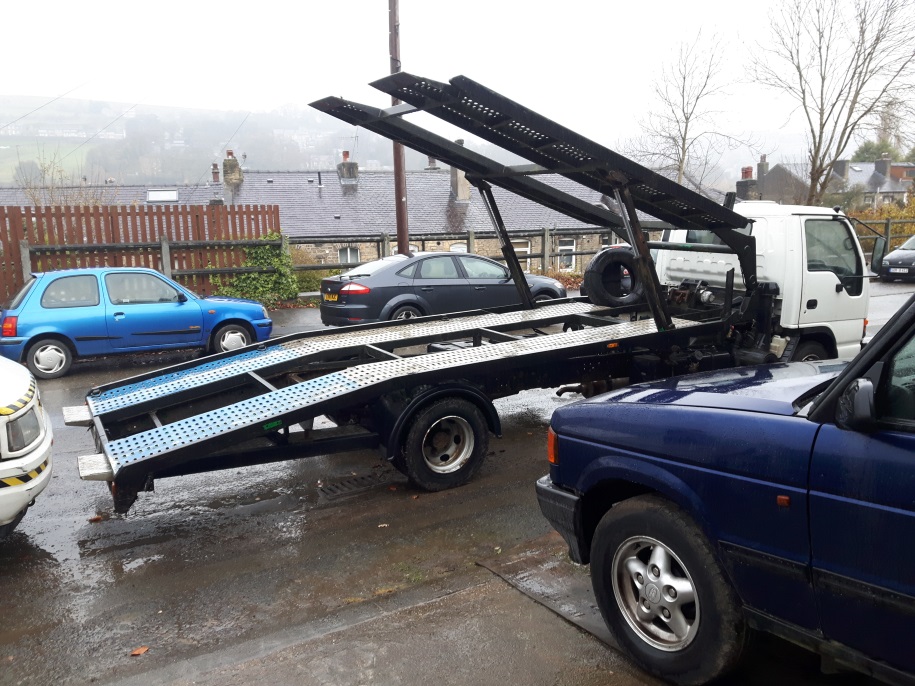

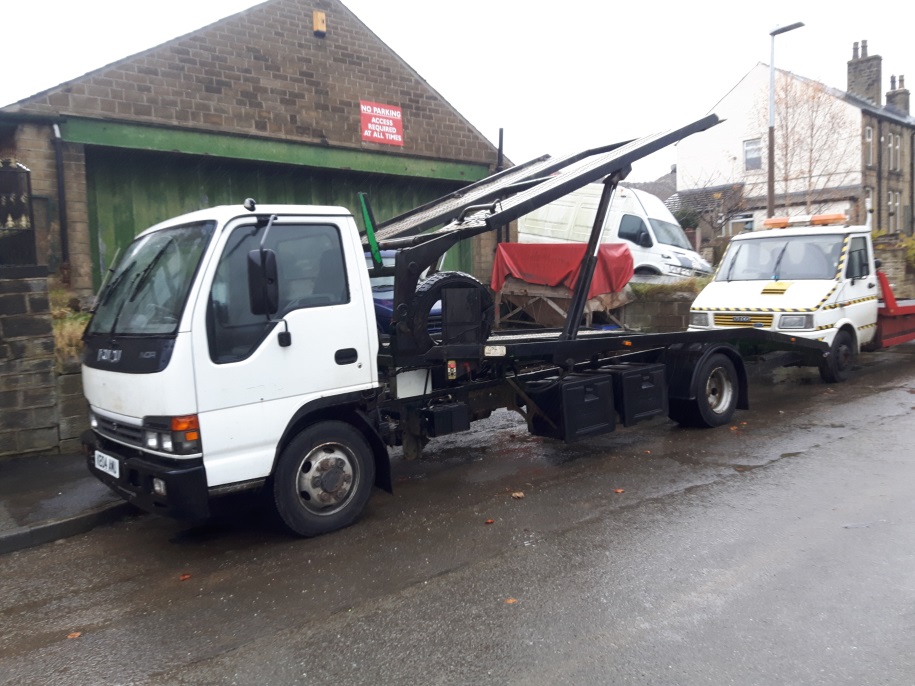

Got it Home

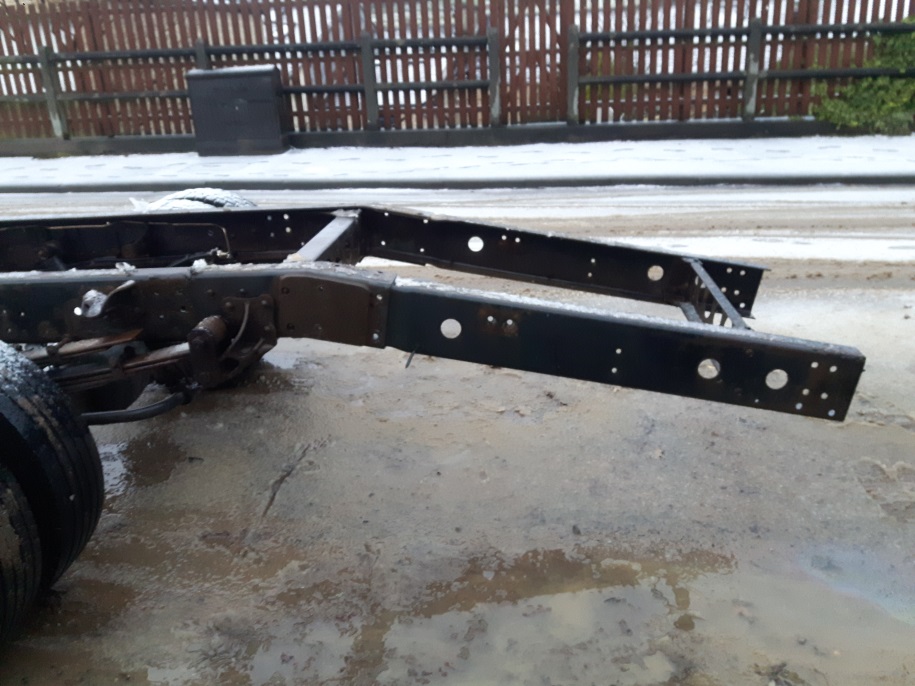

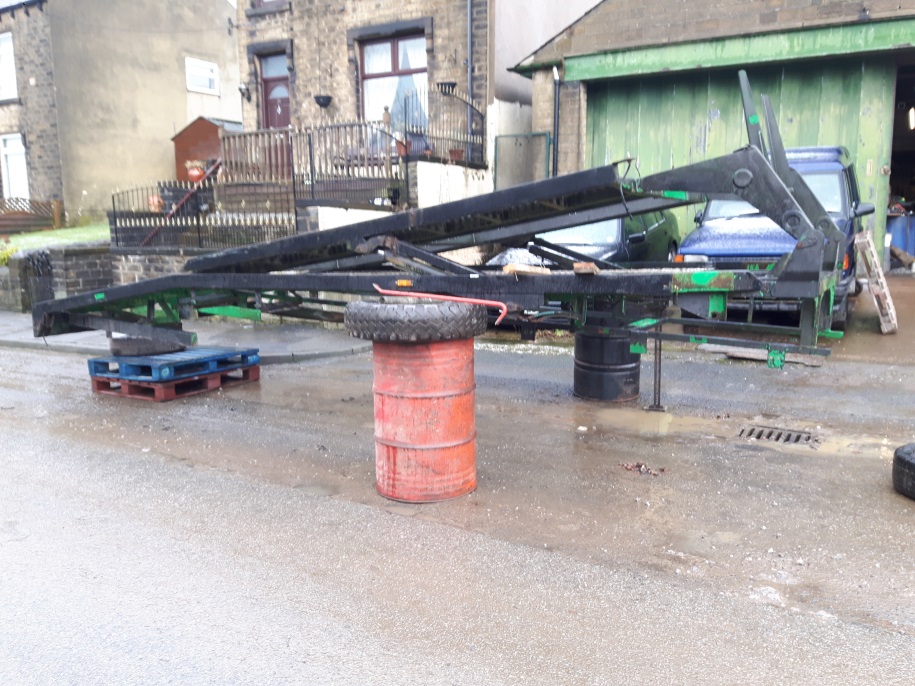

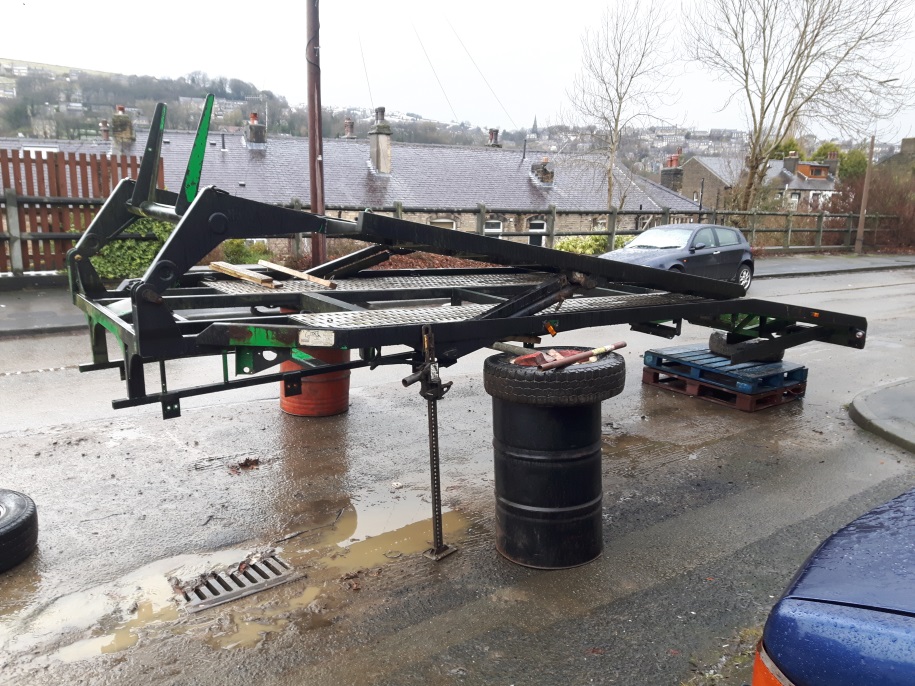

Body stripped off and ready to start prepping it for the Iveco
Not sure if I’m going to use these angled chassis extensions, There very Heavy,

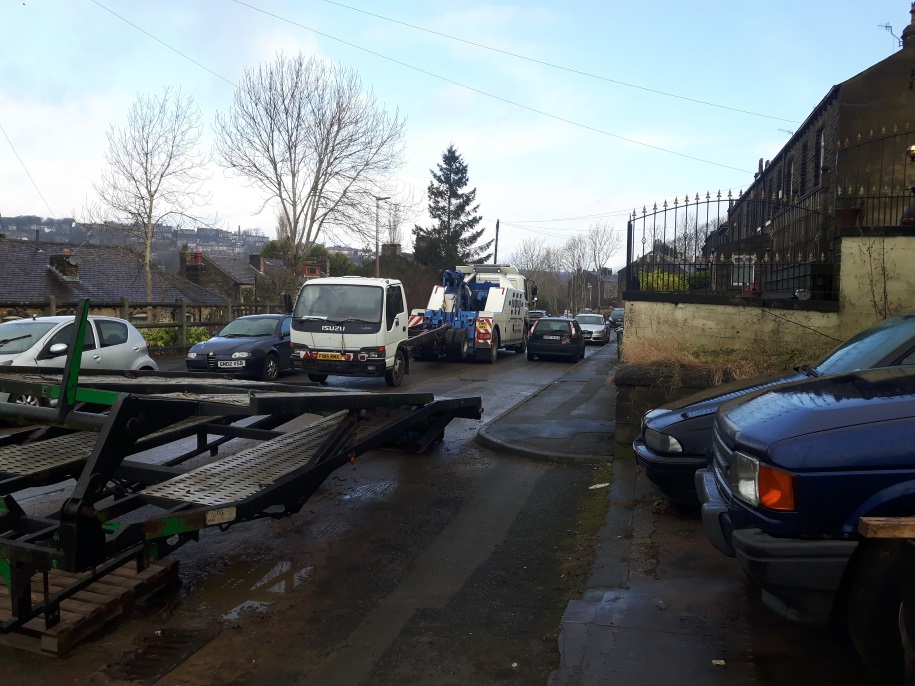

The old Isuzu truck off to the big grave yard

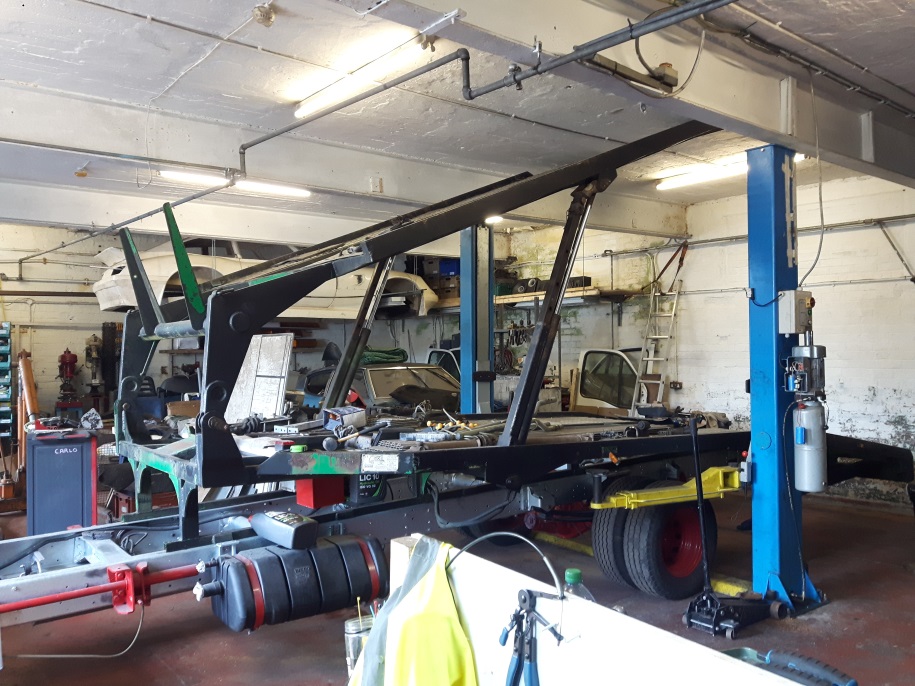

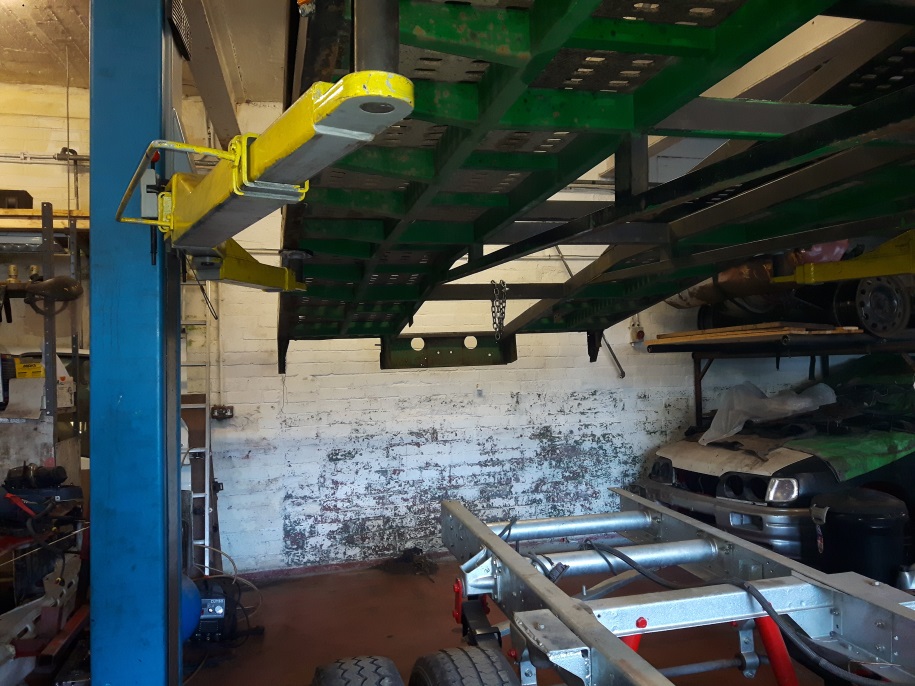

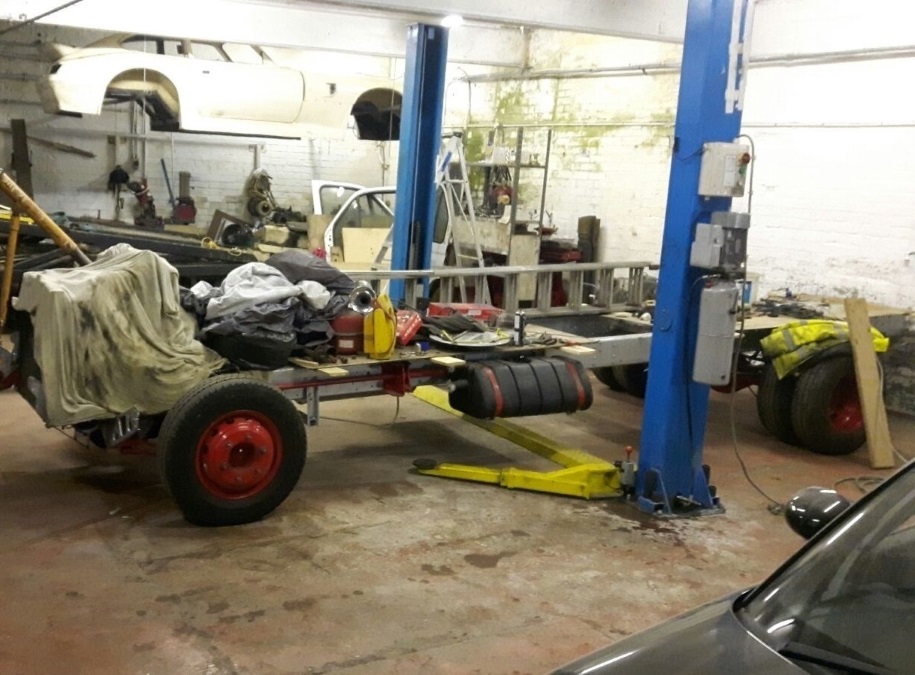

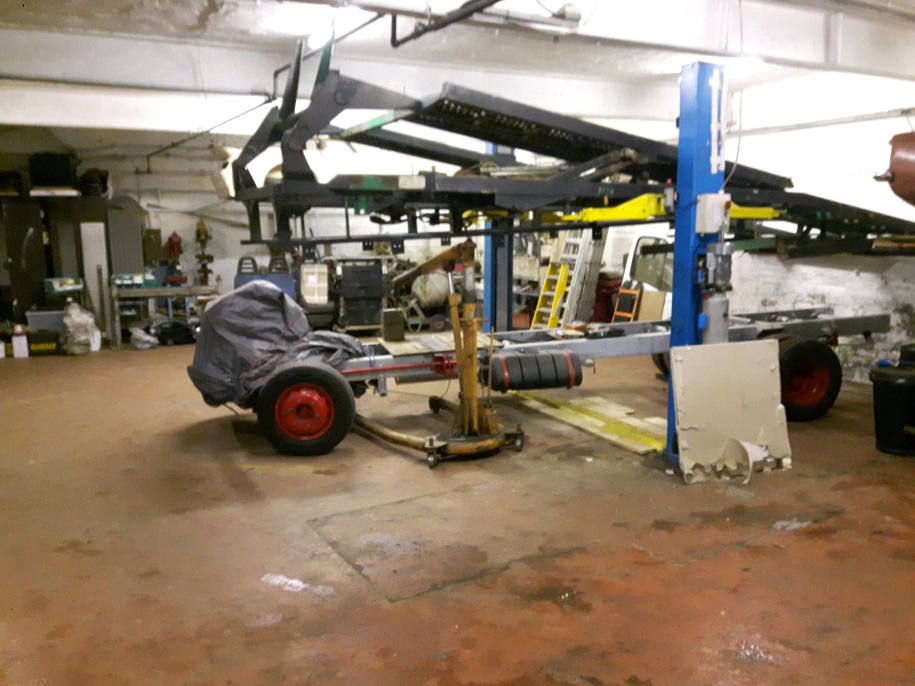

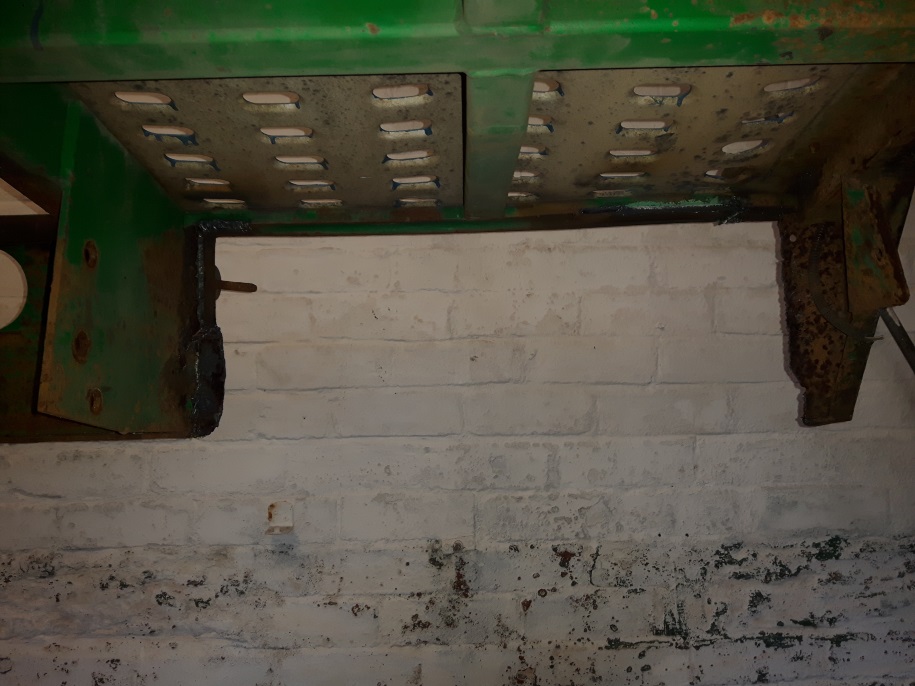

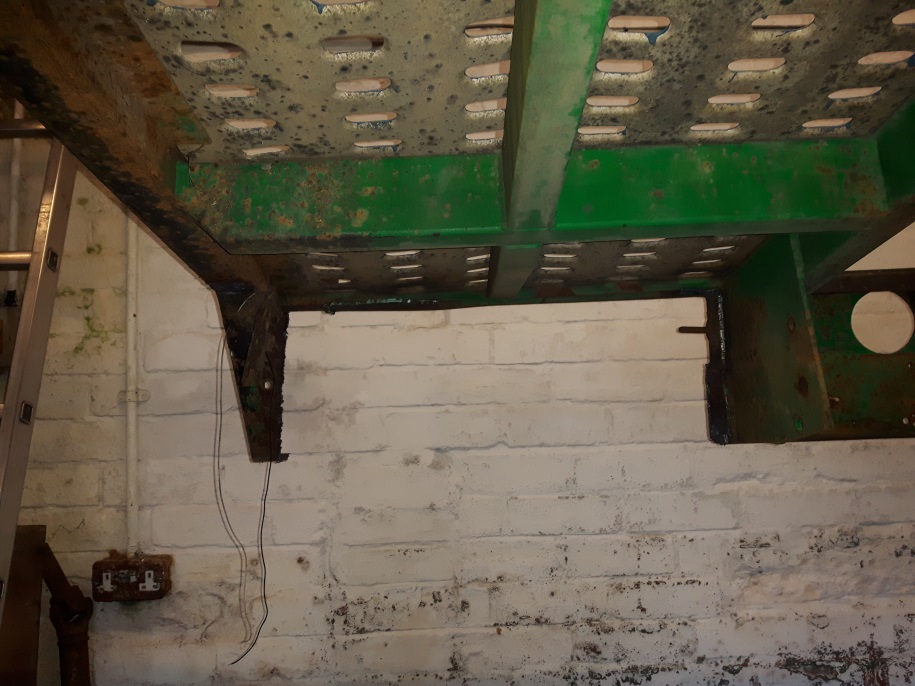

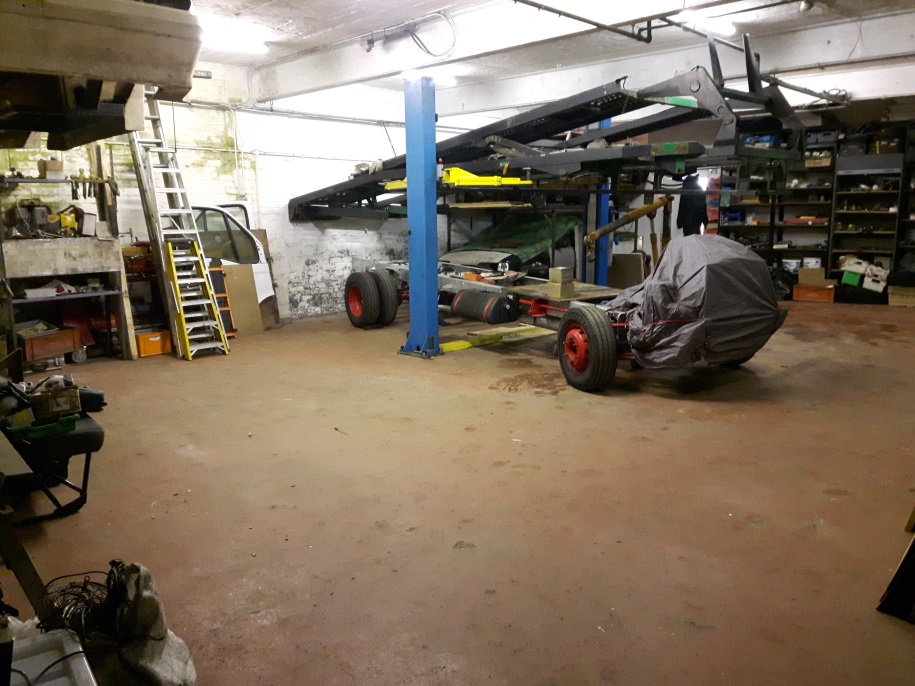

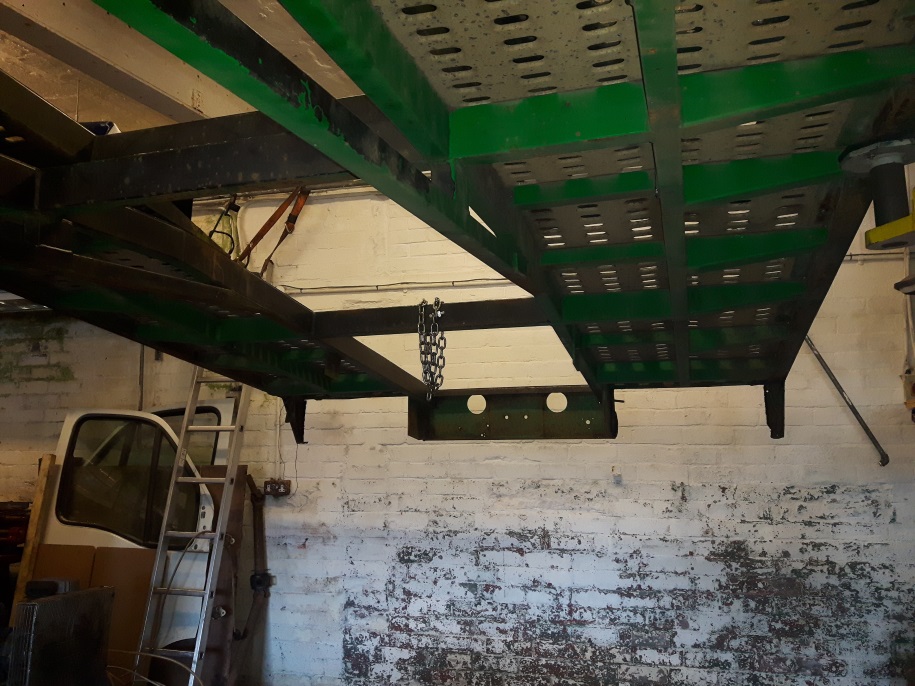

Little more progres at the new place,

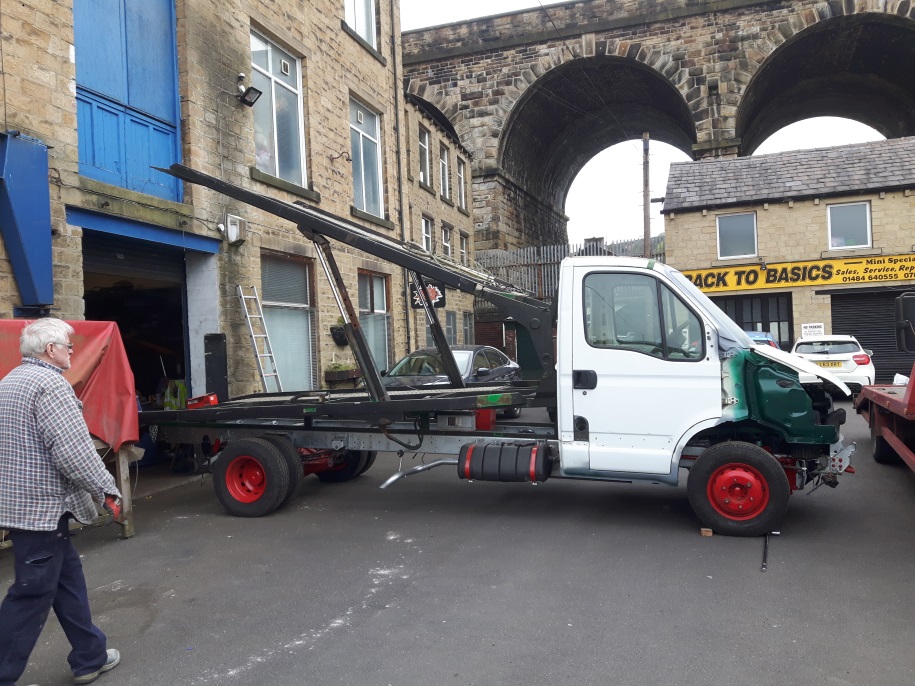

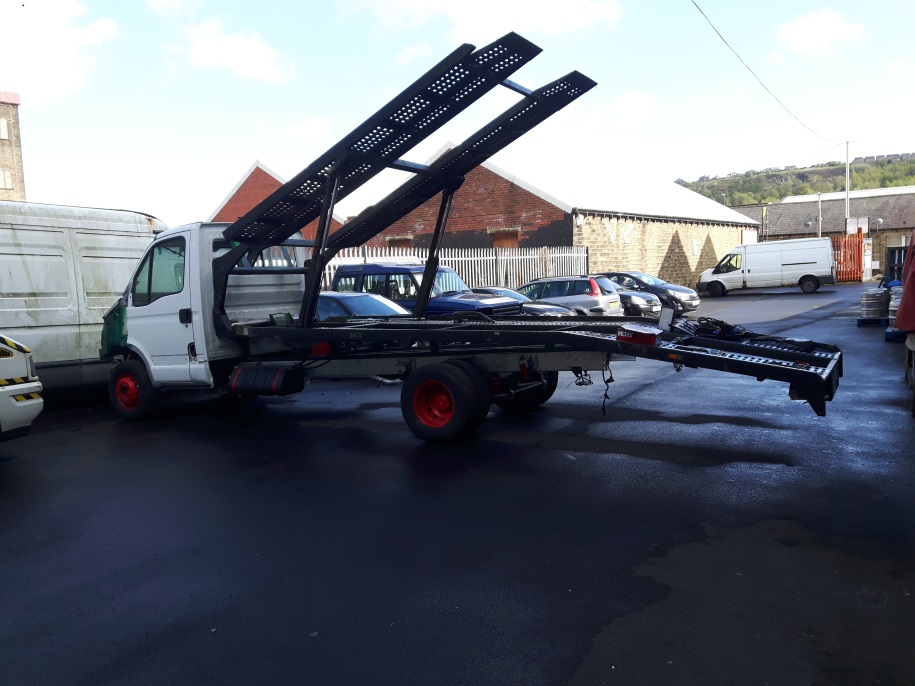

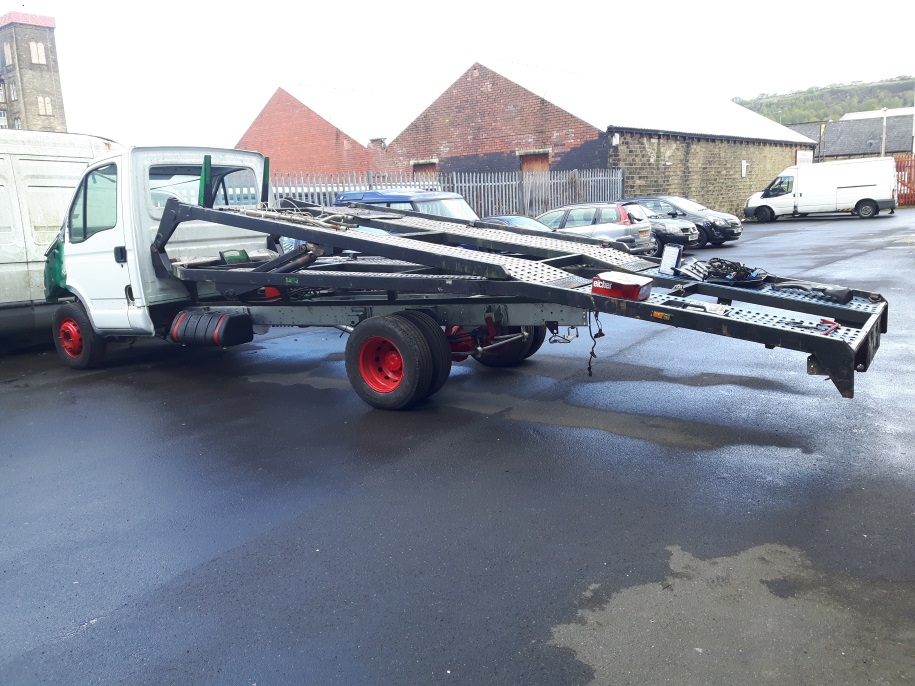

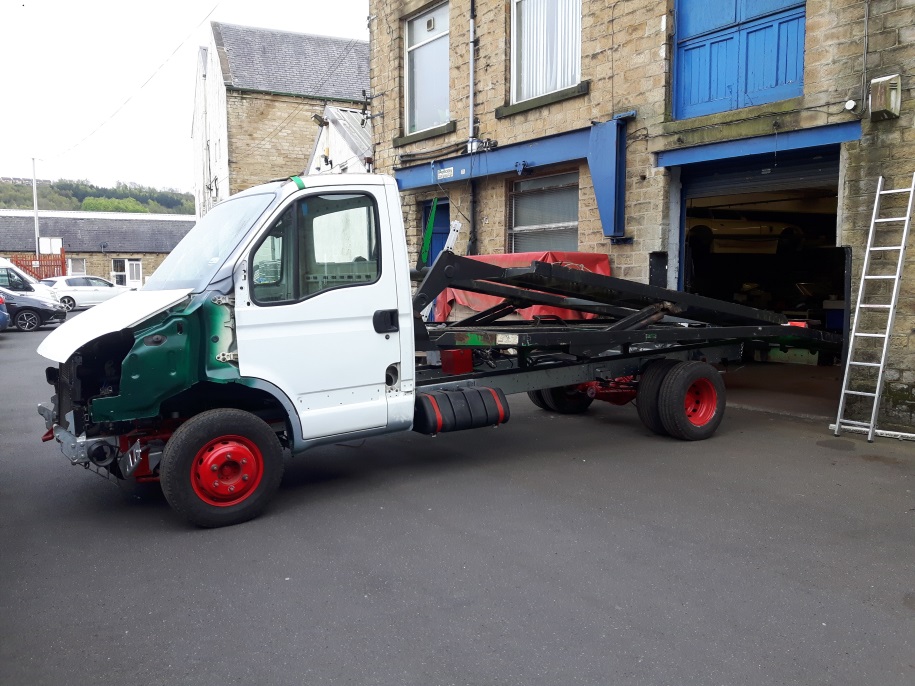

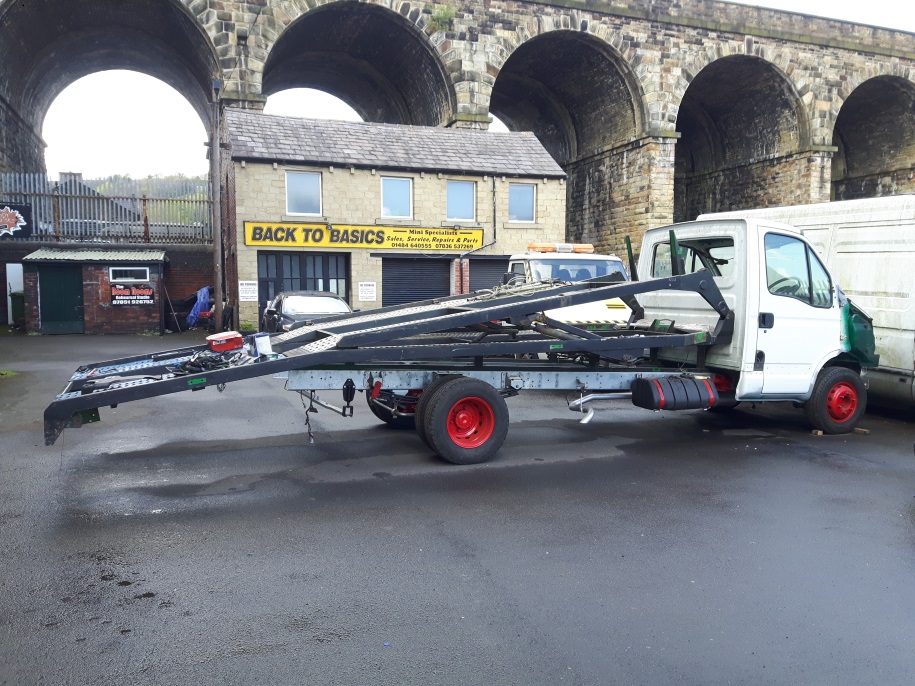

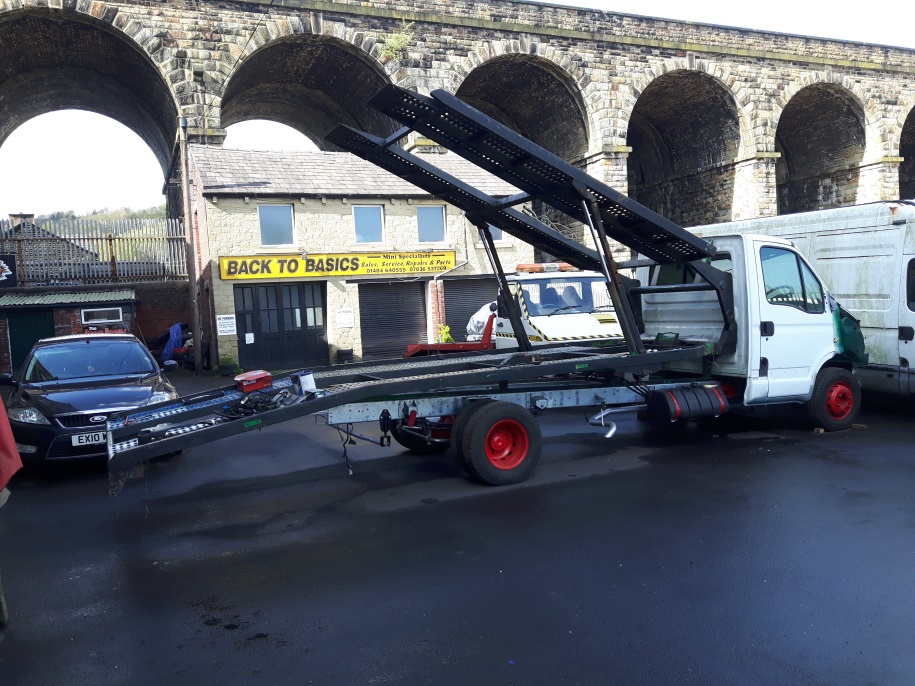

And the body tested with full lift and it’s about 50mm too fare back,
After a little cutting and trimming the body is as fare forward as it will go,

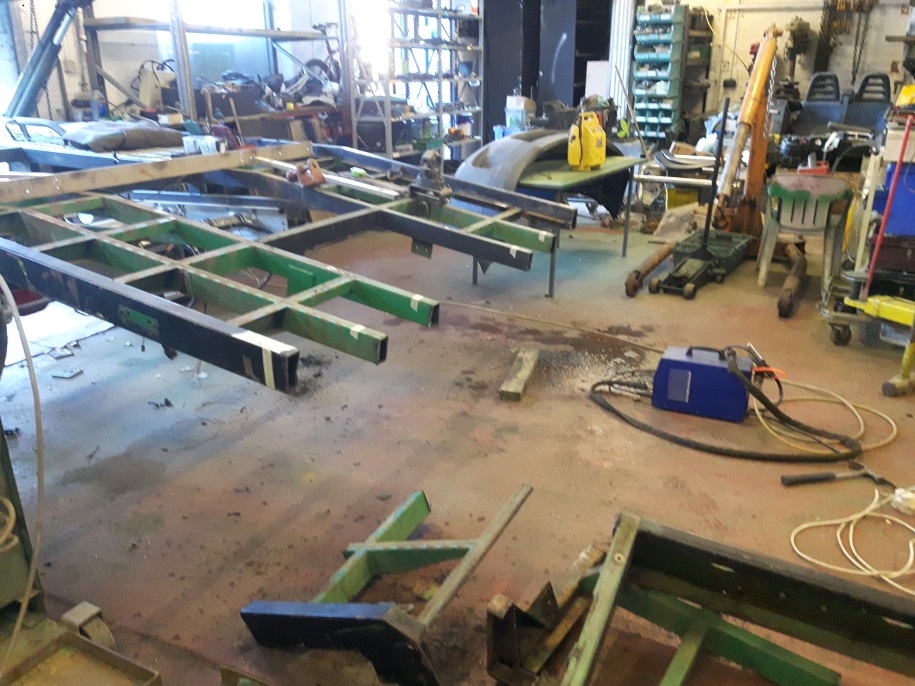

Well I had to cut 555mm of the body to make the overhang legal,

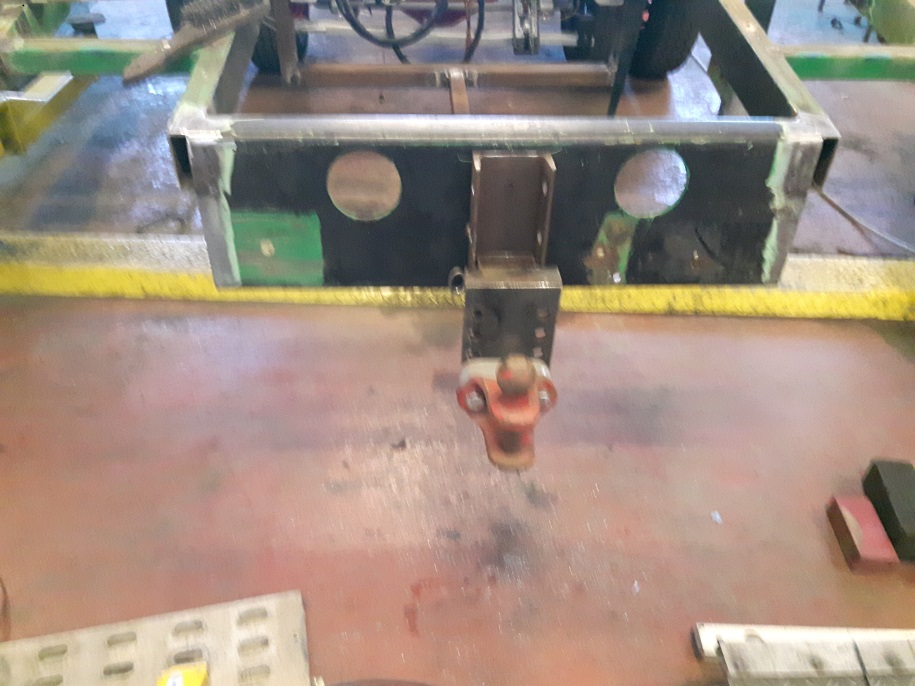

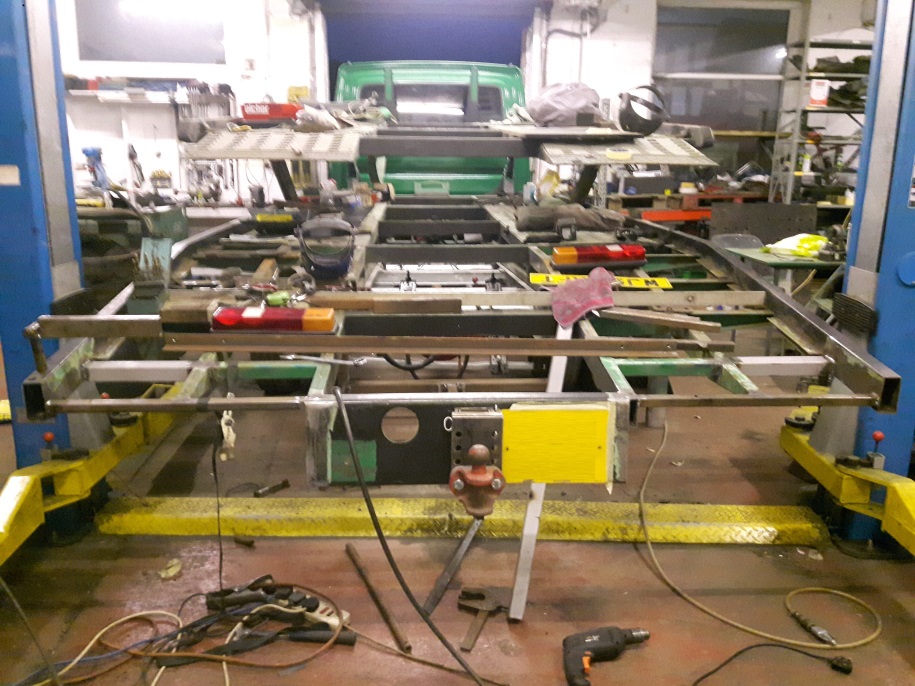

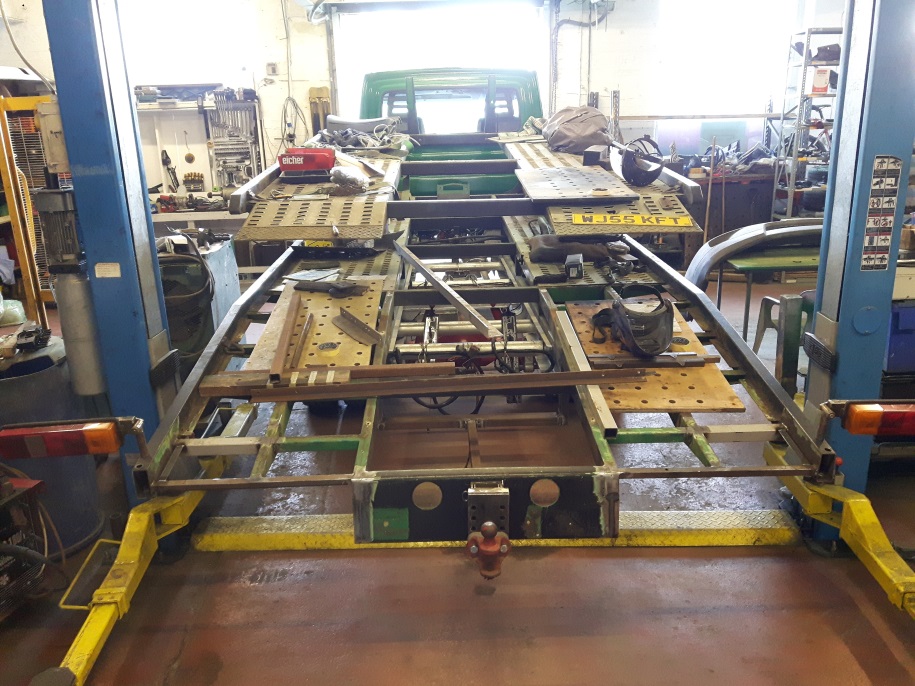

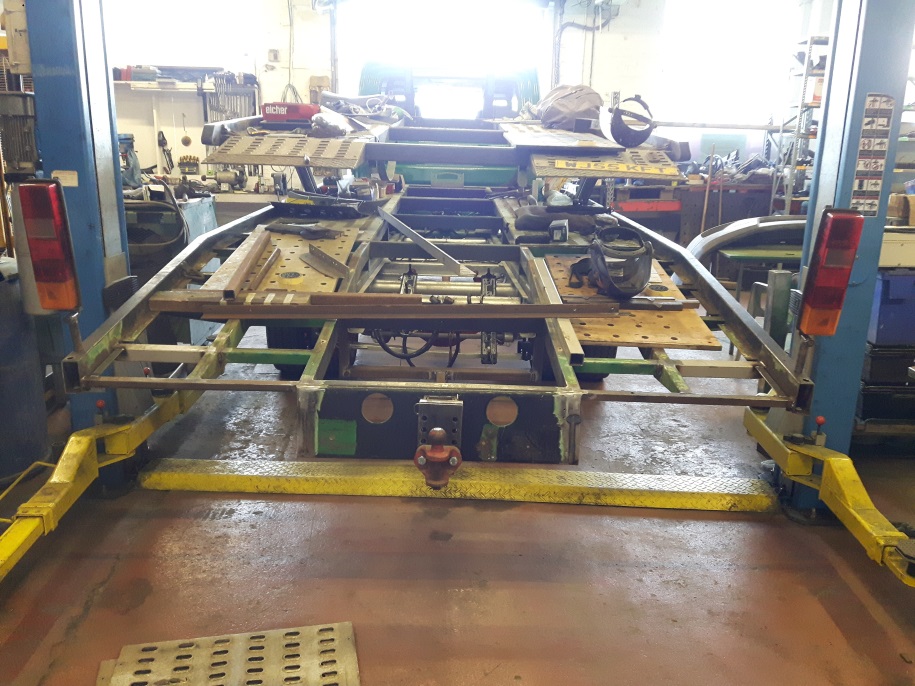

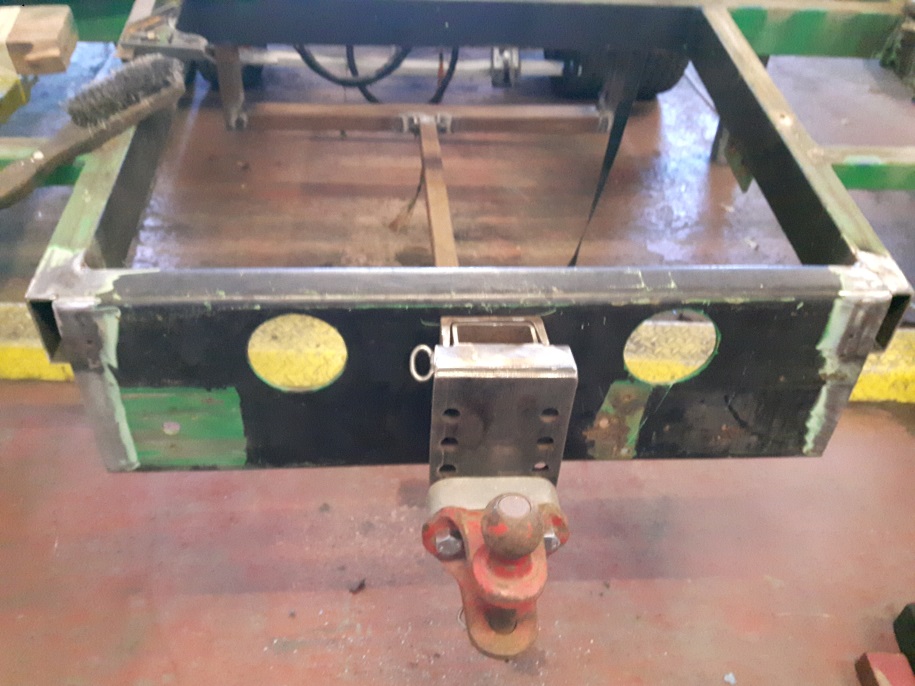

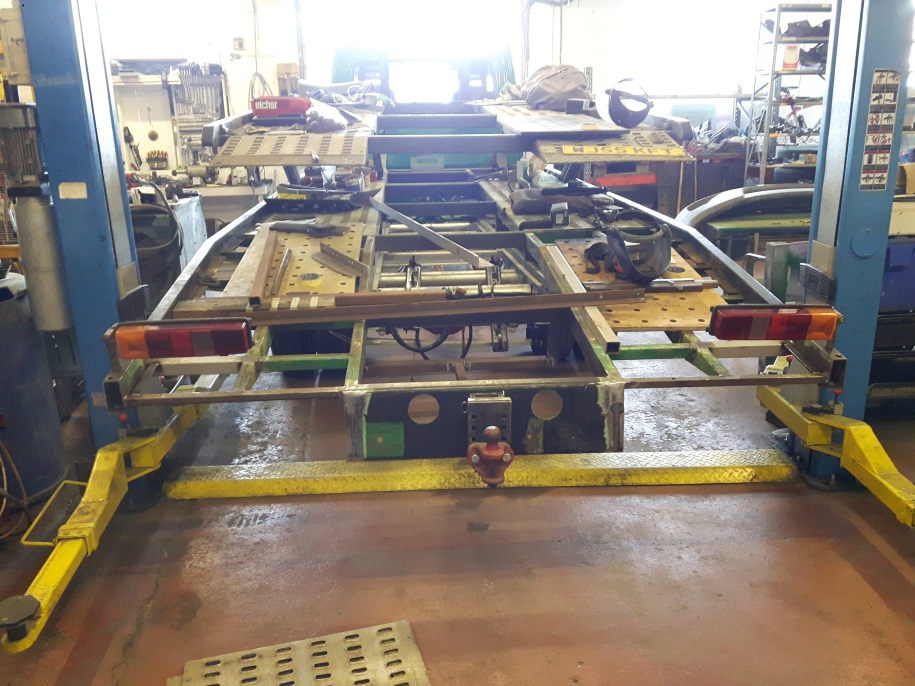

Rear end rebuild and Towbar,

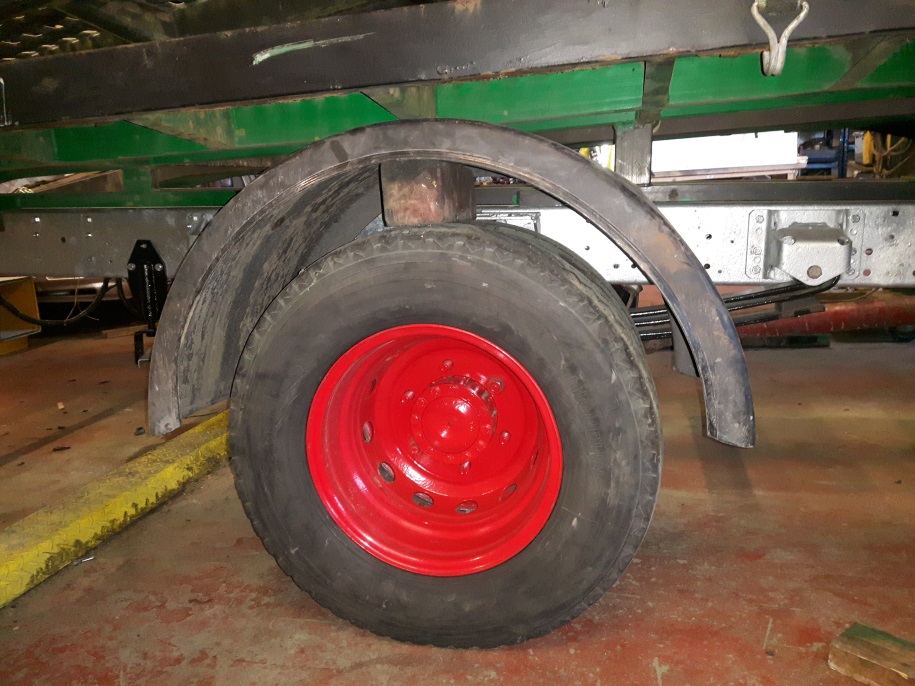

Think some smaller wheel arches are required !

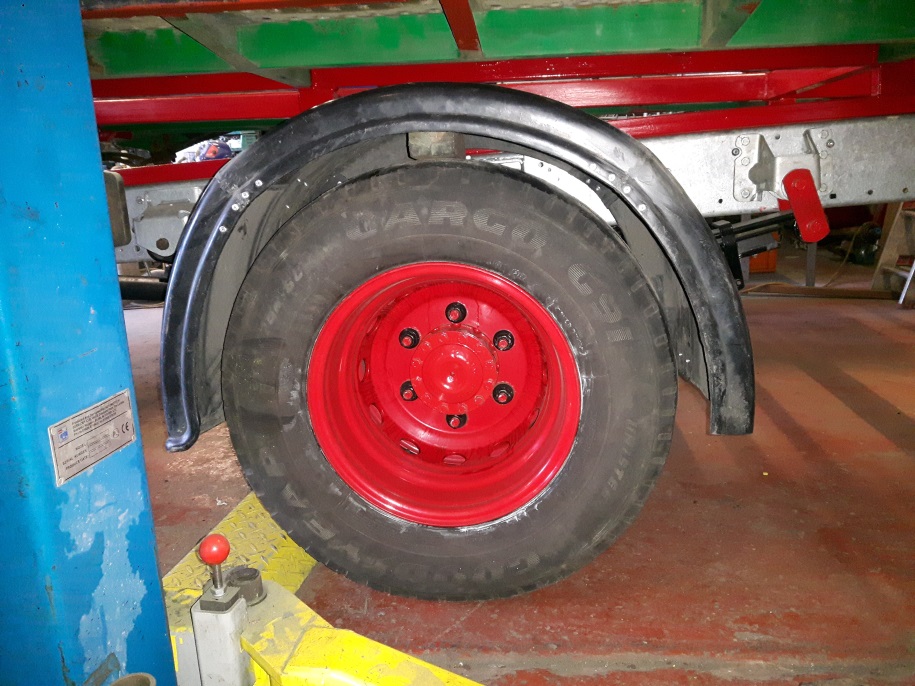

Coulden’t find any wheel arches in the size I wanted so did a little cut n shut on them lol

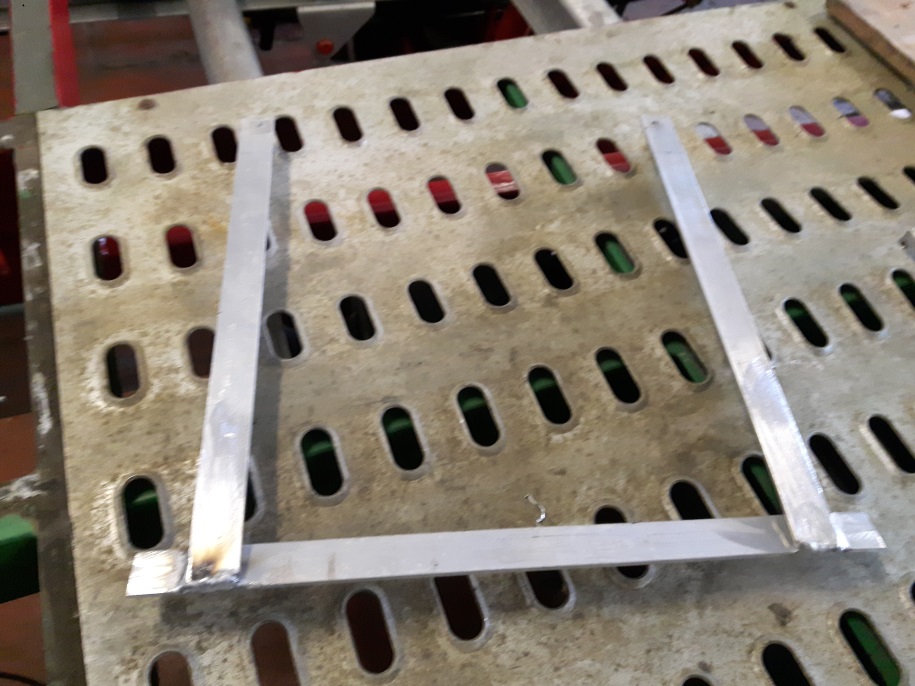

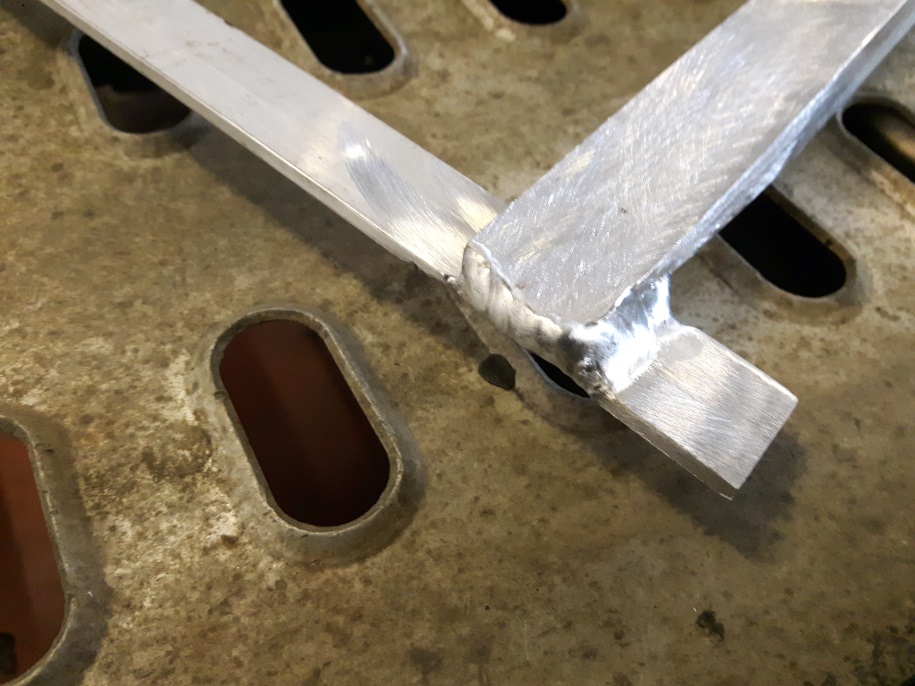

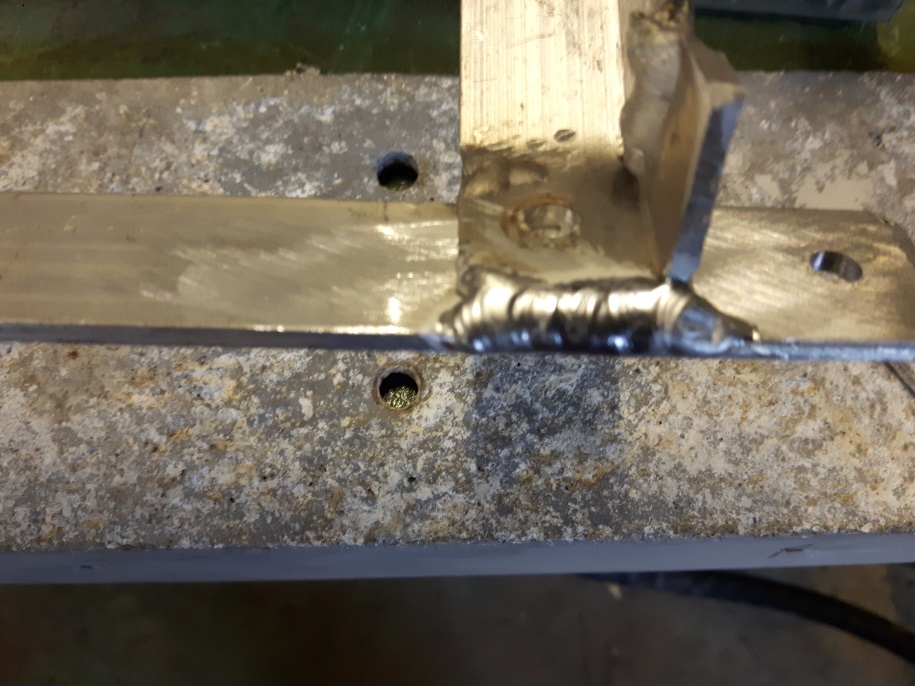

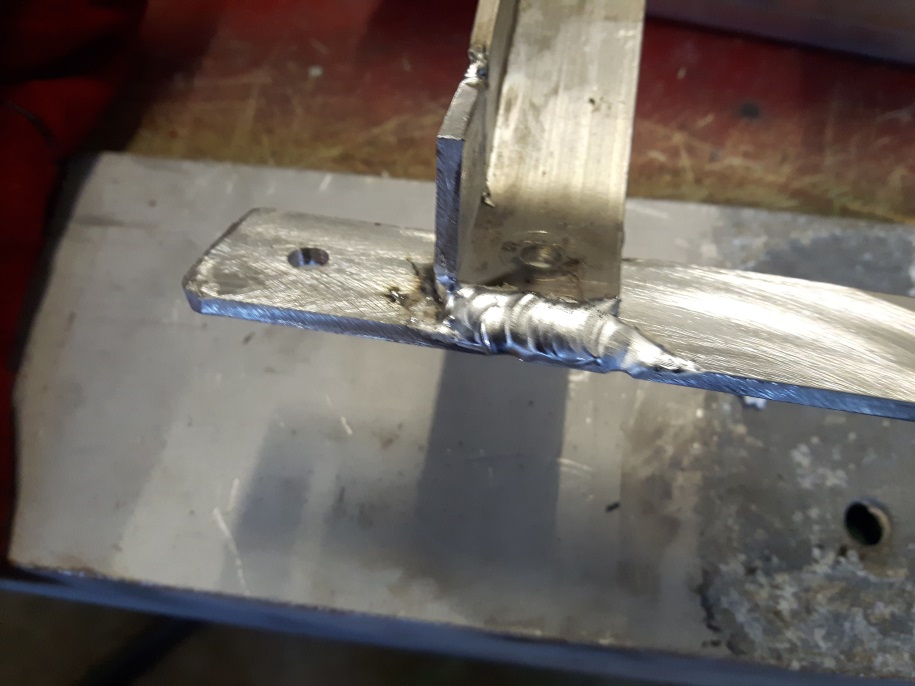

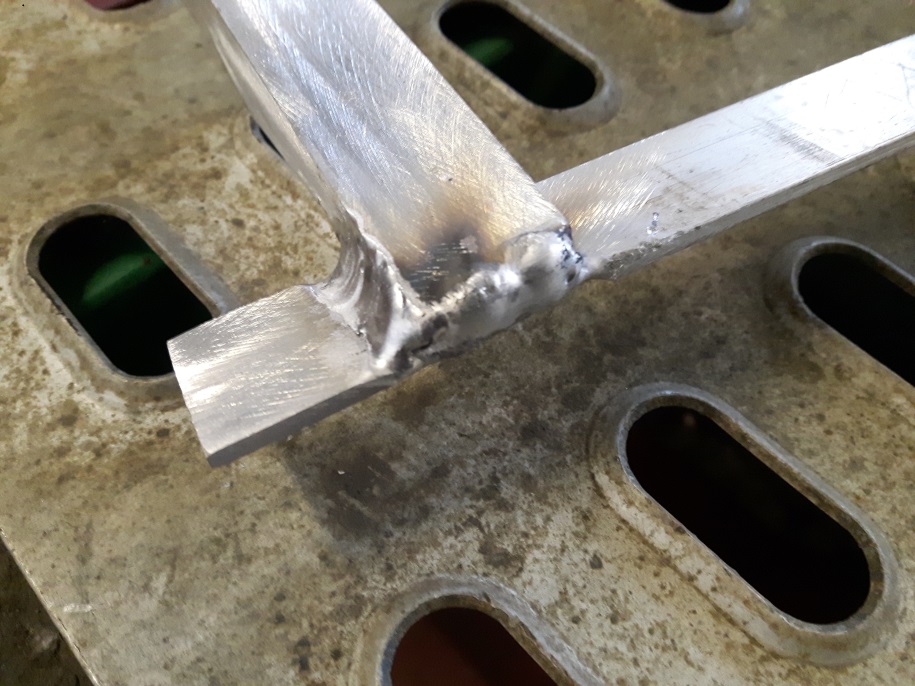

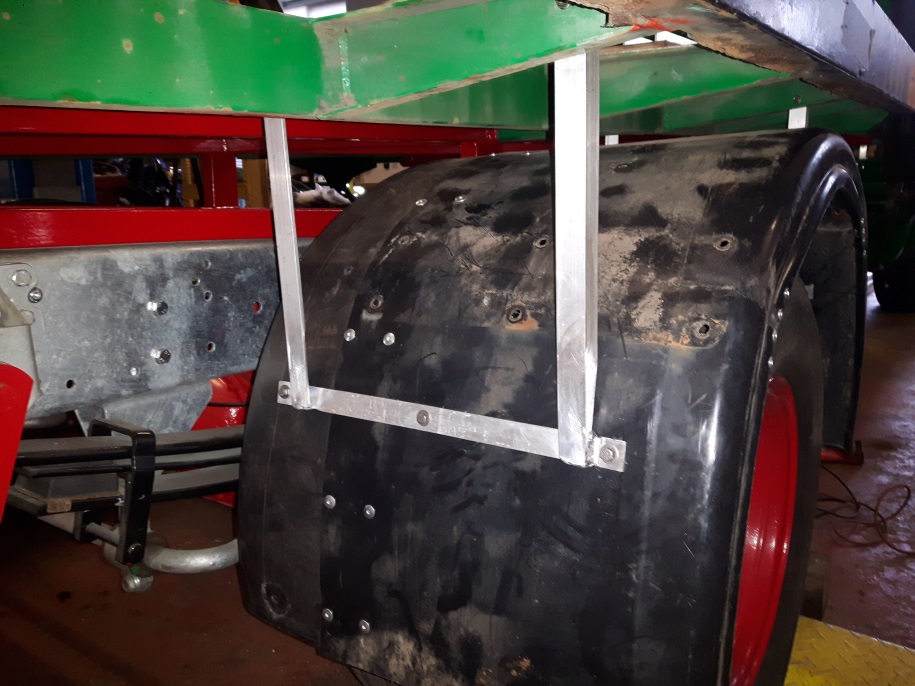

So I learned to tig well this is about 2.5hrs including practice time, Made some brackets to mount rear arches,

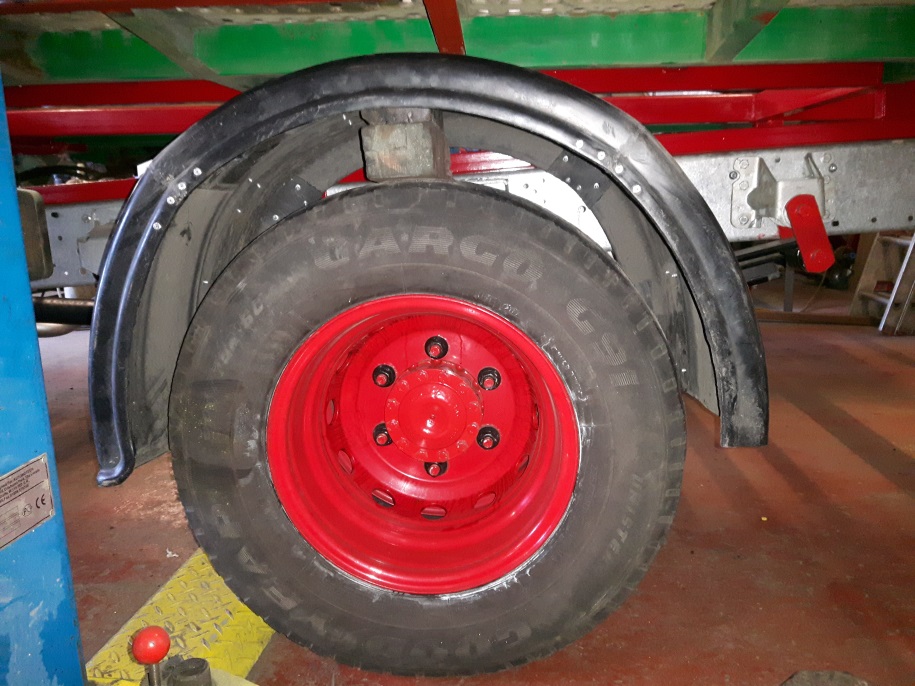

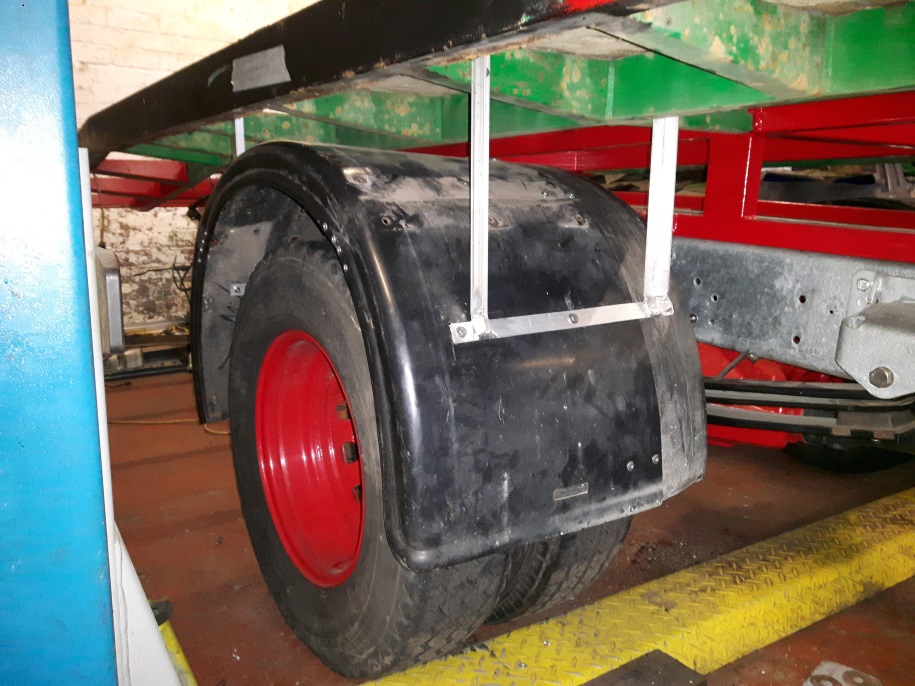

The out come is a mudgaurd mounted,

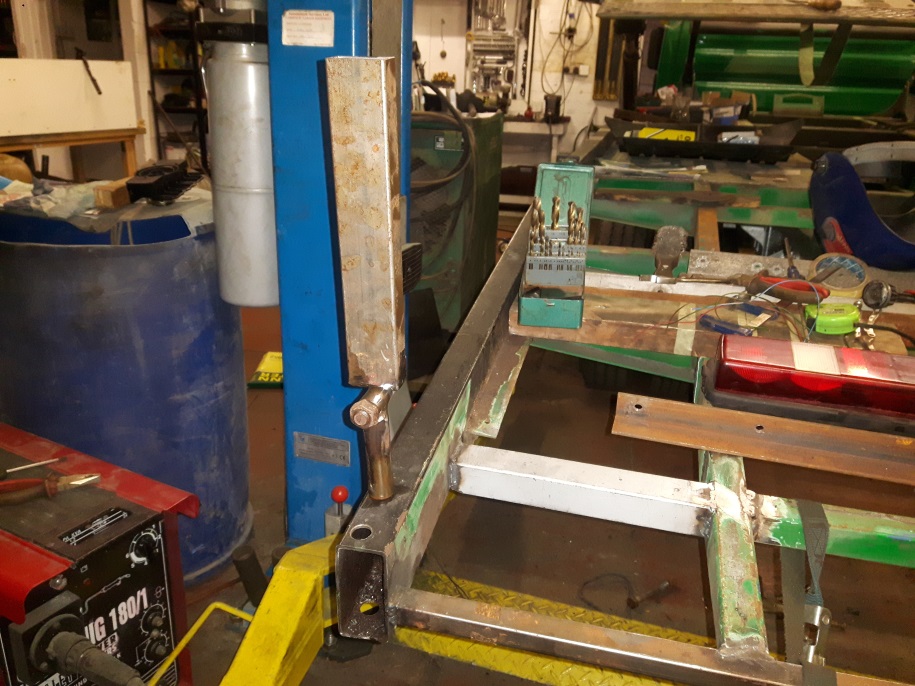

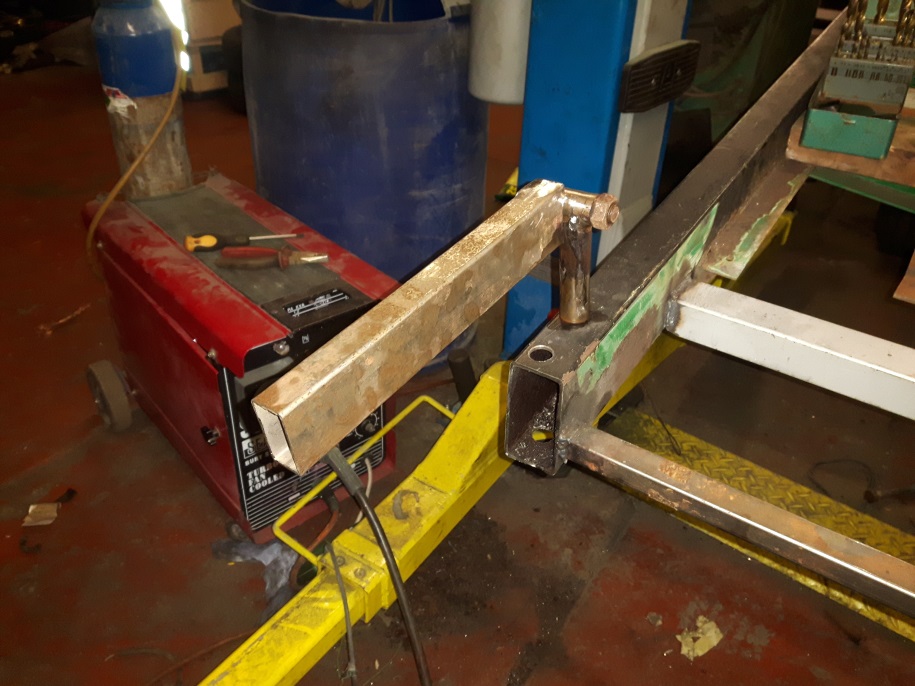

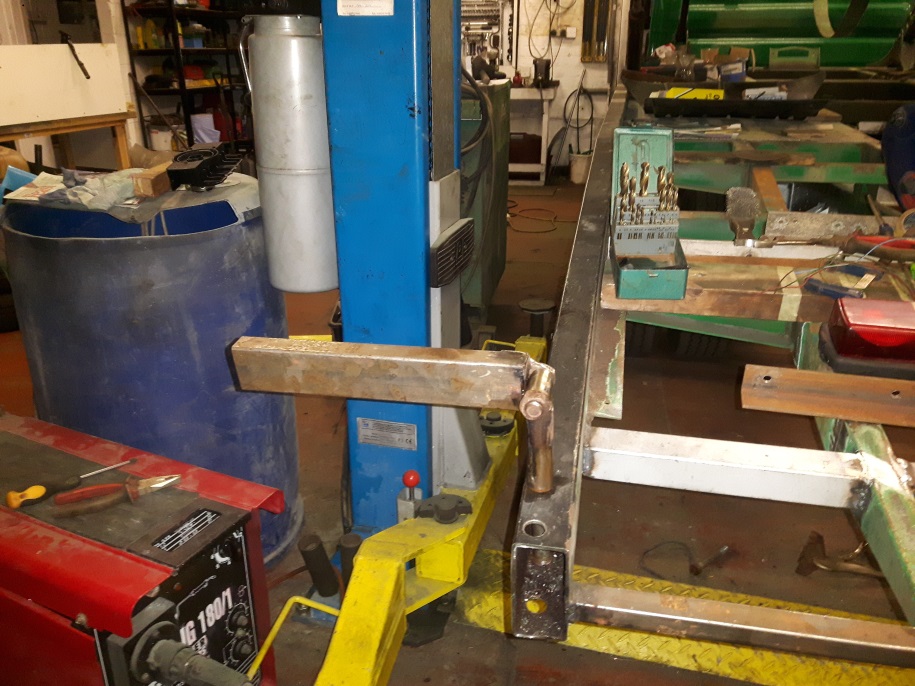

This is my own design Light mounting unit swivel over or round It make car drivers give me more
space when strapping cars on,
The presure is on now must have this on the road last day of July,

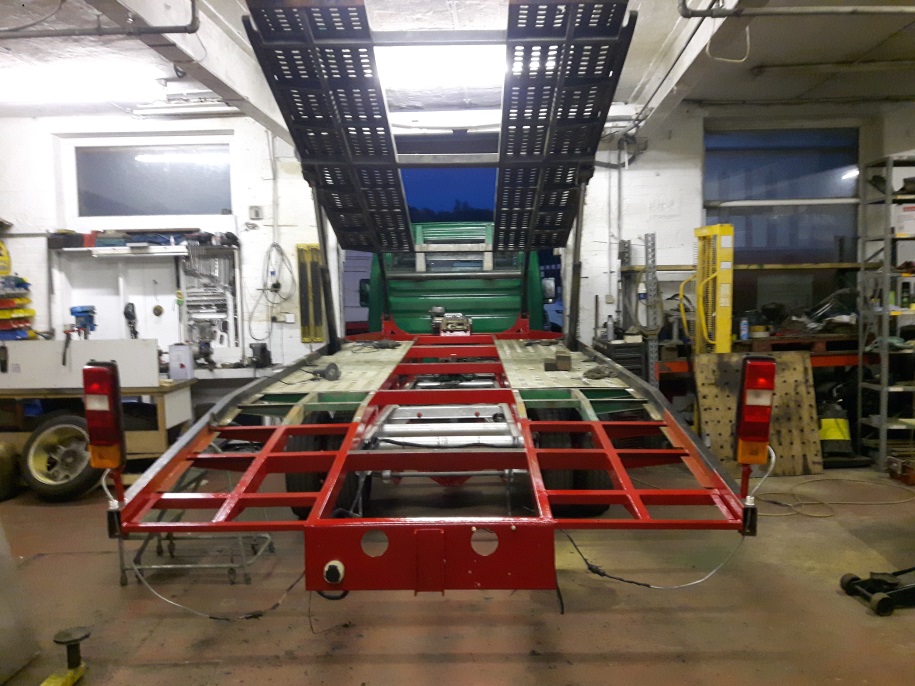

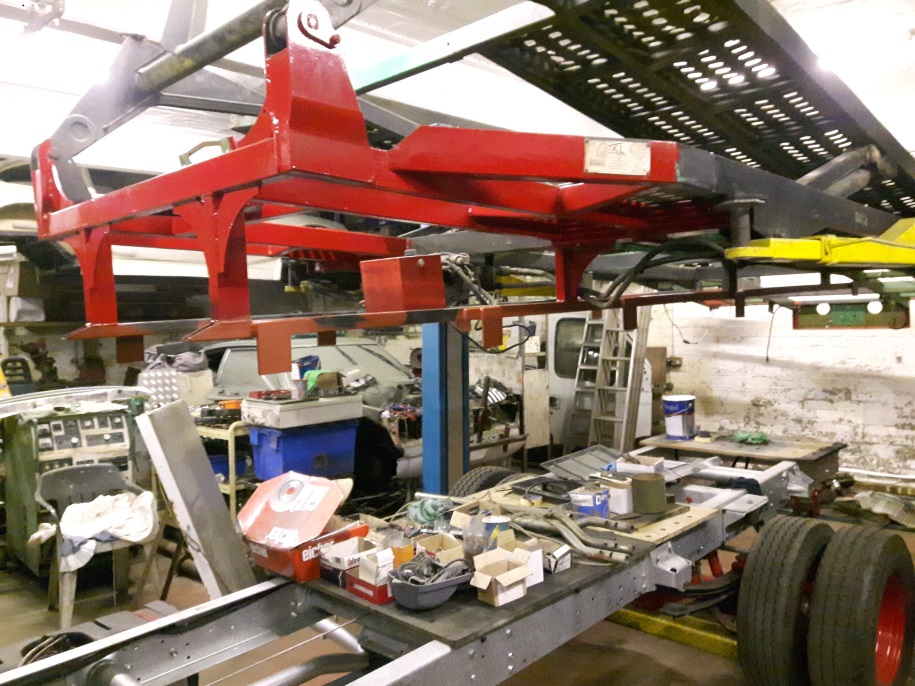

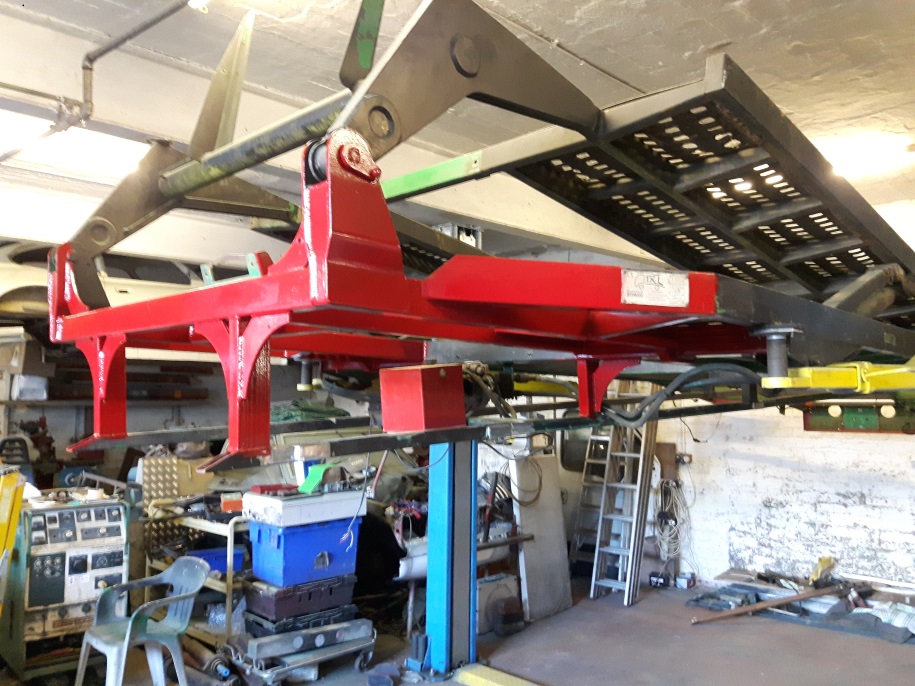

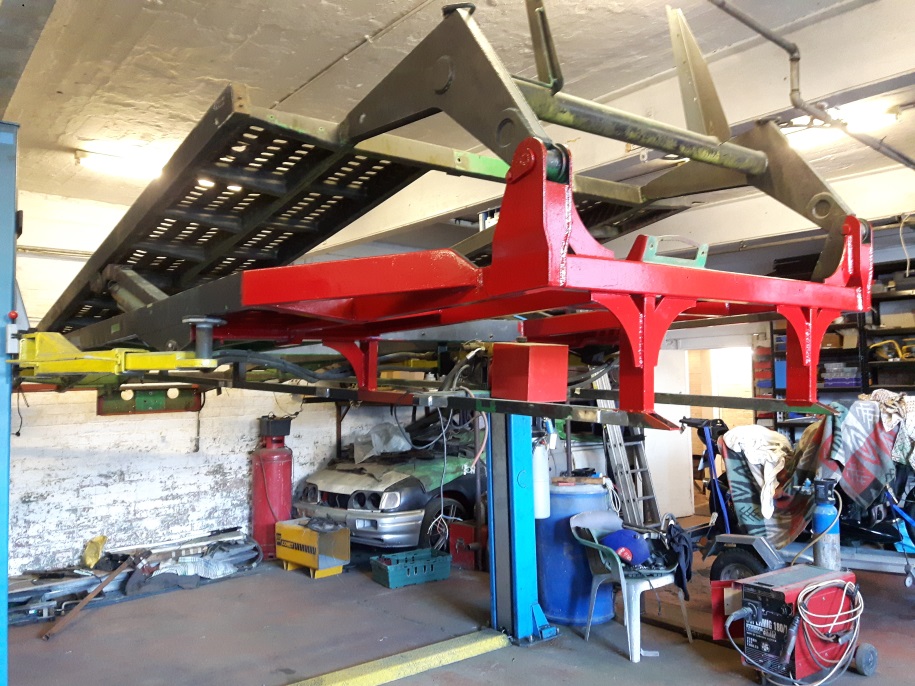

Brackets fitted and a splash of paint,
Mounting lugs welded on

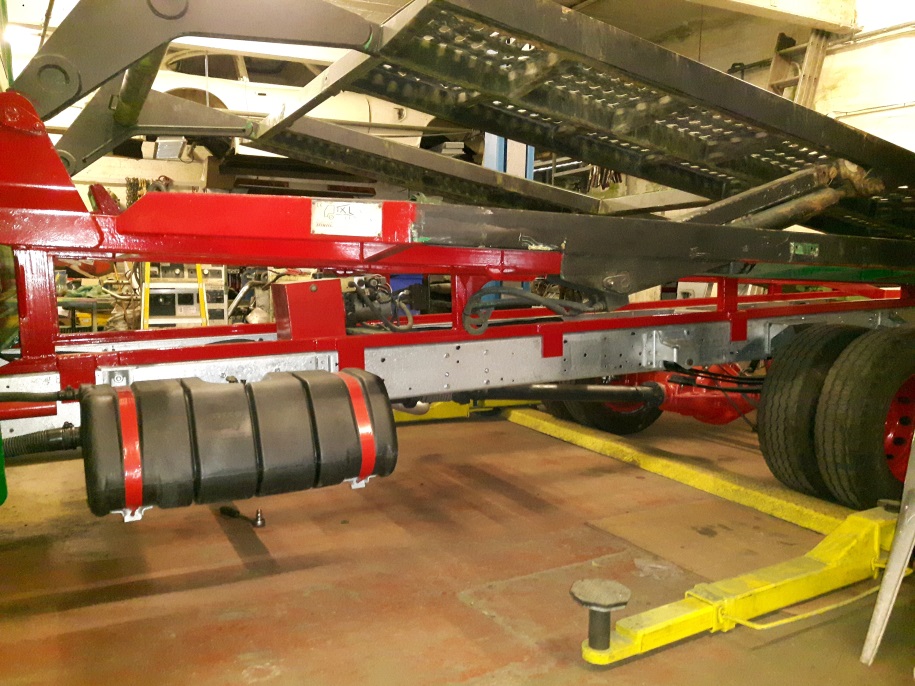

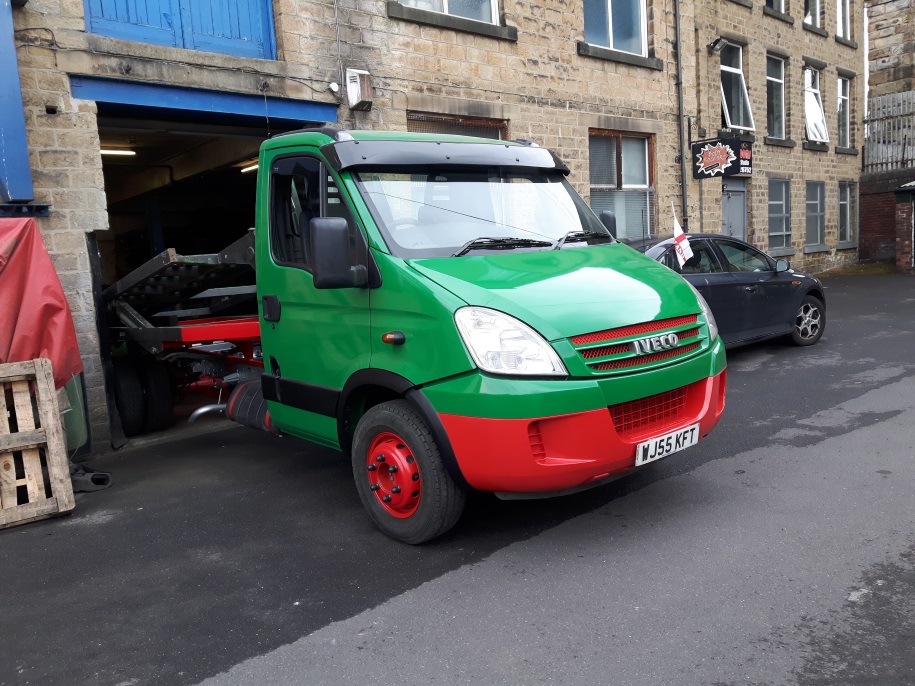

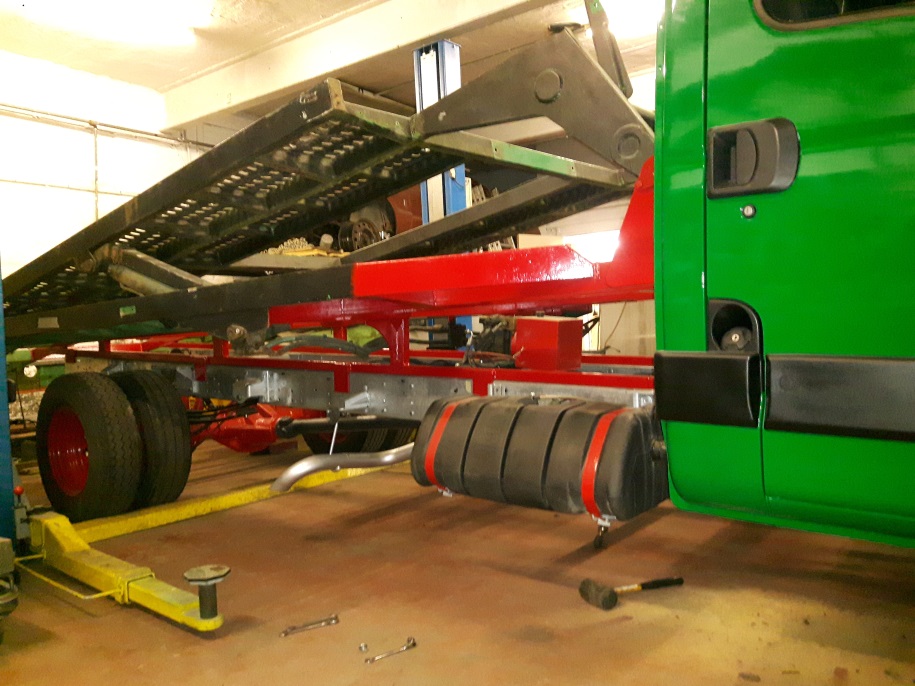

Finaly fitted ready for drilling,

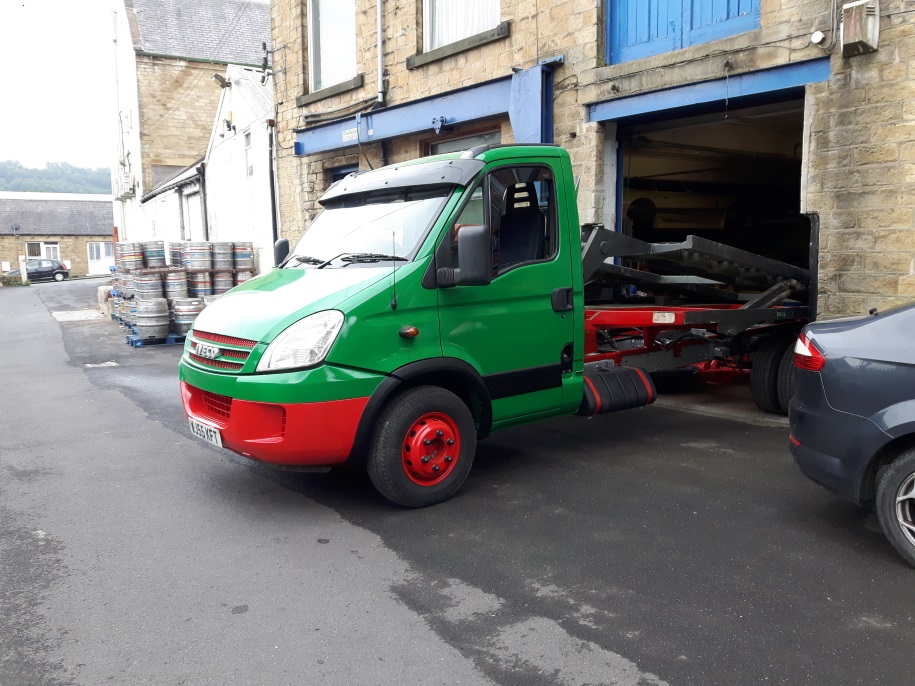

Getting so close now
admin
25 July 2018 - 21:40

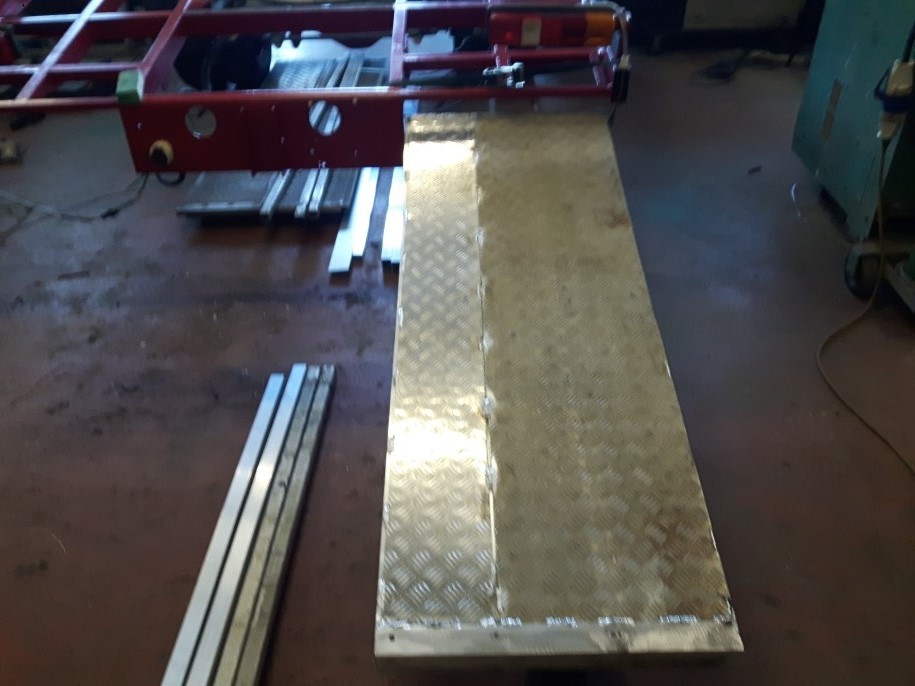

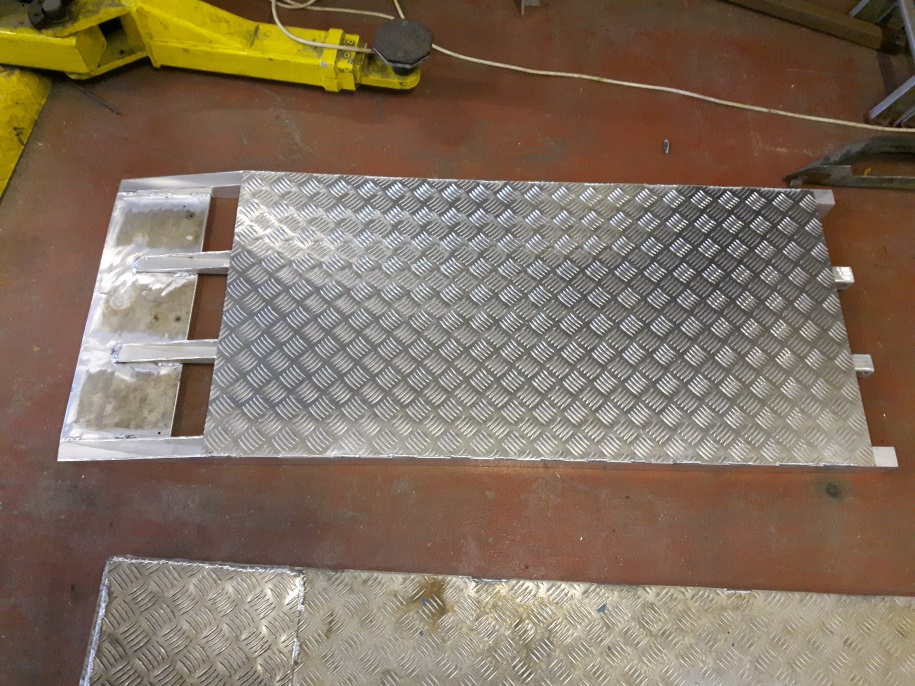

Ramps

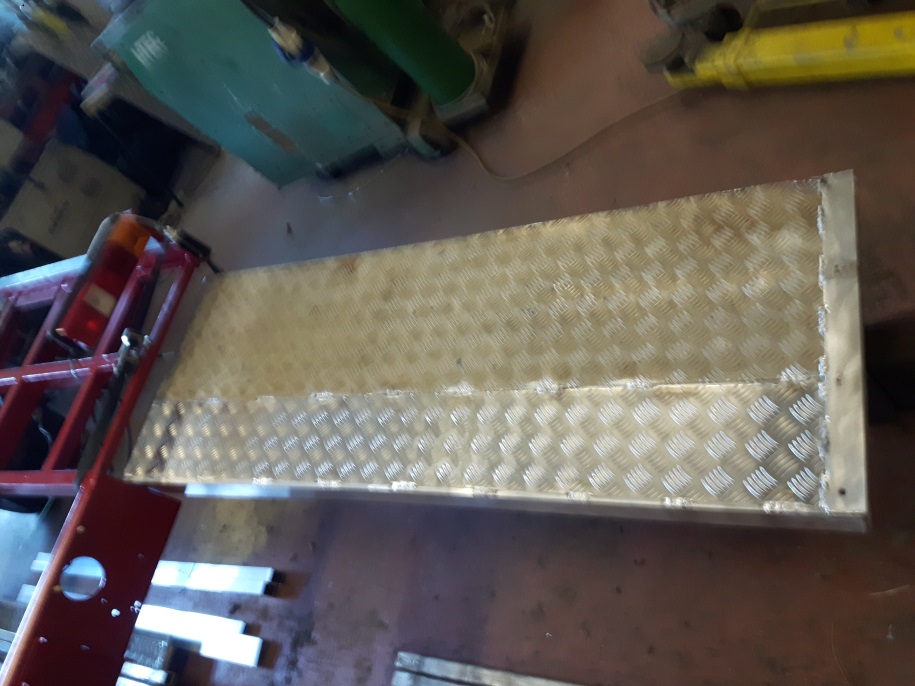

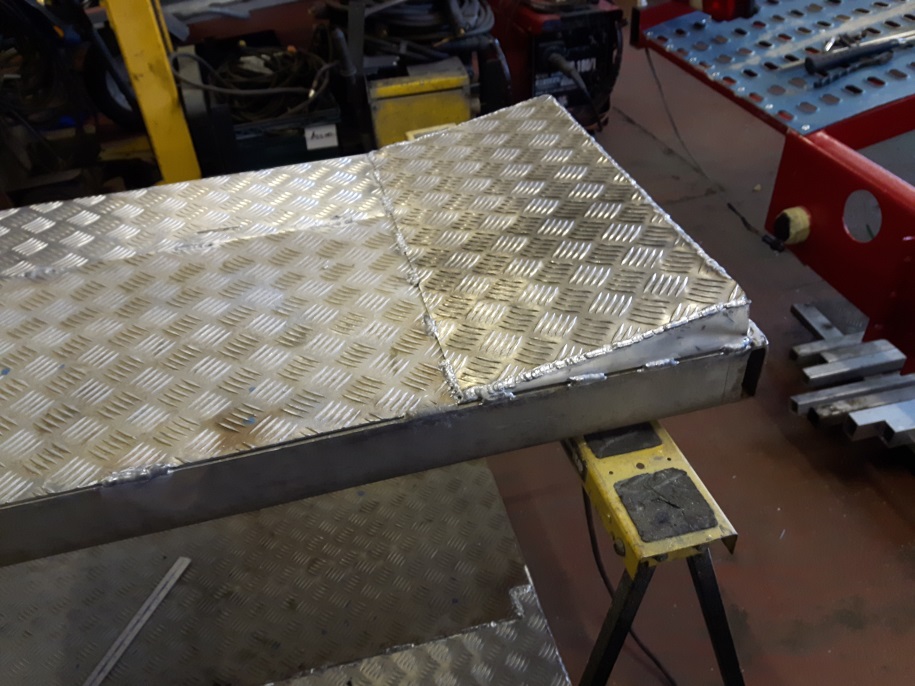

Desided to make the ramps out of aluminium a 2 stage design like the one’s I did for my LDV recovery But wider ! they were great for loading low cars like M3 BMW’s etc.
I’m enjoying learning to TIG weld it’s like gas welding, I use to do and seem’s to have most of the control I was use to, Too lol

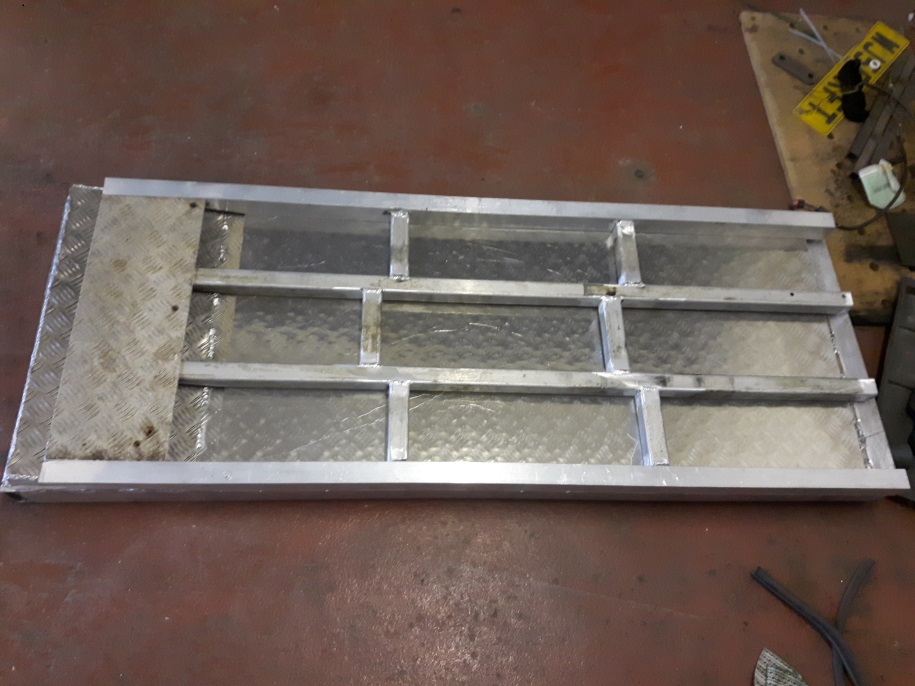

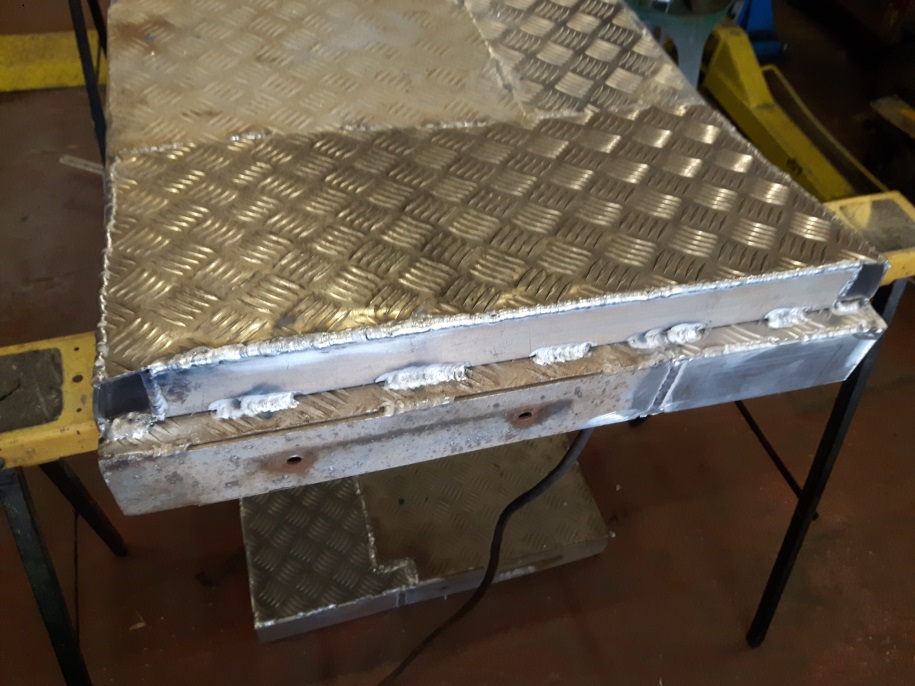

Lower ramps are on there way It’s nice welding new aluminium

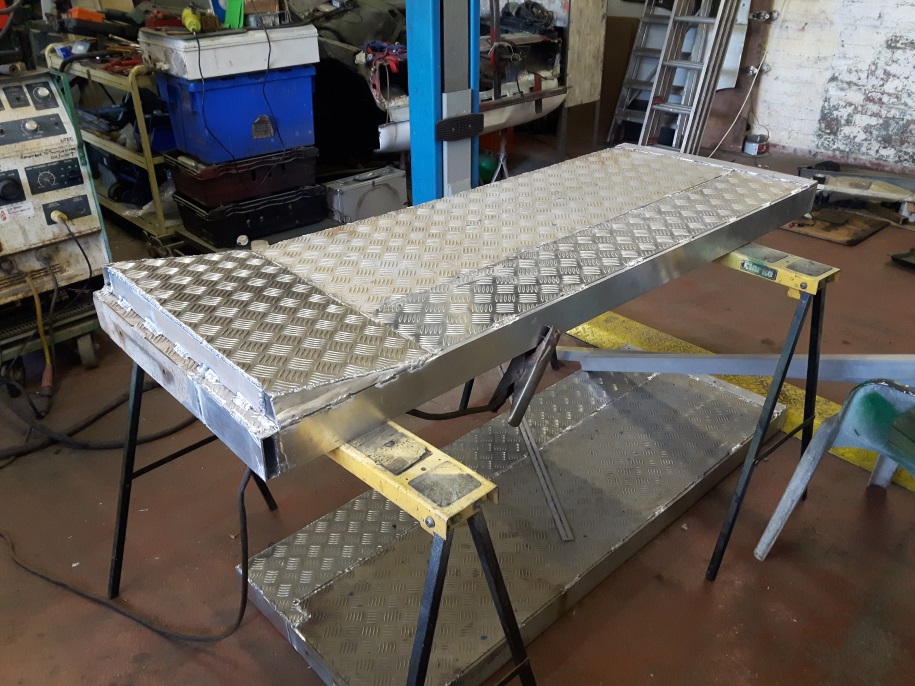

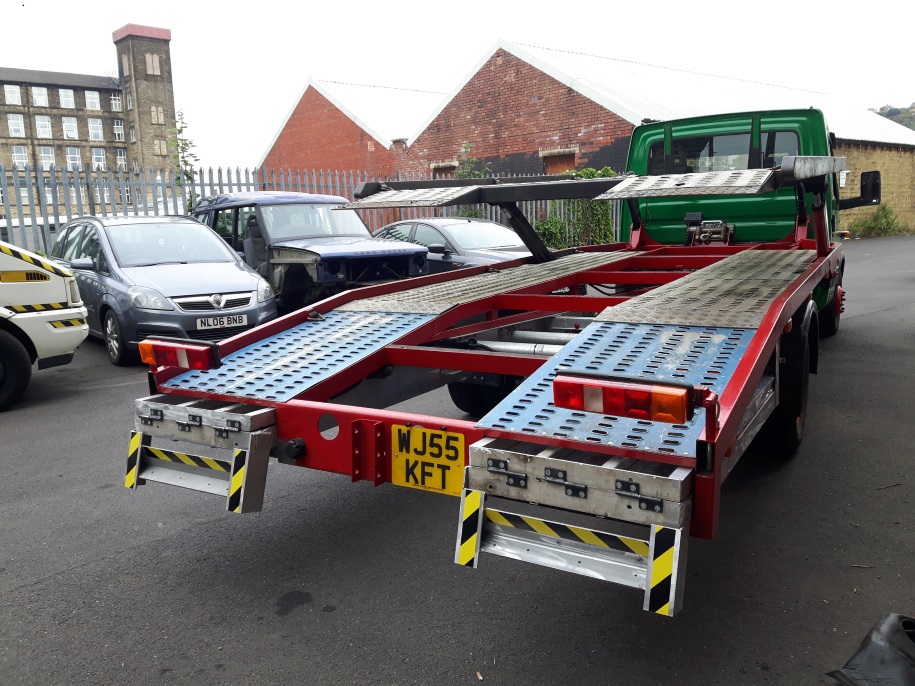

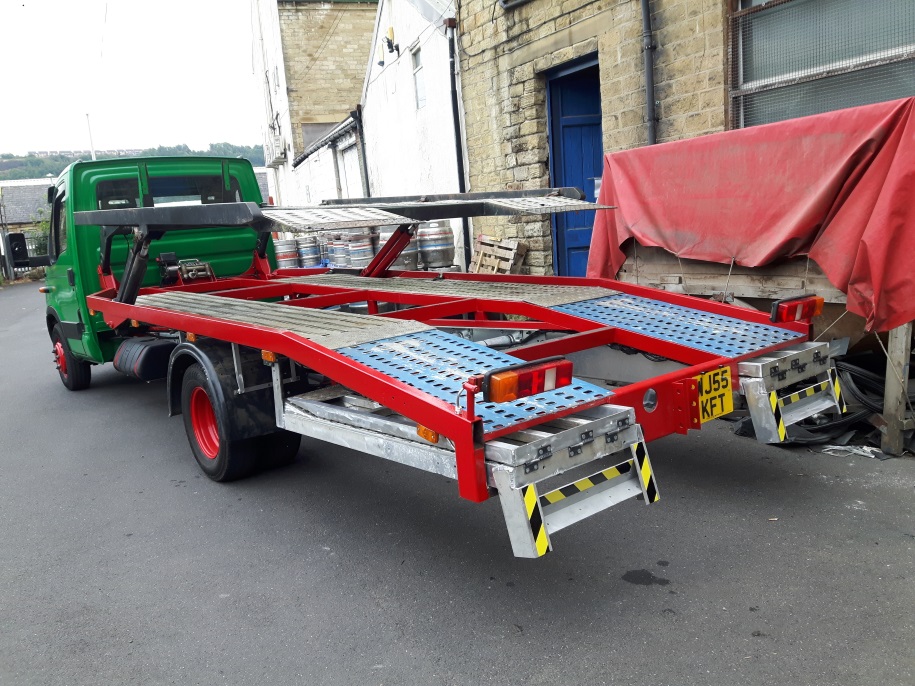

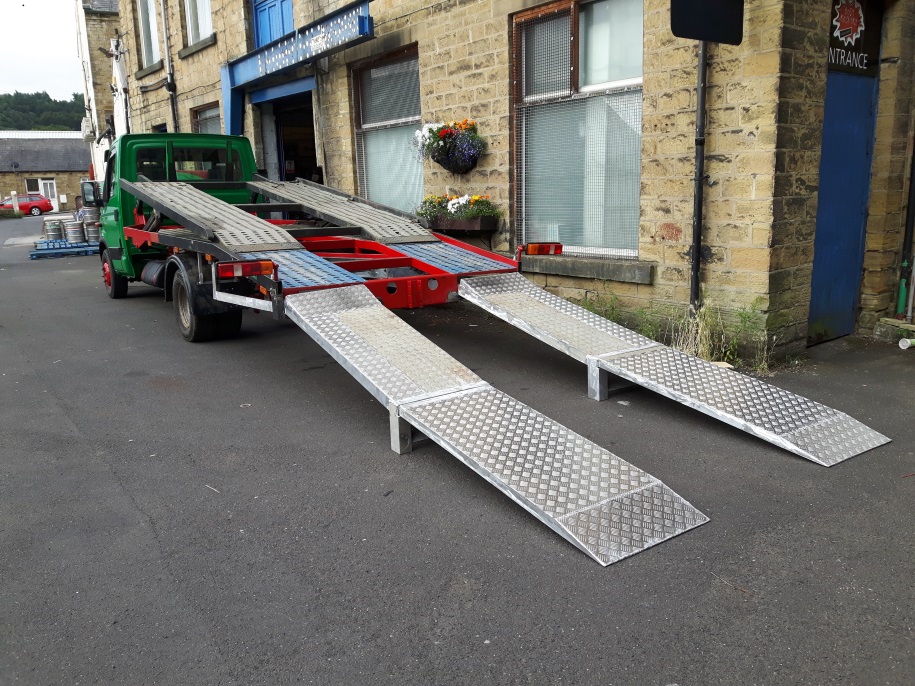

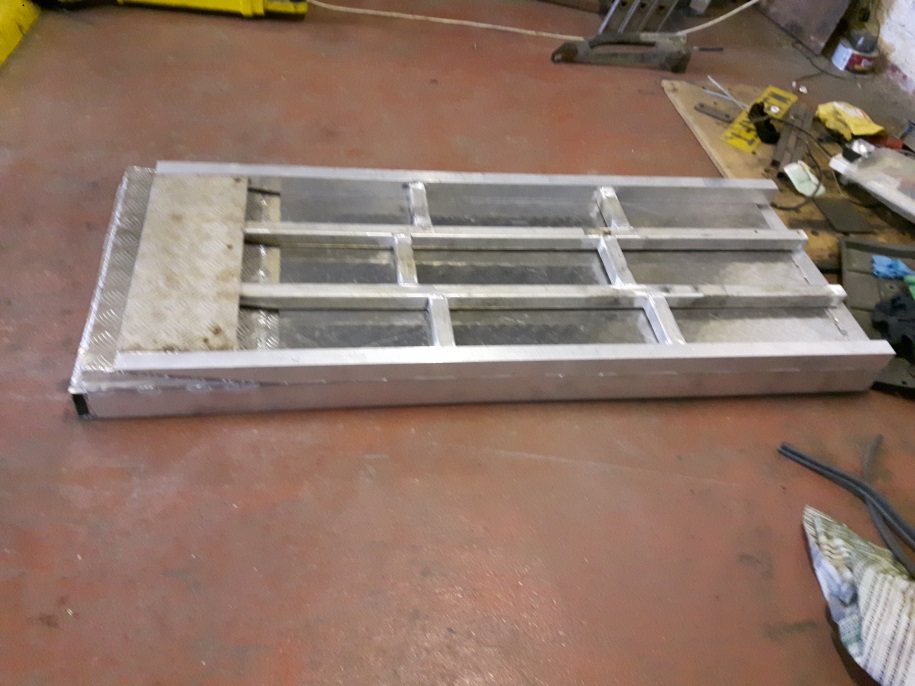

Ramps are finished at last,
admin
29 July 2018 - 21:18
Hydraulics Pack

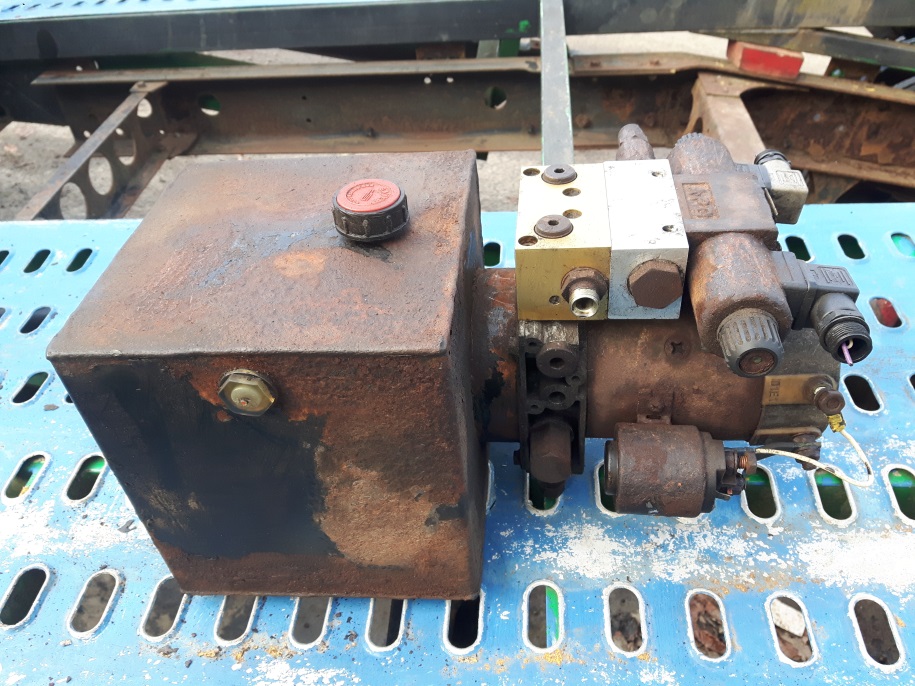

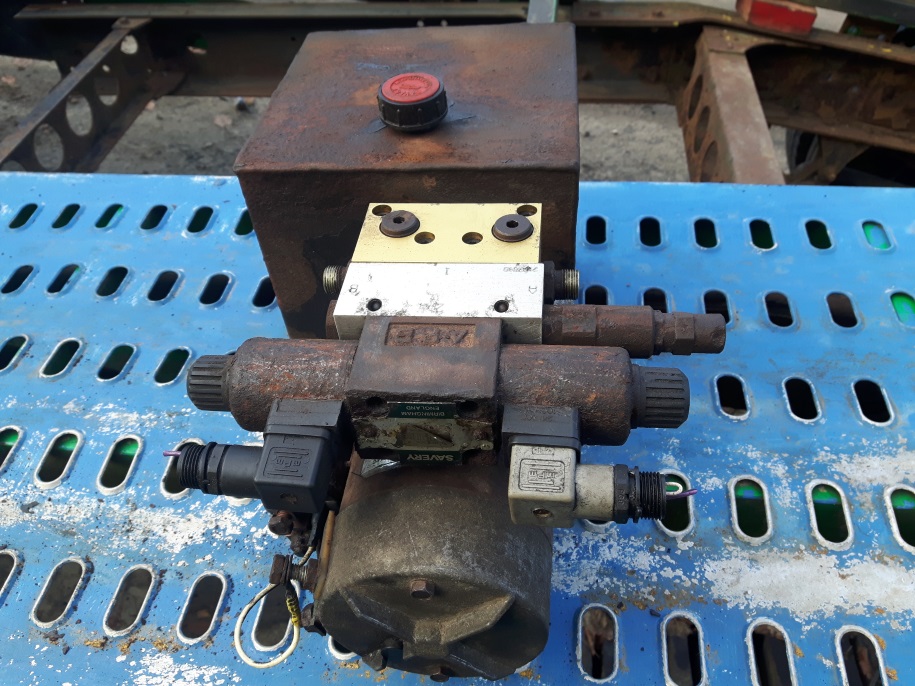

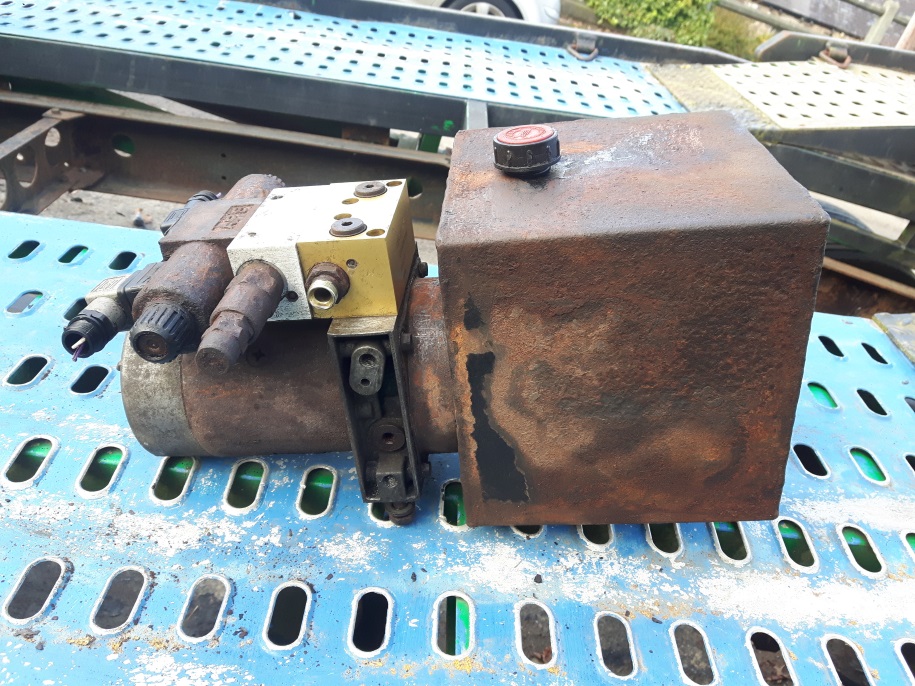

The Hydraulics pack was very rusty and 24v,

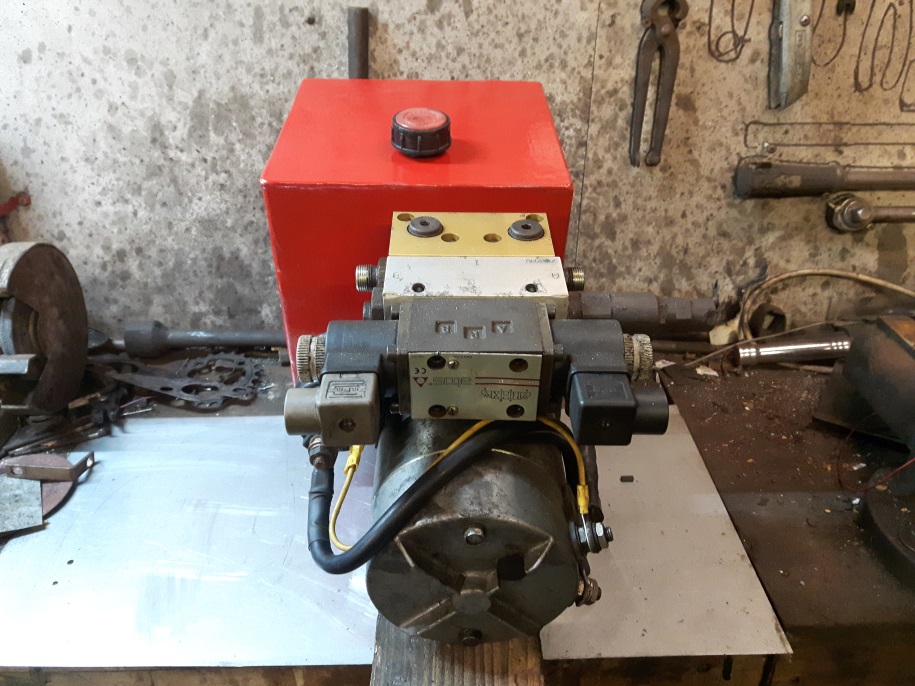

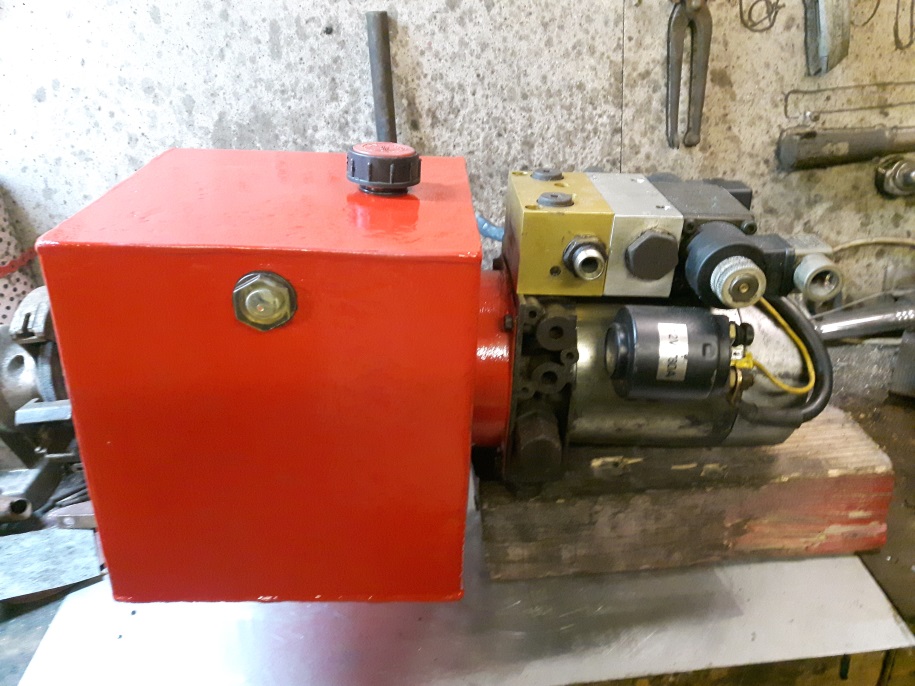

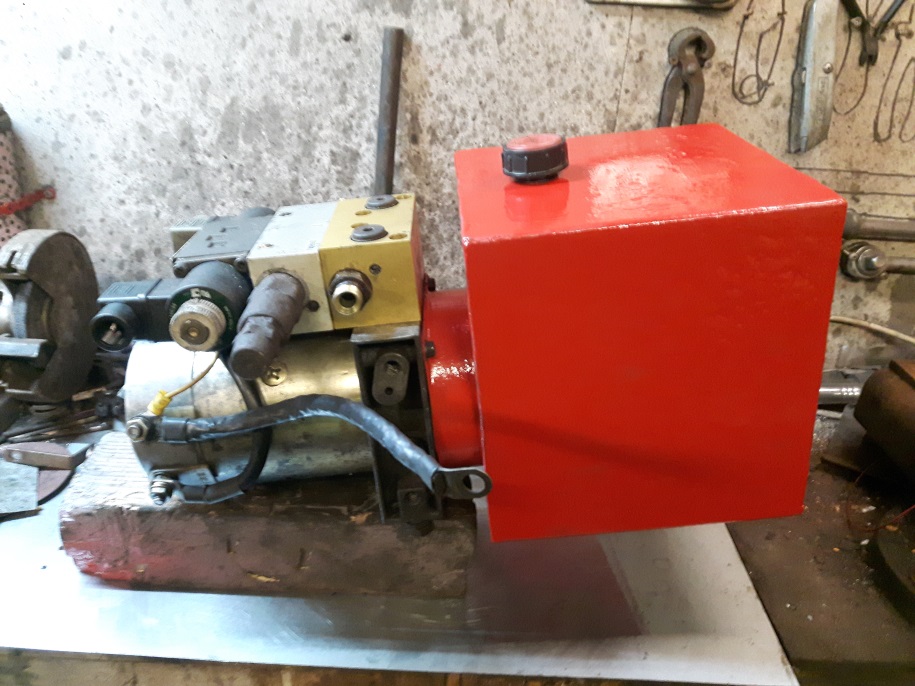

After lots of cleaning and trouble with the motor running backwards finally got it running and ready to fit,
Tested it and it’s quick ! better than the 24v version,
